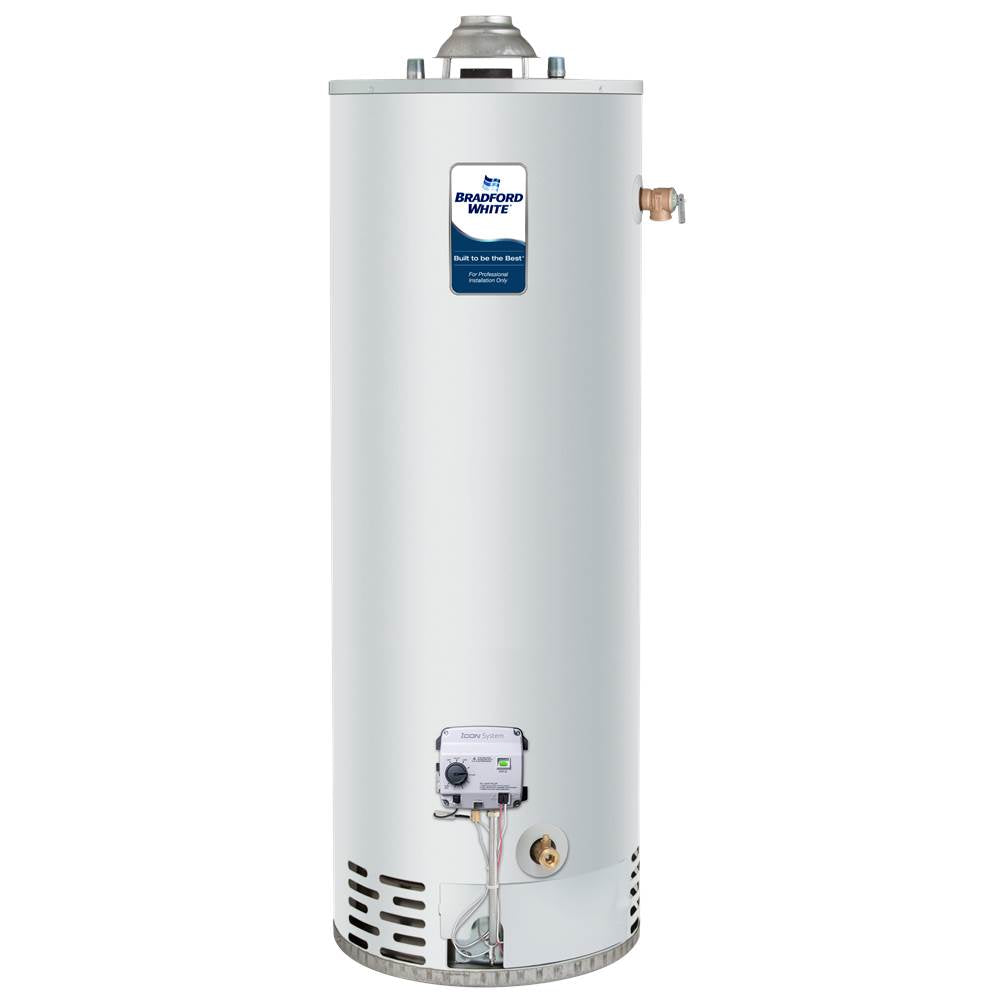

Bradford White RG230T6N-394-600 Defender Safety System 30 Gallon Natural Gas Water Heater

Product Description

The Bradford White RG230T6N-394-600 Defender Safety System is a 30-gallon tall residential natural gas atmospheric vent water heater. It features a 6-year tank warranty and operates at 32,000 BTU/Hr. This model includes a top T and P location. It is designed for indoor placement and adheres to ANSI Z21.10.1-2019/CSA 4.1-2019 safety standards.

• 30-gallon capacity suitable for residential use.
• Operates on natural gas with a 32,000 BTU/Hr input.

Product Highlights

30-gallon natural gas water heater with a 6-year warranty and top T and P location.

Product Information

Standard Information

• Brand: Bradford White
• Manufacturer Part Number: RG230T6N-394-600
• Country of Origin: USA

Technical Specifications

• Product Type: Natural Gas Water Heater
• Diameter: 18"
• Depth: 21.5"
• Capacity (gal.): 30
• Fuel Type: Natural Gas
• Application: Residential
• Center Line Of Water Connections: 8 in
• Doe Rated Storage Capacity: 29
• End Use: Water Heating
• Energy Source: Gas
• First Hour Rating: 60
• Floor To Gas Connection: 13 in
• Floor To Heater Top: 56.25 in
• Floor To Top Water Connections: 34 in
• Floor To Tp Connection: 49.75 in
• Floor To Vent Connection: 59.75 in
• Gas Connection Size: 0.5 in
• Input: 32000 BTU/Hr
• Massachusetts Approved: Yes
• Nitrogen Oxide Emissions Nox: No, it does not comply with jurisdictions having 10ng/J NOx Regulations
• Operating Weight: 355
• Placement: Indoor
• Product Group: Residential Water Heating
• Safety Certification: ANSI Z21.10.1-2019/CSA 4.1-2019
• Tank Warranty: 6 Year
• Turndown Ratio: On/Off
• Uniform Energy Factor: 0.60
• Vent Category: Category I
• Vent Pipe Diameter Exhaust: 3 in
• Water Connection Size: 0.75 in
• Working Pressure Psi: 150 Psi
• Listing: ANSI Z21.10.1-2019/CSA 4.1-2019
• Cec Listed: Yes
• Prop65 Warning: Yes
