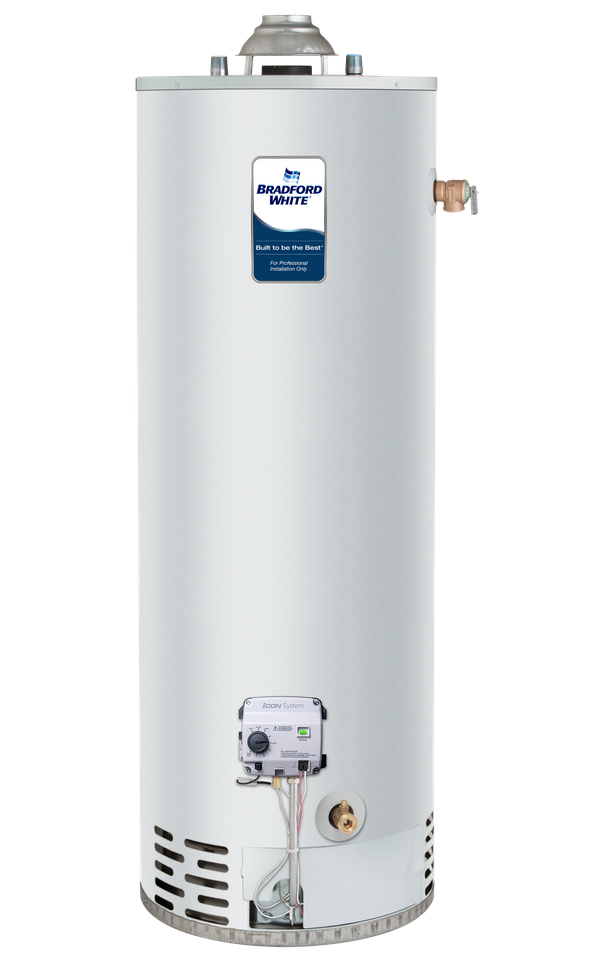

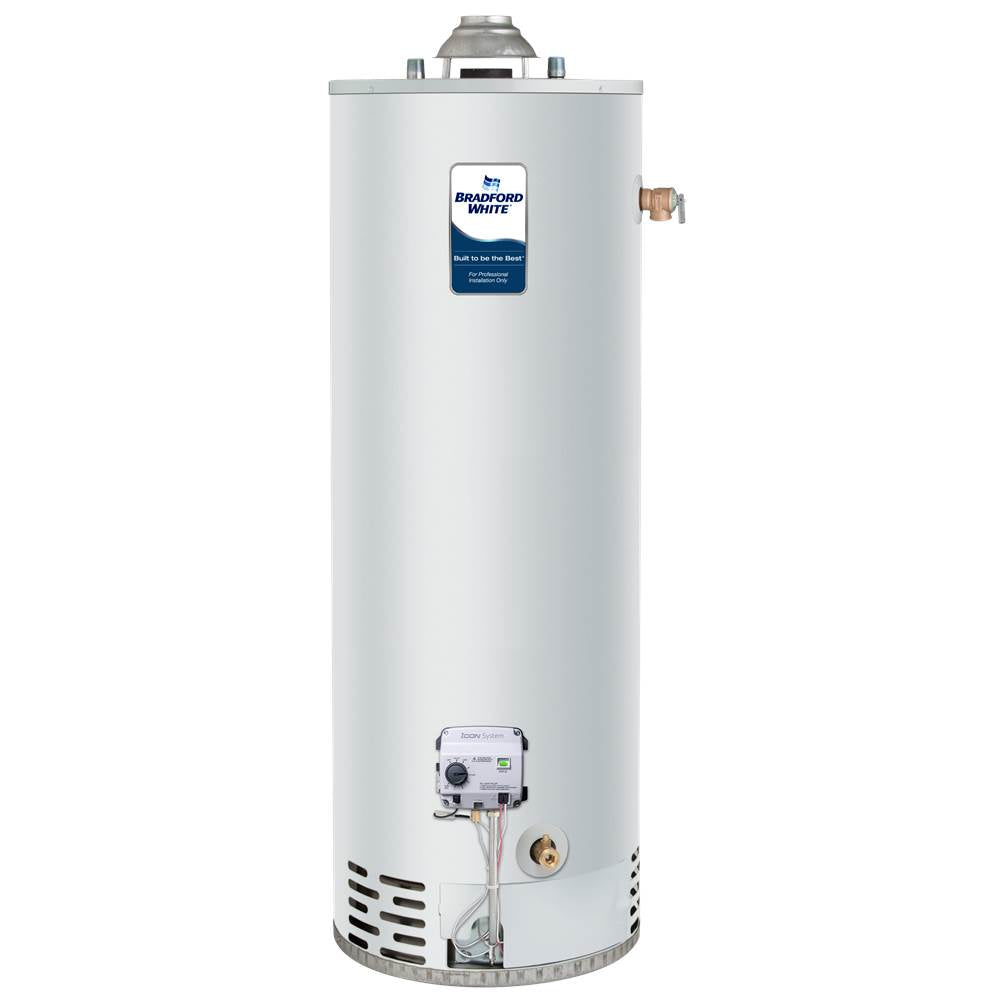

Bradford White RG150T6N-394-600 Gas Water Heater 34000 Btu/hr 50 gal

Product Description

The Bradford White RG150T6N-394-600 is a Defender Safety System 50-gallon tall residential gas water heater designed for natural gas fuel. It features a 34000 Btu/hr heating capacity and an atmospheric vent. The -394 indicates a top T&P location, while the -600 indicates an SIT ICON System gas control.

• 6-Year Tank Warranty
• 34,000 BTU/Hr
• Top T&P Location

Product Highlights

This Bradford White gas water heater is ideal for residential water heating needs, offering a 50-gallon capacity and a 34000 BTU/hr input.

Product Information

Standard Information

• Brand: Bradford White
• Manufacturer Part Number: RG150T6N-394-600

Technical Specifications

• Brand: Bradford White
• Domestic/Import: Domestic
• Energy Factor: 0.63
• Fuel Type: Natural Gas
• Gas Connection: 1/2 in
• Heating Capacity: 34000 Btu/hr
• Ignition Type: Piezo
• Material: Steel
• Pressure Rating: 150 psi
• Recovery Rate: 37 gph at 90 deg F Rise
• Tank Capacity: 50 gal
• Temperature Rating: Up to 160 deg F
• Ultra Low NOx: false
• Vent Size: 3 in
• Vent Type: Atmospheric
• Water Connection: 3/4 in NPT
• Product Type: Natural Gas Water Heater
• Diameter: 20"
• Depth: 23.5"
• Mounting: Floor Mounted
• Listing: ANSI Z21.10.1-2019/CSA 4.1-2019
• Location: Indoor
• Capacity (gal.): 50
• Prop65 Warning: Yes
• Application: Residential
• Cec Listed: Yes
• Center Line Of Water Connections: 8 in
• Doe Rated Storage Capacity: 47
• End Use: Water Heating
• Energy Source: Gas
• First Hour Rating: 75
• Floor To Gas Connection: 13 in
• Floor To Heater Top: 56.63 in
• Floor To Top Water Connections: 37 in
• Floor To Tp Connection: 49.94 in
• Floor To Vent Connection: 60.13 in
• Gas Connection Size: 0.5 in
• Input: 34000 BTU/Hr
• Massachusetts Approved: Yes
• Operating Weight: 536
• Placement: Indoor
• Product Group: Residential Water Heating
• Safety Certification: ANSI Z21.10.1-2019/CSA 4.1-2019
• Trailer Load Factor Drop 53: 104
• Trailer Load Factor Straight 53: 108
• Turndown Ratio: On/Off
• Uniform Energy Factor: 0.63
• Vent Category: Category I
• Vent Pipe Diameter Exhaust: 3 in
• Water Connection Size: 0.75 in
• Working Pressure Psi: 150 Psi
