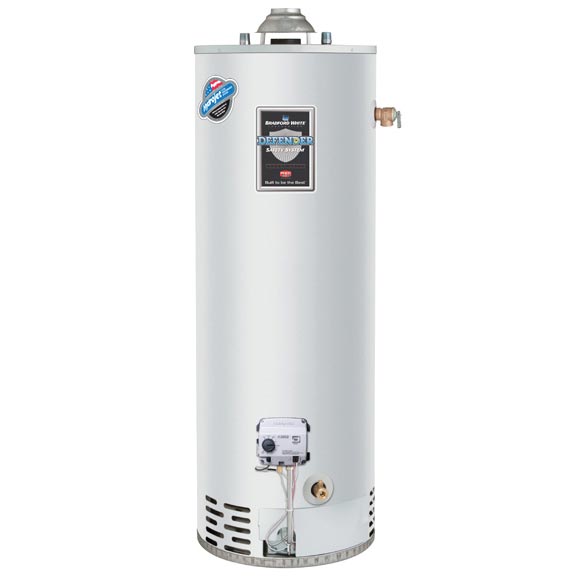

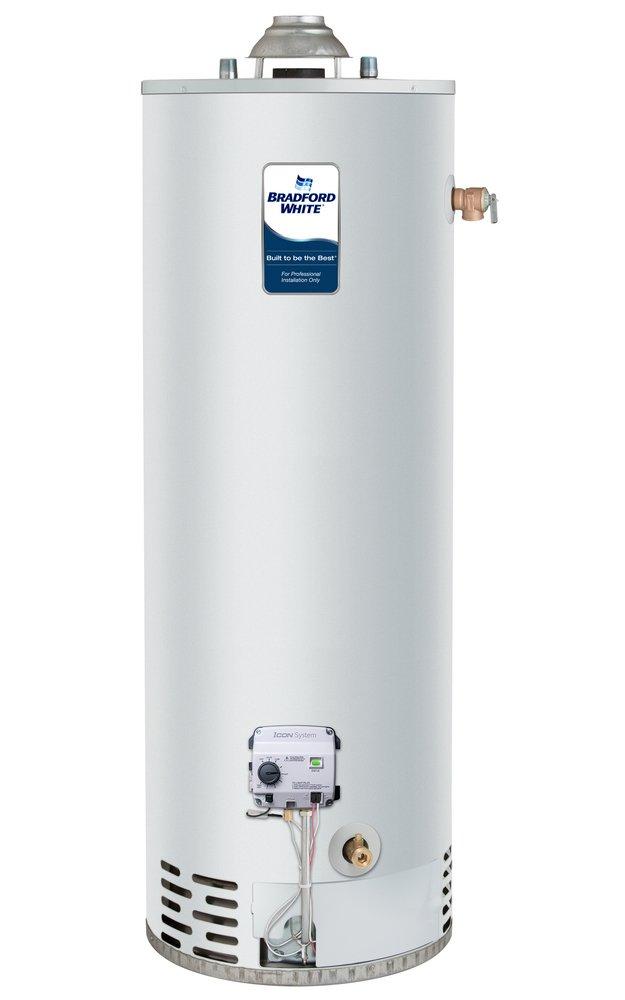

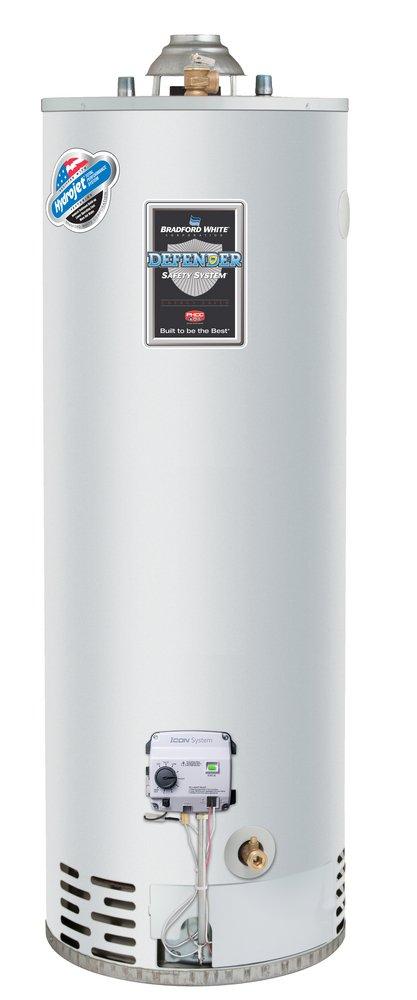

Bradford White RG140T6N-394-500 FVIR Defender Safety System 40 gal Tall 34 MBH Residential Natural Gas Water Heater

Product Description

The Bradford White RG140T6N-394-500 FVIR Defender Safety System is a 40-gallon tall natural gas water heater. Features include the Vitraglas lining, Fir Defender Safety System, and Hydro Jet Total Performance System. This water heater is designed for residential applications and has a heating capacity of 34000 Btu/hr and a recovery rate of 37 gph.

• Includes Vitraglas lining
• Fir Defender Safety System
• Hydro Jet Total Performance System

Product Highlights

Residential natural gas water heater with safety system and total performance system.

Product Information

Standard Information

• Brand: Bradford White
• Manufacturer Part Number: RG140T6N-394-500
• Country of Origin: US

Technical Specifications

• Application: Residential Application
• Country of Origin: US
• Domestic/Import: Domestic
• Energy Factor: 0.59
• Fuel Type: Natural Gas
• Gas Connection: 1/2 in
• Heating Capacity: 34000 Btu/hr
• Ignition Type: Piezo
• Includes: Top Temperature and Pressure Relief Valve
• Mfg Standards/Approvals: AHRI Certified|ANSI Z21.10.1-2014|ASHRAE 90.1b|CEC Listed|CSA 4.1-2014|CSA International (Formerly AGA/CGA)|CSA LLC - Low Lead Compliant|Massachusetts Approved|NAECA Compliant|NSF 372
• Pressure Rating: 150 psi
• Recovery Rate: 37 gph
• Tank Capacity: 40 gal
• Ultra Low NOx: No
• Vent Size: 3 x 4 in
• Vent Type: Atmospheric Vent
• Water Connection: 3/4 in NPT
• AFUE: 80.00 %
• ANSI: ANSI Z21.10.1
• Antimicrobial: Yes
• BTU: 34000
• CEC Compliant: For Sale in CA
• CSA Certified: Yes
• Capacity: 40 gal
• Collection: FVIR Defender Safety System®
• Depth: 21-1/2 in
• Diameter: 18 in
• Drain Valve Material: Brass
• ETL Listed: No
• Emission: Low NOx
• Energy Star Compliant: No
• First Hour Rating: 64
• Height: 61-5/16 in
• Lining of Tank: Vitraglas®
• MBH: 34
• Maximum Temperature: 160
• Power Source: Gas
• Pressure - Maximum: 300 psi
• Recovery 90°F Rise GPH: 37
• Temperature Range: Up to 160 Deg F
• UL Listed: No
• Uniform Energy Factor (UEF): 0.59
• Water Connection Size: 3/4 in
• Water Connections: Top
• Water Heater Capacity Range: 30 - 40 gal
• Water Heater Type: Tall
