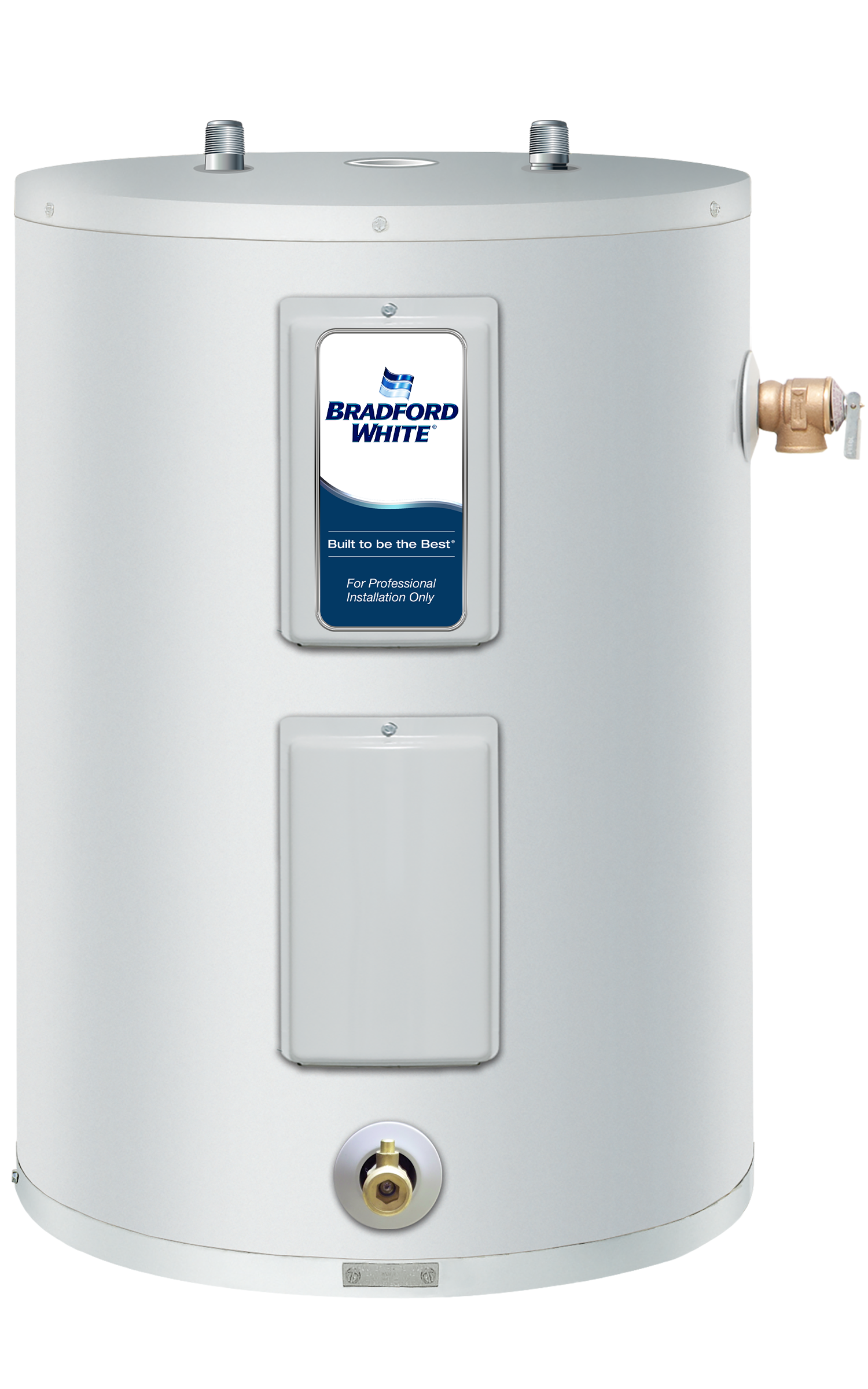

Bradford White RE250L6NCWW 47 Gal Electric Lowboy Water Heater

Product Description

The BRADFORD WHITE RE250L6NCWW is a residential electric lowboy water heater designed for installations where vertical space is limited. Rated at 4.5 kW on 240 volts or 3.5 kW on 208 volts, single phase, this unit holds 47 gallons and carries a 0.94 Uniform Energy Factor (UEF) rating, indicating strong efficiency for its class. The blanketed construction adds insulation around the tank to reduce standby heat loss. Licensed plumbers and HVAC technicians handle installation in residential applications where a standard tall water heater will not fit.

This lowboy water heater is suited for residential use in basements, utility rooms, crawlspaces, or other low-clearance mechanical spaces where headroom restricts a standard-height unit. The 240/208 volt dual-voltage capability allows the unit to operate on either supply voltage, making it adaptable to varying electrical service conditions commonly found in older and newer residential construction alike. The 47-gallon capacity supports typical single-family household demand.

Key Features

• 47-gallon tank capacity in a lowboy form factor for low-clearance installations
• 4.5 kW at 240 volts or 3.5 kW at 208 volts, single phase
• 0.94 UEF rating for efficient standby performance
• Blanketed tank construction reduces standby heat loss
• 6-year tank warranty
• Single-phase electrical supply compatibility

Compatibility

Designed as an OEM residential electric lowboy water heater replacement or new installation unit suitable for single-phase 240 volt or 208 volt electrical service.

Installation Notes

Installation must be performed by a licensed plumber or qualified technician in accordance with local plumbing codes and the National Electrical Code (NEC). Disconnect and lock out electrical power to the circuit before beginning any work. Verify the supply voltage matches the unit rating before energizing, and confirm the circuit breaker and wiring gauge are sized appropriately for the amperage draw. Allow the tank to fill completely with water before applying power to the heating elements to prevent dry-fire damage.

Technical Specifications

• Tank Capacity: 47 gallons
• Power Input: 4.5 kW at 240 volts / 3.5 kW at 208 volts
• Voltage: 240/208 volts
• Phase: Single phase
• Uniform Energy Factor (UEF): 0.94
• Heater Type: Electric lowboy
• Tank Insulation: Blanketed
• Tank Warranty: 6 years
• UPC: 671632794416

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: RE250L6NCWW
