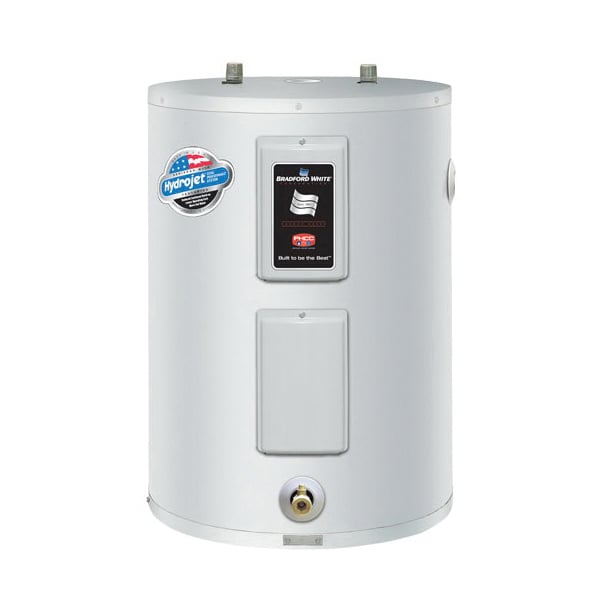

Bradford White RE130L6-1NCWW Electric Water Heater 28 gal Replacement MPN

Product Description

The Bradford White RE130L6-1NCWW electric water heater offers a capacity of twenty-eight gallons and operates at two hundred forty or two hundred eight volts. This unit features a three-quarter inch NPT connection and delivers up to forty-two gallons in the first hour. It is suitable for floor mounting and comes equipped with an automatic thermostat. The tank supports a pressure rating of one hundred fifty psi.

• Simultaneous operation of heating elements
• Fully automatic controls
• Brass drain valve with low restriction

Product Highlights

This electric-resistance water heater is ideal for residential applications where hot water demand is substantial. It’s constructed with durable materials and designed for long-term performance.

Product Information

Standard Information

• Fuel: Electric-Resistance
• Capacity: 28 gallons

Technical Specifications

• Connection Size: 3/4 inches
• Connection Type: NPT
• First Hour Delivery: 42 gallons
• Mounting Type: Floor
• Pressure Rating: 150 psi
• Recovery Rate: 10 to 21 gph
• Thermostat Type: Automatic
• Voltage Rating: 240/208 V
• Domestic/Import: Domestic
• Energy Factor: 0.92
• Heating Element: Screw-In Copper
• Material: Steel
• Phase: Single phase
• Power Rating: 4.5/3.5 kW
• Type: Lowboy
• Water Connection: 3/4 inch NPT
• Temperature Rating: 175 degrees F
