Bradford White M3ST120R5A Magnum Series 119 Gal Vertical Storage Tank

Product Description

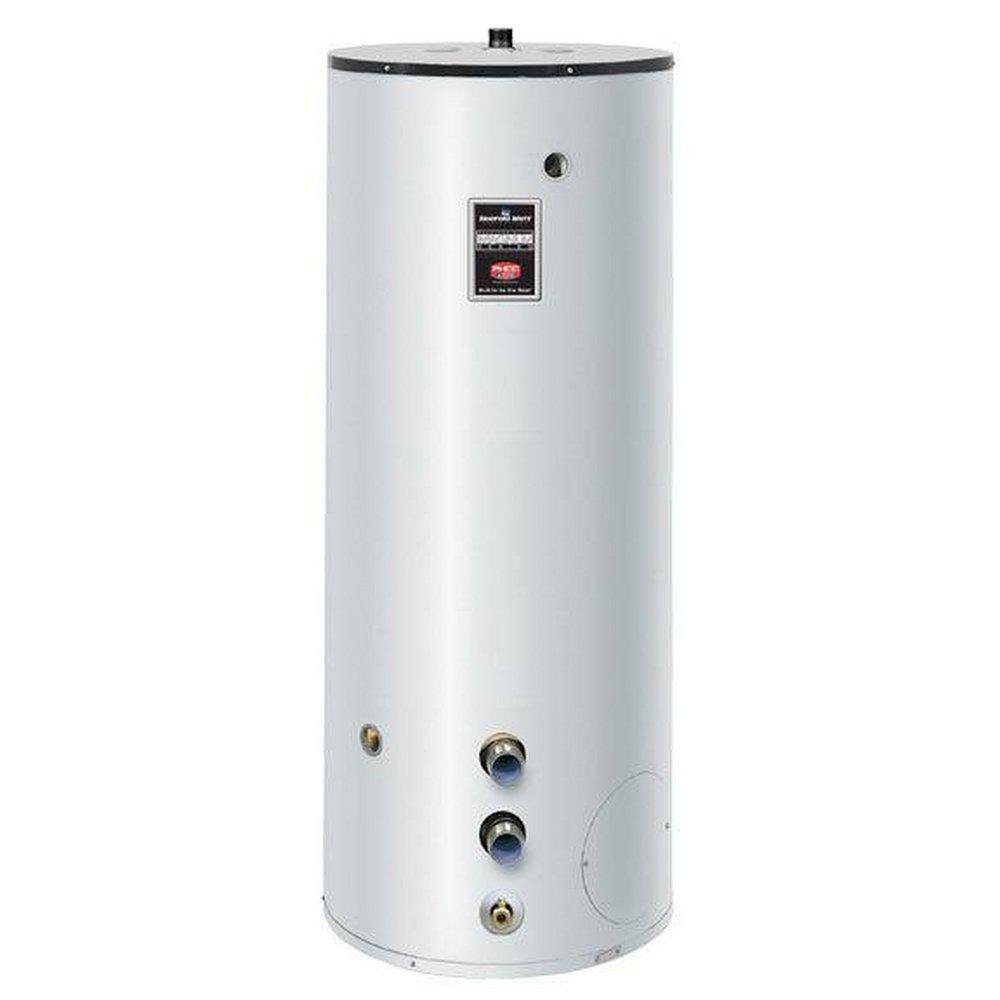

The Bradford White M3ST120R5A is a Magnum Series vertical storage tank designed for commercial needs. This tank has a capacity of one hundred nineteen gallons and can handle pressures up to one hundred fifty pounds per square inch. The jacketed design assists in maintaining temperature, allowing it to effectively store potable water.

• Tank capacity of one hundred nineteen gallons
• Built to withstand pressure of one hundred fifty pounds per square inch
• Jacketed design aids in heat retention and insulation

Product Highlights

This model features Vitraglas lining for corrosion resistance. It includes two magnesium anode rods for enhanced longevity. The tank is also equipped with a rear connection for easy installation and maintenance.

Product Information

Standard Information

• Brand: Bradford White
• MPN: M3ST120R5A

Technical Specifications

• Diaphragm Material: Vitraglas
• Height: sixty-two and one half inches
• Inlet/Outlet Connection: two-inch NPT
• Material: Steel
• Pressure: one hundred fifty PSI
• Product Type: Commercial Jacketed ASME
• Tank Capacity: one hundred nineteen gallons
• Tank Dimensions: twenty-eight inches by sixty-two and one half inches
• Temperature: one hundred eighty degrees Fahrenheit
• Width: twenty-eight inches
