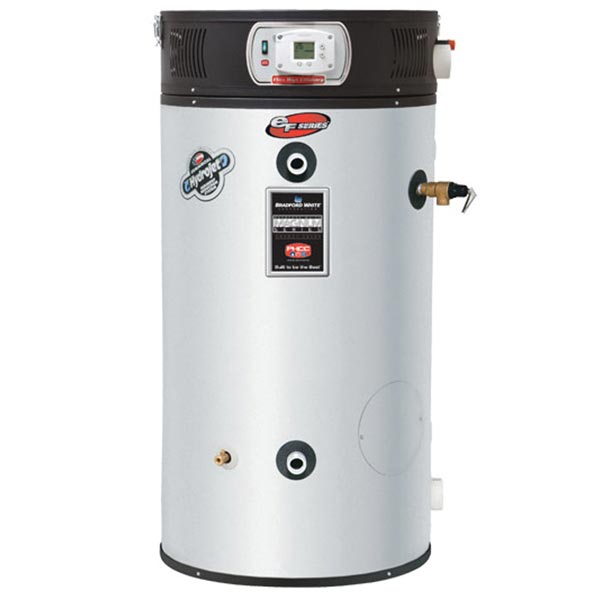

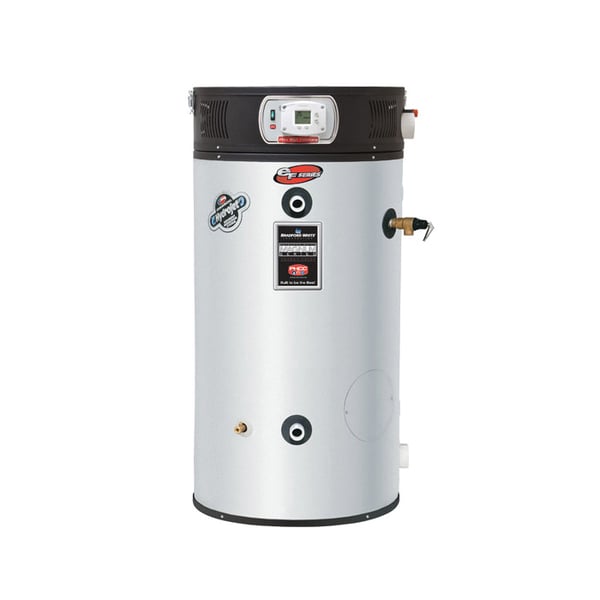

Bradford White EF-60T-150E-3N-2 eF Series Gas Water Heater 60 gal 150000 Btu/hr

Product Description

The Bradford White EF-60T-150E-3N-2 eF Series Gas Water Heater features a 60-gallon tank and 150000 Btu/hr heating capacity, designed for natural gas fuel with a power direct vent. It is suitable for commercial applications and includes a temperature and pressure relief valve. The water heater has a Vitraglas finish and complies with ultra-low NOx requirements.

• Thermal efficiency up to 99.1%
• Features ICON HD for temperature control, diagnostics, and ignition functions with a digital LCD display.
• Equipped with a factory-installed Hydrojet sediment reduction system.

Product Highlights

Ultra high efficiency gas water heater with flexible venting and quiet operation. Complies with ultra low NOx requirements.

Product Information

Standard Information

• Brand: Bradford White
• Manufacturer Part Number: EF-60T-150E-3N-2
• Country of Origin: US

Technical Specifications

• Application: Commercial Applications
• ASME(Yes/No): No
• Country of Origin: US
• Dimensions: 28-1/4 in Dia x 56-3/8 in H
• Domestic/Import: Domestic
• Energy Efficiency: 93 %
• Finish: Vitraglas
• Fuel Type: Natural Gas
• Gas Connection: 3/4 in
• Heating Capacity: 150000 Btu/hr
• Ignition Type: Direct Spark
• Includes: Temperature and Pressure Relief Valve
• Material: Steel
• Mfg Standards/Approvals: AHRI Certified|ANSI Z-21.10.3|ASHRAE 90.1b|CEC Listed|CSA LLC-Low Lead Content|CSA International (Formerly AGA/CGA)|NSF 372|Ultra Low NOx Compliant
• Pressure Rating: 150 psi
• Recovery Rate: 740 gph at 30 deg F Rise
• Series: eF Series
• Tank Capacity: 60 gal
• Temperature Rating: 180 deg F
• Ultra Low NOx: Yes
• Vent Size: 3 in
• Vent Type: Power Direct
• Water Connection: 1-1/2 in NPT
• Altitude: 3048 m
• Ignition System: Electronic
• Power Rating: 43.9 kW
• Efficiency: 97 %
• Energy Star Compliant: Yes
• Connection Type: NPT
• Model: EF60T150
