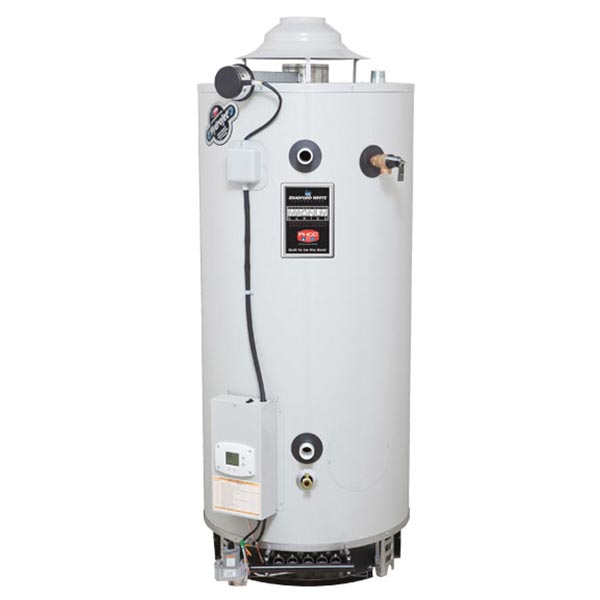

Bradford White D-80T-199E-3N Flue Damper Gas Water Heater 80 gal Tank 199999 Btu/hr

Product Description

The BRADFORD WHITE D-80T-199E-3N is a flue damper gas water heater with a heating capacity of 199999 Btu/hr and a tank capacity of 80 gallons. It features an intelligent design that combines temperature control, diagnostic codes, and system ignition functions into a single control board with a digital LCD display. It also has an automatic flue damper.

• Features ICON HD intelligent design combines temperature control, diagnostic codes and system ignition functions into a single control board with a digital LCD display
• Automatic flue damper reduces stand-by loss, saving gas consumption and improving overall efficiency
• Factory installed Hydrojet sediment reduction system helps prevent sediment build up in the tank

Product Highlights

This gas water heater is designed for commercial applications and includes a temperature and pressure relief valve. It has a Vitraglas lining and non-CFC foam insulation.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: D-80T-199E-3N
• Country of Origin: US

Technical Specifications

• Application: Commercial Applications
• ASME(Yes/No): No
• Country of Origin: US
• Domestic/Import: Domestic
• Energy Efficiency: 80 %
• Finish: Vitraglas
• Fuel Type: Natural Gas
• Gas Connection: 3/4 in
• Heating Capacity: 199999 Btu/hr
• Ignition Type: Electronic
• Includes: Temperature and Pressure Relief Valve
• Material: Steel Surface
• Mfg Standards/Approvals: AHRI Certified|ANSI Z-21.10.3|ASME HLW Standard|ASHRAE 90.1b|CSA LLC-Low Lead Content|CSA International (Formerly AGA/CGA)|CEC Listed|NSF Approved|North Carolina Code Compliant
• Pressure Rating: 150 psi
• Recovery Rate: 436 gph at 40 deg F Rise
• Tank Capacity: 80 gal
• Temperature Rating: 180 deg F
• Type: Commercial, Energy Saver, Heavy Duty
• Ultra Low NOx: No
• Vent Size: 6 in
• Vent Type: Atmospheric
• Water Connection: 1-1/2 in
