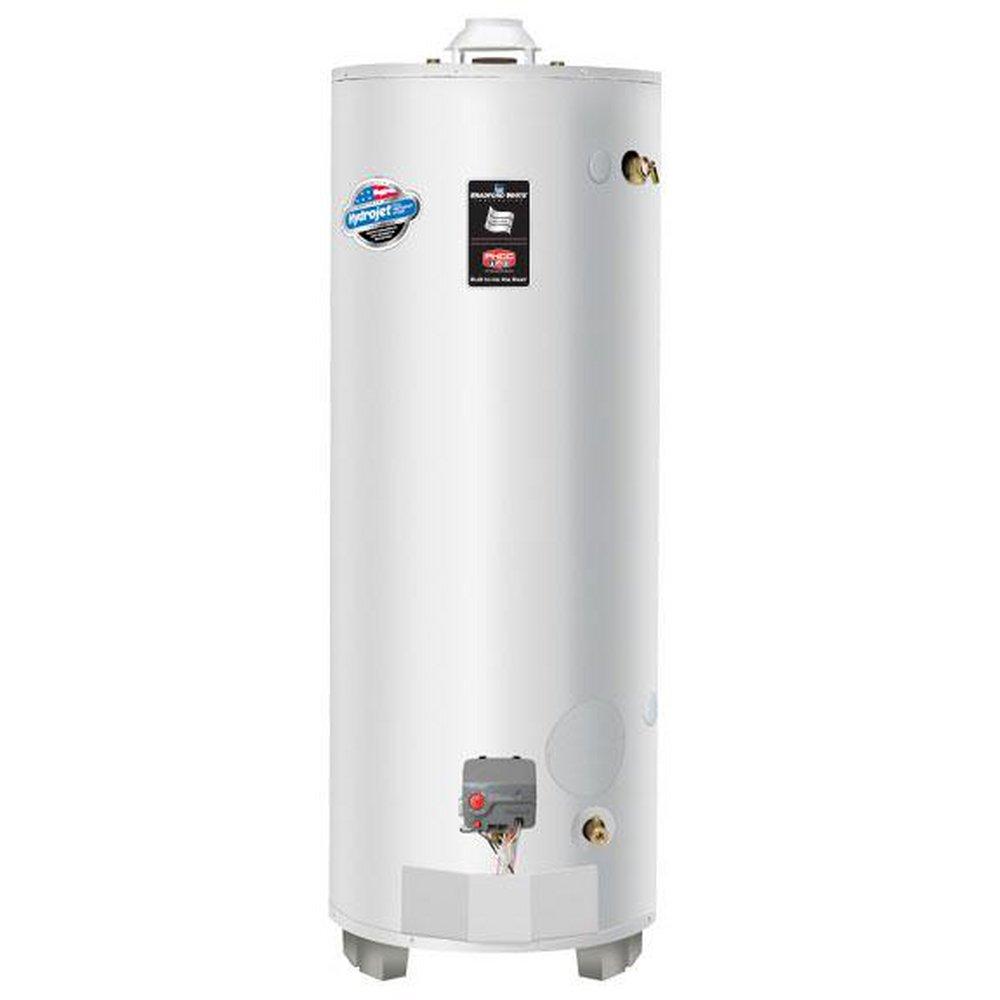

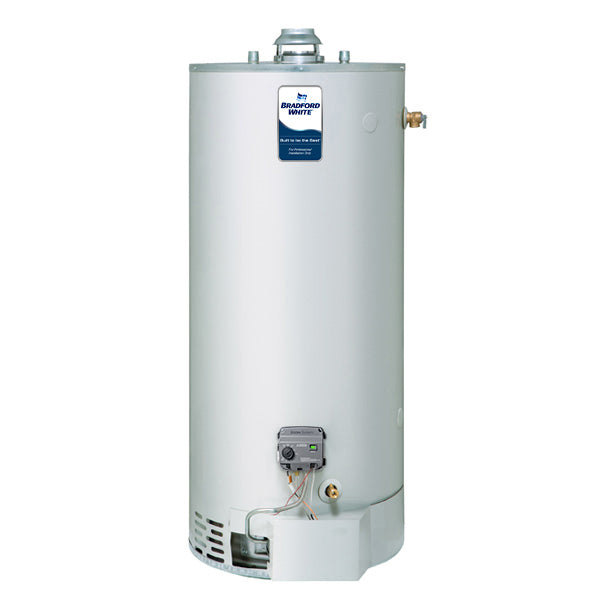

Bradford White BWULG2100H803N Light-Duty Ultra Low NOx Atmospheric Vent Gas 100 gal

Product Description

The BRADFORD WHITE BWULG2100H803N is a light-duty ultra low NOx atmospheric vent gas water heater. It features a 100-gallon tank, 80000 Btu/hr heating capacity, and is designed for natural gas fuel. The heater includes a Piezo ignition and a 4-inch atmospheric vent. It delivers a recovery rate of 78 gph at a 100-degree F rise.

• Bradford White® ICON System®
• Ultra low NOx burner with primary and secondary air distribution devices
• Maintenance-free

Product Highlights

This Bradford White gas water heater is designed for light-duty applications with high input, offering efficient and reliable performance.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: BWULG2100H803N

Technical Specifications

• Manufacturer: Bradford White
• Model #: ULG2100H803N
• ASME Yes/No: No
• Domestic/Import: Domestic
• Finish: Vitraglas
• Fuel Type: Natural Gas
• Gas Connection: 1/2 in
• Heating Capacity: 80000 Btu/hr
• Ignition Type: Piezo
• Material: Steel
• Mounting Type: Surface
• Pressure Rating: 150 psi
• Recovery Rate: 78 gph at 100 deg F Rise
• Tank Capacity: 100 gal
• Temperature Rating: 180 deg F
• Type: Light Duty High Input
• Ultra Low NOx: Yes
• Vent Size: 4 in
• Vent Type: Atmospheric Vent
• Water Connection: 1-1/4 in NPT
• ANSI: ANSI Z21.10.3
• Antimicrobial: Yes
• Application: Commercial
• BTU: 80000
• CEC Compliant: For Sale in CA
• CSA Certified: Yes
• Capacity: 100 gal
• Depth: 31-13/16
• Diameter: 28-1/4
• Emission: Ultra-Low NOx
• Energy Star Compliant: No
• Height: 72-5/16
• Lining of Tank: Glass
• MBH: 80
• NSF: NSF 372
• NSF Certified: Yes
• Power Source: Gas
• Pressure - High: 150
• Pressure - Maximum: 300 psi
• UL Listed: No
• UPC: 671632905690
• Water Connection Size: 1-1/4
• Water Heater Capacity Range: 51 - 100 gal
• Water Heater Type: Tall, Light Duty
