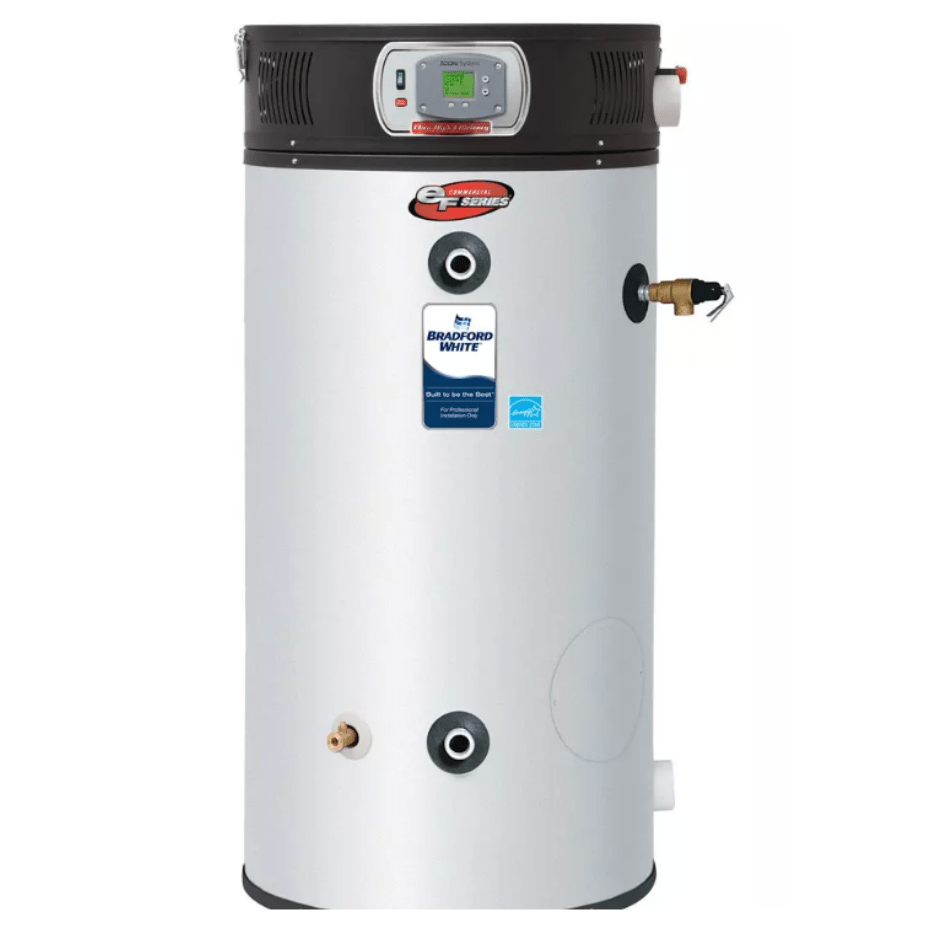

Bradford White BWEF-60T-199E-3N2 EF Series NG Commercial Water Heater 199999 Btu

Product Description

The BRADFORD WHITE BWEF-60T-199E-3N2 EF Series NG Commercial Water Heater is a durable and efficient solution for commercial water heating needs. Designed with high-quality materials to ensure long-lasting performance. Offers unsurpassed installation flexibility and performance with ultra-high thermal efficiencies and extremely quiet operation.

• Service mode - Eight different digitally displayed service modes can be easily cycled through by pressing the select button
• Factory installed Hydrojet sediment reduction system
• Thermal efficiency up to 99.1%

Product Highlights

This 60-gallon natural gas commercial water heater features a 199999 Btu/hr heating capacity, Vitraglas lining, and flexible venting. It operates at 120V and is ENERGY STAR certified.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: BWEF-60T-199E-3N2

Technical Specifications

• Application: Commercial
• BtuH Water Heaters: 199999 BtuH
• Commercial Residential: Commercial
• Fuel Type Water Heaters: Natural Gas
• Gas Connection: 0.75 in.
• Height to Cold Side Connection: 12.81 in.
• Height to Hot Side Connection: 41.94 in
• Height to Top of Heater: 56.38 in
• Ignition Type: Direct Spark
• Jacket Dia: 28.25 in.
• Max Pressure: 150 psi
• Overall Height Water Heaters: 57 in.
• Recovery 100 F Rise: 223 GPH
• Recovery 110 F Rise: 202 GPH
• Recovery 120 F Rise: 185 GPH
• Recovery 130 F Rise: 171 GPH
• Recovery 140 F Rise: 159 GPH
• Recovery 50 F Rise: 444 GPH
• Recovery 70 F Rise: 317 GPH
• Recovery 90 F Rise: 247 GPH
• Standards: ANSI Z21.10.3-2019/CSA 4.3-2019
• Status: Active
• Tank Capacity Plumbing: 60 gal
• Top Water Connection Size: 1.5 in
• Unit Depth (in.): 28.63 in
• Unit Height (in.): 57 in.
• UPC: 671632306800
• Vent Type: Direct/Power
• Voltage: 120 V
• ASME Yes/No: false
• Dimensions: 28-1/4 in Dia x 56-3/8 in H
• Domestic/Import: Domestic
• Energy Efficiency: 92 %
• Finish: Vitraglas
• Fuel Type: Natural Gas
• Heating Capacity: 199999 Btu/hr
• Material: Steel
• Pressure Rating: 150 psi
• Recovery Rate: 792 gph at 30 deg F Rise
• Series: eF Series
• Tank Capacity: 60 gal
• Temperature Rating: 180 deg F
• Ultra Low NOx: true
• Vent Size: 3 in
• Water Connection: 1-1/2 in NPT
