Bradford White BW-RG240S6N RG240S6N 40 gallon

Product Description

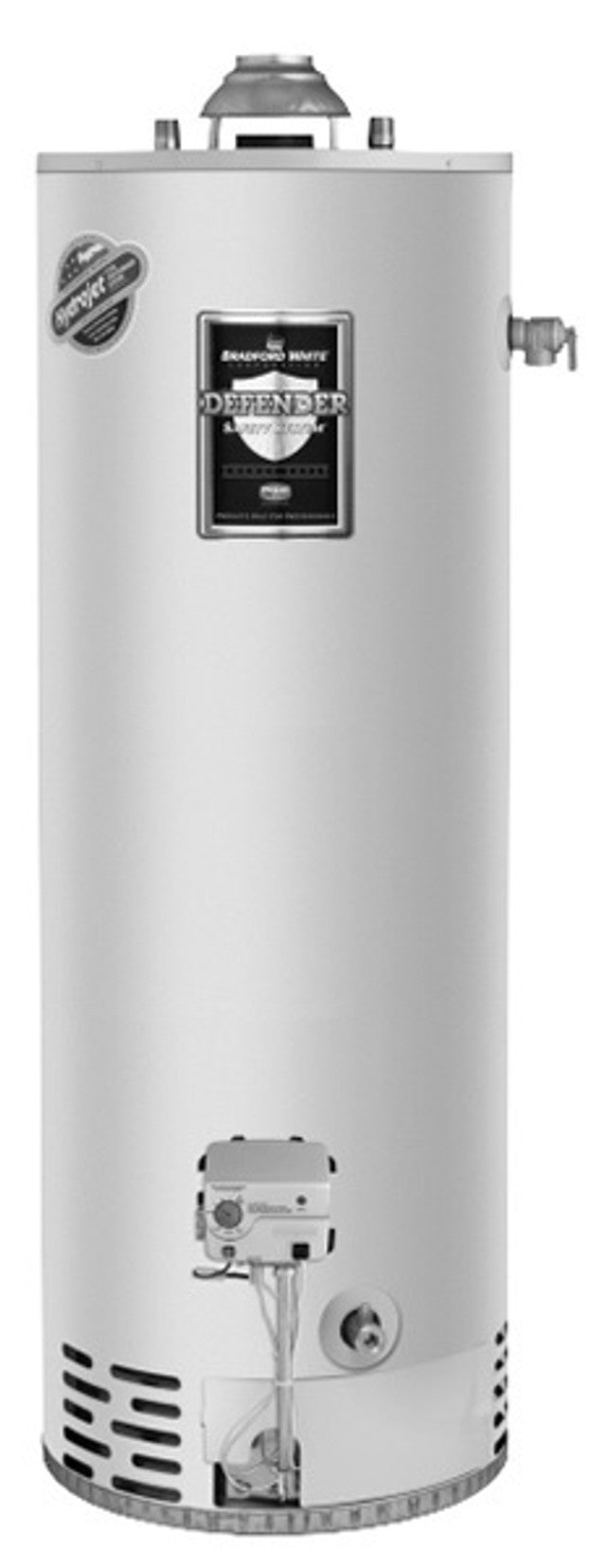

The Bradford White BW-RG240S6N is a 40-gallon short hot water heater with a 40,000 BTU input and a First Hour Rating of 69 gallons. This natural gas water heater is designed with a shorter tank height and wider diameter. It features the Defender Safety System and Vitraglas enamel lining for corrosion protection. NAECA compliant.

• Features ScreenLok Technology flame arrestor and a resettable thermal switch.
• Equipped with an Advanced Temperature Control System for consistent water temperature.
• Includes a factory-installed Hydrojet System and a brass drain valve.

Product Highlights

This Bradford White 40-gallon water heater provides efficient and consistent hot water with enhanced safety features and durable construction.

Product Information

Standard Information

• Brand: Bradford White
• Manufacturer Part Number: BW-RG240S6N

Technical Specifications

• Rated Nominal Volume (Gallons): 40
• DOE Rated Storage Volume (Gallons): 38
• Fuel Type: Natural Gas (NG)
• Energy Star: No
• Connectivity: Not WiFi Compatible
• Overall Height (in.): 51.563
• Height (Floor To Top of Heater - in.): 48.063
• Overall Depth (in.): 25.5
• Jacket Diameter (in.): 22
• BTU Input: 40000
• First Hour Delivery Rating (Gal.): 69
• Uniform Energy Factor (UEF): 0.58
• Recovery at 90°F Rise (GPH): 43
• Recovery Efficiency: up to 80%
• Venting: Atmospheric
• Vent Size (in.): 3" or 4"
• Water Connection Size (in.): 3/4" NPT
• Gas Connection Size (in.): 1/2"
• Type: Atmospheric Vent, Energy Saver, Residential
• Series: Defender Safety System™, Hydrojet®, ICON System™
• Heating Capacity: 40000 BtuH
• Gas Type: Natural Gas
• Gas Connection: 1/2 Inch
• Tank Capacity: 40 gal
• Ignition Type: Piezo
• Draft Hood Size: 3 x 4 Inch
• Recovery Rate: 43 gph at 90 deg F
• Energy Efficiency: 0.59
• Heating Element: Magnesium Anode Rod
• Material: Steel
• Dimensions: 22 Inch Dia x 51-1/2 Inch H
• Includes: Temperature and Pressure Relief Valve
