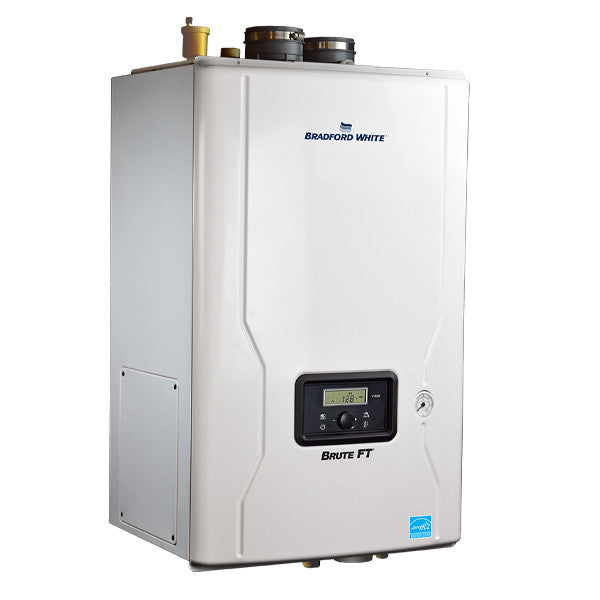

Bradford White BMFTHW140 Brute FT Wall Hung Heat Only Boiler 140000 BTU

Product Description

The Bradford White BMFTHW140 Brute FT Wall Hung Boiler is a residential boiler with a 95% AFUE efficiency rating. Designed for heat only, it can be paired with a Bradford White Powerstor Indirect Fired Water Heater. It features a durable stainless steel fire-tube heat exchanger and a 10:1 turndown ratio, modulating from 14,000 to 140,000 BTUs.

• Energy Star Rated with 95% AFUE efficiency
• Durable stainless steel fire-tube heat exchanger with 10 Year Warranty
• 10:1 turndown ratio modulates between 14,000 - 140,000 BTUs

Product Highlights

The BMFTHW140 boiler offers horizontal or vertical venting, and can cascade up to 20 units. It includes an LCD control panel, pressure relief valve, and air intake filter.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: BMFTHW140

Technical Specifications

• Product Type: Boiler
• Installation Type: Wall
• Fuel Type: NG (Field Convertible - Kit Included)
• Combustion Type: Condensing
• Vent Type: Direct Vent
• Water Volume (Gal.): 1
• Central Heat (CH) Max. Flow Temp. (°F/C): 180 / 82
• Connectivity: Not WiFi Compatible
• Domestic Hot Water - DHW: No
• Input Capacity (Min. BTUs): 14000
• Input Capacity (Max. BTUs): 140000
• Turndown Ratio: 10:1
• AFUE Efficiency %: 95
• DOE Heating Capacity (BTUs): 112000
• AHRI Net Rating (BTUs): 102000
• Gas Connection (in.): 3/4"
• Vent/Air Connections (in.): 3"
• Boiler Supply/Return (in.): 1-1/4"
• DHW Inlet/Outlet Connections (in.): NA
• DHW Output GPM (@70° rise): NA
• DHW Output GPM (@75° rise): NA
• DHW Output GPM (@80° rise): NA
• DHW Min. Flow Rate (GPM): NA
• DHW Max. Flow Temp (°F/C): NA
• DHW Max. Operating Pressure (PSI): NA
• Width (in.): 17.375
• Depth (in.): 15.5
• Height (in.): 29
• Certifications: ASME, Energy Star, ETL, AHRI, Low NOX
• Voltage: 110-120V
• Circuit Breaker Size (Amps): 15
