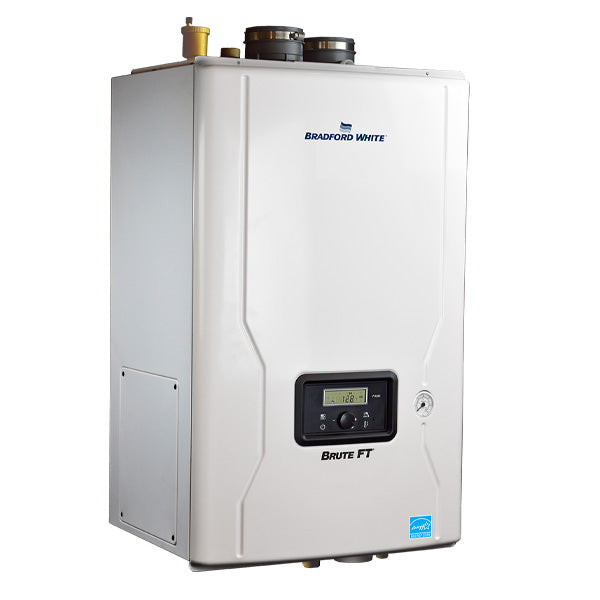

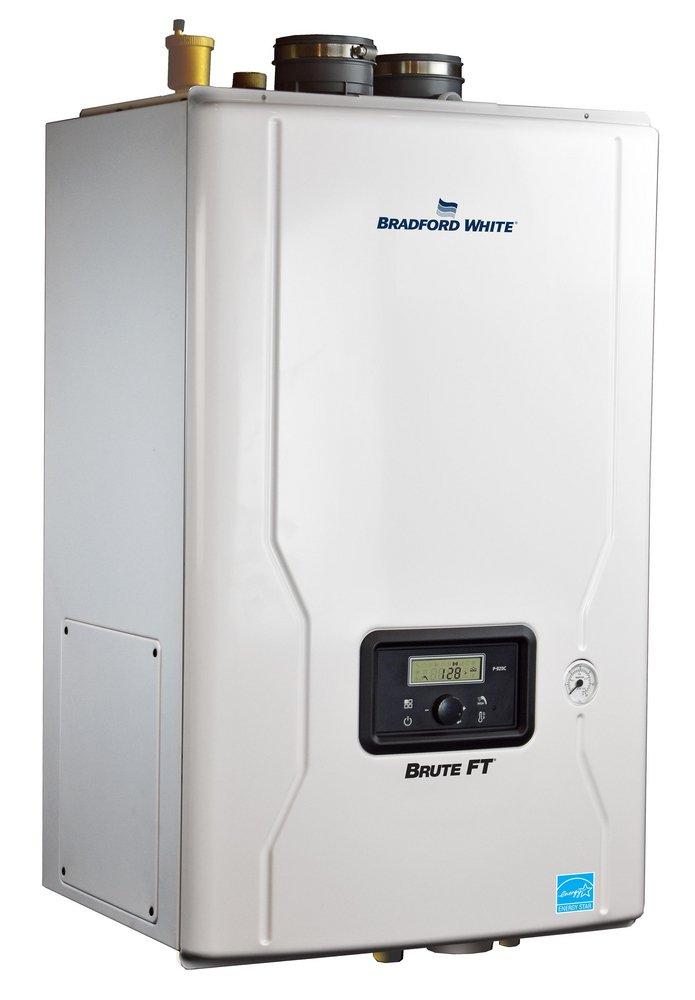

Bradford White BMFTCW140 Brute FT Gas-Fired Combi Boiler 140 MBH

Product Description

The BRADFORD WHITE BMFTCW140 Brute FT Gas-Fired Combi Boiler is designed for professional installation and delivers both heat and hot water for residential applications. It features a fire tube heat exchanger and achieves 95% AFUE. The boiler is Energy Star compliant and suitable for wall mounting. It operates at 120V and is CSA certified.

• Suitable for residential applications.
• Features a fire tube heat exchanger.
• Energy Star compliant with 95% AFUE efficiency.

Product Highlights

The BMFTCW140 is a wall-mounted combi boiler with a stainless steel heat exchanger, offering efficient heating and hot water delivery.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: BMFTCW140

Technical Specifications

• AMP: 4
• ANSI: ANSI Z21.13
• ASME: ASME H
• Application: Residential
• BTU: 140000
• Boiler Type: Combi Boiler
• CEC Compliant: For Sale in CA
• CSA Certified: CSA 4.9
• Collection: Brute FT®
• Condensing: Yes
• Depth: 15.5
• Energy Star Compliant: Yes
• Fuel Type: NG (Field Convertible - Kit Included)
• Height: 29
• Ignition System: Spark Ignition
• Input (MBH): 140 MBH
• Installation Type: Wall Mount
• Length: 16
• Material: Stainless Steel
• Media: Hot Water
• Phase: Single Phase
• Pressure Class: 30#
• Return Pipe Connection: 1
• Supply Pipe Connection Size: 1
• Type: BBMFTCW140NA1XN
• Volts: 120V
• Width: 18
• Product Type: Boiler / Hot Water Heater
• Combustion Type: Condensing
• Vent Type: Direct Vent
• Water Volume (Gal.): 1
• Central Heat (CH) Max. Flow Temp. (°F/C): 180 / 82
• Connectivity: Not WiFi Compatible
• Domestic Hot Water - DHW: Yes
• Input Capacity (Min. BTUs): 14000
• Input Capacity (Max. BTUs): 140000
• Turndown Ratio: 10:1
• AFUE Efficiency %: 95
• DOE Heating Capacity (BTUs): 129000
• AHRI Net Rating (BTUs): 112000
• Gas Connection (in.): 3/4"
• Vent/Air Connections (in.): 3"
• Boiler Supply/Return (in.): 1"
• DHW Inlet/Outlet Connections (in.): 3/4"
• DHW Output GPM (@35° rise): 9.8
• DHW Output GPM (@45° rise): 7.7
• DHW Output GPM (@70° rise): 4.8
• DHW Min. Flow Rate (GPM): .5
• DHW Max. Flow Temp (°F/C): 140
• DHW Max. Operating Pressure (PSI): 30
• Certifications: ASME, Energy Star, ETL, AHRI, Low NOX
• Voltage: 110-120V
• Circuit Breaker Size (Amps): 15
