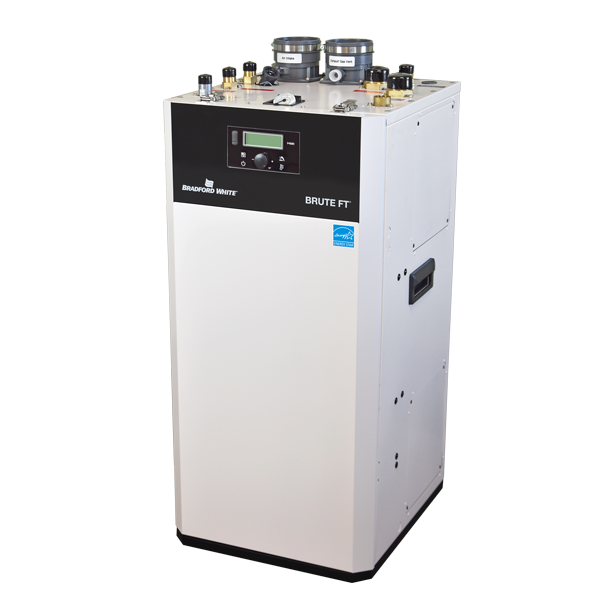

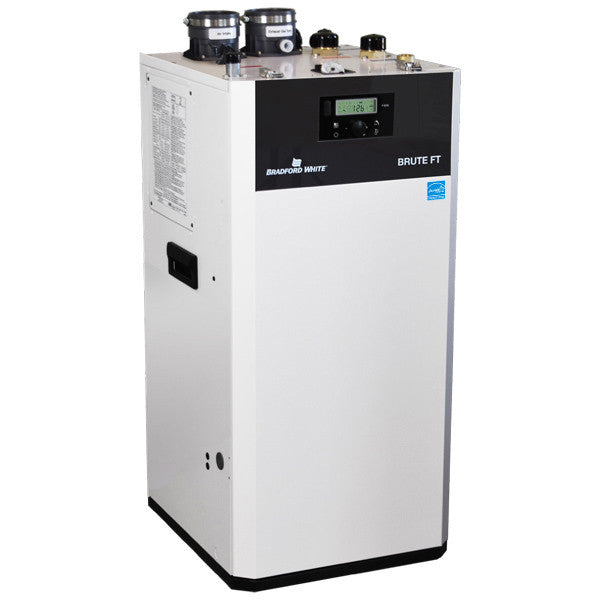

Bradford White BFTCF199 Brute FT Floor Standing Combination Boiler/Water Heater 199000 BTUs

Product Description

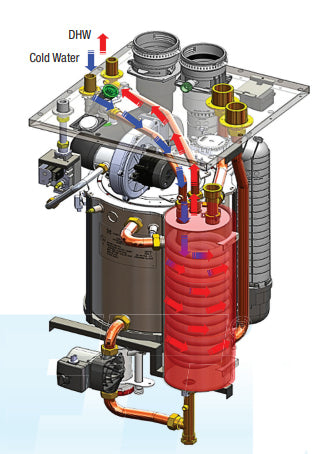

The Bradford White BFTCF199 Brute FT Floor Standing Combination Water Heater/Boiler provides heat and hot water for residential or light commercial use. It features a durable stainless steel fire-tube heat exchanger and a 40-foot stainless steel, corrugated coil. The boiler has a turndown ratio of 10:1 and full modulation input from 19,000 to 199,000 BTUs.

• Energy Star Rated with 95% AFUE efficiency ratings
• First floor standing unit for both heat AND Domestic Hot Water (DHW) delivery
• Full Modulation Input - 19,000 - 199,000 BTUs (10% - 100%)

Product Highlights

This combination boiler/water heater offers efficient heating and hot water delivery with a durable stainless steel heat exchanger and a wide modulation range.

Product Information

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: BFTCF199
• Country of Origin: USA

Technical Specifications

• Product Type: Boiler / Hot Water Heater
• Installation Type: Floor Standing
• Fuel Type: NG (Field Convertible - Kit Included)
• Combustion Type: Condensing
• Vent Type: Direct Vent
• Water Volume (Gal.): 1
• Central Heat (CH) Max. Flow Temp. (°F/C): 180 / 82
• Connectivity: Not WiFi Compatible
• Domestic Hot Water - DHW: Yes
• Input Capacity (Min. BTUs): 19000
• Input Capacity (Max. BTUs): 199000
• Turndown Ratio: 10:1
• AFUE Efficiency %: 95
• DOE Heating Capacity (BTUs): 181000
• AHRI Net Rating (BTUs): 157000
• Gas Connection (in.): 3/4"
• Vent/Air Connections (in.): 3"
• Boiler Supply/Return (in.): 1.5"
• DHW Inlet/Outlet Connections (in.): 3/4"
• DHW Output GPM (@35° rise): 9.9
• DHW Output GPM (@45° rise): 7.7
• DHW Output GPM (@70° rise): 5.2
• DHW Min. Flow Rate (GPM): 0.5
• DHW Max. Flow Temp (°F/C): 140
• DHW Max. Operating Pressure (PSI): 150
• Width (in.): 19.6
• Depth (in.): 17.9
• Height (in.): 38.25
• Certifications: ASME, Energy Star, ETL, AHRI
• Voltage: 110-120V
• Circuit Breaker Size (Amps): 15
