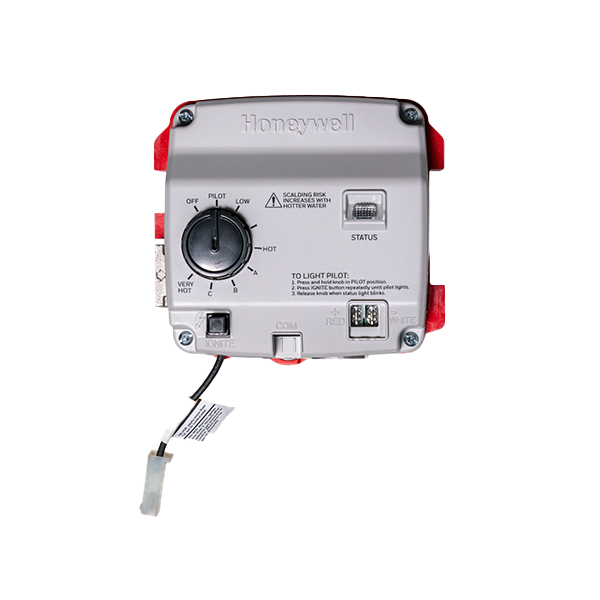

Bradford White 415-52909-0 Gas Control Valve Lp Icon System

Product Description

The BRADFORD WHITE 415-52909-0 is a propane (LP) gas control valve designed for use with the ICON System on Bradford White water heaters. This control kit manages gas flow and temperature regulation within the water heater, maintaining safe operation up to a maximum set point of 160 degrees F (71 degrees C). The unit is manufactured by Resideo and fits a 2-inch cavity installation. Licensed plumbers and water heater service technicians are the primary installers for this type of component.

This gas control valve is intended for residential or light-commercial water heater applications running on liquid propane fuel. It is specifically engineered for Bradford White ICON System water heaters requiring a 2-inch cavity gas valve. The part number 415-52909-0 corresponds to the Resideo-manufactured valve used in these systems. Always verify the fuel type and cavity size against the existing unit before ordering a replacement.

Key Features

• Configured for liquid propane (LP) fuel systems
• Compatible with Bradford White ICON System water heaters
• 2-inch cavity installation configuration
• Maximum temperature set point of 160 degrees F (71 degrees C)
• Manufactured by Resideo to OEM specifications

Compatibility

Designed for Bradford White ICON System water heaters with a 2-inch cavity gas valve configuration, LP fuel type. The raw title references compatibility notation RG240S LP. Confirm cavity size, fuel type, and ICON System designation on the existing water heater data plate before installation.

Installation Notes

Installation should be performed by a licensed plumber or qualified water heater service technician in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply and allow the water heater to cool before removing the existing control valve. Verify all gas connections for leaks using an approved leak-detection solution after installation. Do not exceed the rated maximum set point temperature during commissioning.

Technical Specifications

• Fuel Type: Liquid Propane (LP)
• System: ICON System
• Cavity Size: 2 inches
• Maximum Temperature Set Point: 160 degrees F (71 degrees C)
• Manufacturer: Resideo
• UPC: 671632912964

Standard Information

• Brand: BRADFORD WHITE
• Manufacturer Part Number: 415-52909-0
