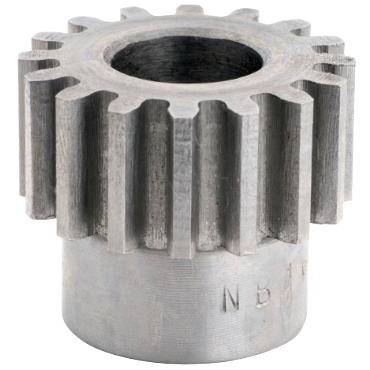

Boston Gear NA15B Spur Gear 20 DP 14 1/2 PA 15 Teeth Steel

Product Description

The Boston Gear NA15B is a steel spur gear designed for various mechanical power transmission applications. This gear features a twenty diametral pitch and is built with high-quality steel to ensure durability. It has a total of fifteen teeth, which contributes to its reliable performance in gear systems. This spur gear is suitable for use in drive components and is commonly employed in industrial machinery and equipment.

• Material: Steel
• Number of Teeth: 15
• Bore Diameter: 3/8 inches

Product Highlights

The spur gear is designed for efficiency and longevity in mechanical systems.

Product Information

Standard Information

• Brand: Boston Gear
• MPN: NA15B
• Country of Origin: United States
• Minimum Order Quantity: 1

Technical Specifications

• Weight: 0.24 lbs
• Hub Type: Hub w/ No Keyway or Set Screw
• Bore Type: Rough Stock
• Face Width: 3/8 inches
• Hub Diameter: 0.6 inches
• Overall Width: 0.755 inches
• Hub Projection: 0.38 inches
• Pitch Diameter: 3/4 inches
• Pressure Angle: 14.5 degrees
• Diametral Pitch: 20
• Outside Diameter: 0.85 inches
• Gear Construction: Plain
• Manufacturer Catalog Number: 00110
