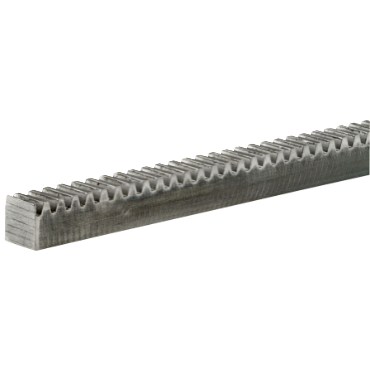

Boston Gear L509-4 Steel Gear Rack 20 DP 4 ft

Product Description

The Boston Gear L509-4 is a steel gear rack designed to convert rotary motion into linear motion when used with spur gears. This gear rack operates effectively with stock 14.5 and 20-degree pressure angle spur gears. It offers various lengths, including one, two, four, and six-foot options. Modifications to the gear rack can be made to meet specific application needs. These modifications can include drilling and tapping mounting holes, cutting the rack to desired lengths, or matching the ends of two pieces to create a longer continuous length.

• Material: Steel
• Length: 4 feet
• Diametral Pitch: 20

Product Highlights

The Boston Gear L509-4 provides reliable operation in various mechanical applications, featuring a robust steel construction for durability.

Product Information

Standard Information

• Brand: Boston Gear
• Part Number: L509-4
• Availability: Available to Order

Technical Specifications

• Material: Steel
• Overall Length: 4 feet
• Overall Thickness: 0.375 inches
• Face Width: 0.375 inches
• Diametral Pitch: 20
• Pressure Angle: 14.5 degrees
• Weight: 1.781 lbs
• EAN or UPC: 781711127384
• Pitch Line to Back: 0.325 inches
