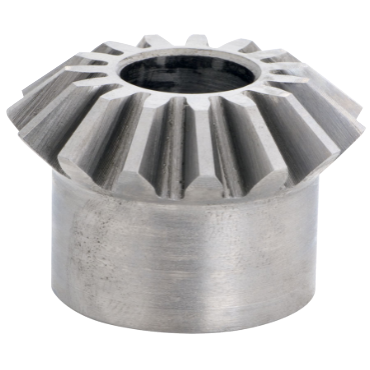

Boston Gear L110Y Minimum Plain Bore Straight Miter Gear

Product Description

Boston Gear L110Y Minimum Plain Bore Straight Miter Gear is designed for efficient power transmission between intersecting shafts at right angles. This gear operates on a 1:1 ratio, making it suitable for various mechanical applications.

• 16 diametral pitch
• 20 degrees pressure angle
• 3/8 nominal bore

Product Highlights

Use this miter gear for smoother operation and improved longevity. The Coniflex® tooth form provides reduced wear and noise, ideal for both low and high torque operations.

Product Information

Standard Information

• Brand: Boston Gear
• MPN: L110Y

Technical Specifications

• Material: Steel, Unhardened
• No. of Teeth: 16
• Pitch Diameter: 1 inches
• Bore Diameter: 0.375 inches
• Pressure Angle: 20 degrees
• Weight: 0.081 pounds
• Torque at 200 RPM: 18.9 lb/in
• Torque at 1200 RPM: 13.7 lb/in
