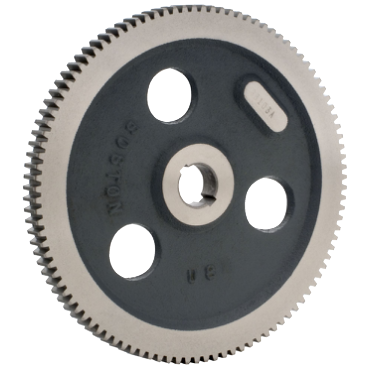

Boston Gear GD100A Cast Iron Change Gear 12 DP 100 Teeth

Product Description

Boston Gear GD100A is a cast iron change gear designed for machine tools. It allows for different cutting speeds while using a constant input speed. The gear features a double key design for use with compound steel bushings, which enables smooth operation on an intermediate shaft. This gear, with 100 teeth, is suitable for various applications that require precise speed adjustments.

• Cast iron construction
• 100 teeth for versatile application
• Compatible with Boston Gear compound steel bushings

Product Highlights

This product provides excellent durability and efficiency in mechanical power transmission tasks.

Product Information

Standard Information

• Brand: Boston Gear
• MPN: GD100A

Technical Specifications

• Material: Cast Iron
• Length Through Bore: 1.5 inches
• No. of Teeth: 100
• Pitch Diameter: 8.333 inches
• Outside Diameter: 9 inches
• Bore Size: 1 inch
• Pressure Angle: 14.5 degrees
• Diametral Pitch: 12
• Torque at 600 RPM: 356 lb/in
• Weight: 5.001 lb
• Keyway: Double Keyway 180 degrees Apart
