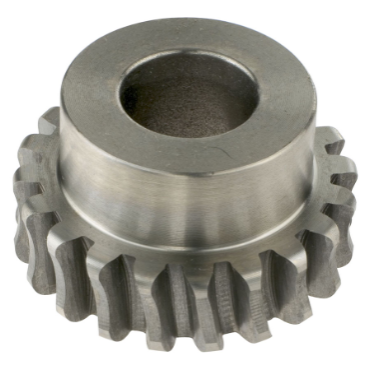

Boston Gear D1410LH Double Lead Worm Gear 10 DP 20 Teeth

Product Description

Boston Gear's D1410LH is a double lead worm gear suitable for high-ratio speed reduction in tight spaces. This product is designed to work with Boston Gear worms and is ideal for applications that require non-intersecting shafts at right angles. The gear is made from cast iron, ensuring durability and effectiveness in power transmission.

• 10 diametral pitch and 20 teeth
• 14.5 degrees pressure angle
• Left-hand thread and double lead

Product Highlights

The D1410LH gear enhances efficiency with lower ratios and provides resistance to back-driving under certain conditions. It is compact in design, making it suitable for various mechanical setups.

Product Information

Standard Information

• Brand: Boston Gear
• MPN: D1410LH

Technical Specifications

• Material: Cast Iron
• Right / Left Hand: Left Hand
• Pitch Diameter: 2 inches
• Helix Angle: 9 degrees 5 minutes
• Hardened Teeth: Without Hardened Teeth
• Pressure Angle: 14.5 degrees
• Length Through Bore: 1.25 inches
• No. of Teeth: 20
• Hub Diameter: 1.63 inches
• Bore Size: 0.875 inches
• No. of Leads: Double
• Flush Face to Worm Centerline: 0.312 inches
• Diametral Pitch: 10
• Weight: 0.701 LB
• UPC: 781711132845
