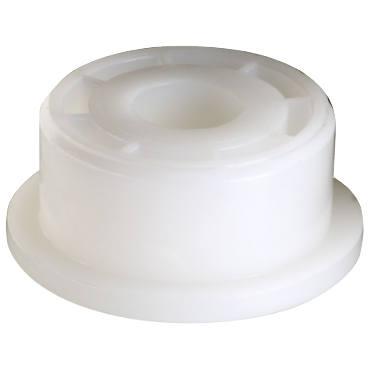

Boston Gear 8P40GS 1/4 Roll End Bearing For Steel Tubing & Standard Pipe

Product Description

The Boston Gear 8P40GS 1/4 is a roll end bearing designed for use with steel tubing and standard pipe applications. This bearing has a bore size of one quarter inch and is made from Nylatron GS, which provides durability and resistance to various environmental conditions.

• Requires no lubricant for operation.
• Works well in environments where moisture and chemicals are present.
• Ribbed construction allows for better control of dimensional tolerances.

Product Highlights

This roll end bearing is suitable for use in material handling and conveyor systems. It provides excellent load-bearing capabilities and operates quietly under load.

Product Information

Standard Information

• Brand: Boston Gear
• MPN: 8P40GS 1/4

Technical Specifications

• Bore Type: Round Bore
• I.D.: 1/4 in
• O.D.: 1.049 in
• Length: 5/8 in
• Material: Nylatron GS
• Flange Thickness: 0.125 in
• Max Temp: 550 °F
• Compatible Pipe Size: 1 in - Schedule 40
• Weight: 0.021 LB
