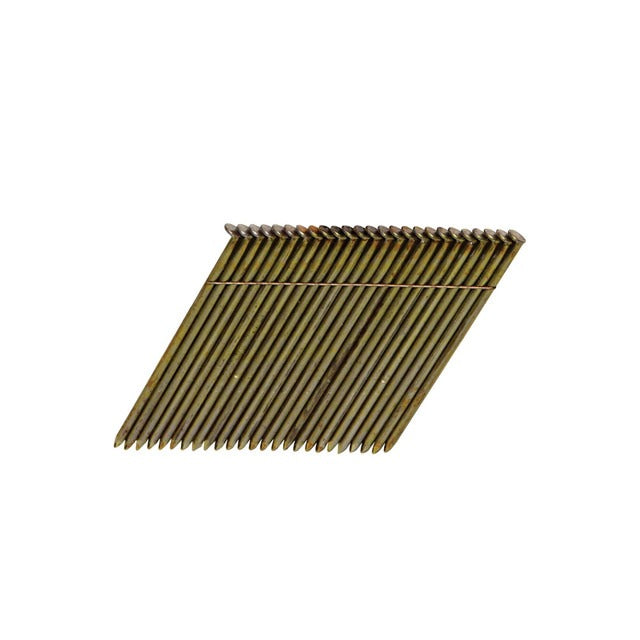

Bostitch s12d-fh Framing Nail 28 Degree 3-1/4 in 2000 Pkg

Product Description

The BOSTITCH s12d-fh is a 28-degree wire collated framing nail designed for stick-style pneumatic nailers used in wood framing, sheathing, and structural fastening applications. Each nail measures 3-1/4 inches in length with a .120-inch shank diameter. The full round head design meets code requirements where clipped-head nails are not permitted. A coated finish reduces drive resistance and improves holding power in dimensional lumber. The diamond point aids nail alignment and reduces splitting in engineered wood products. This nail is sold in packages of 2,000. Installation is performed by framing carpenters and rough-in trades using compatible pneumatic framing nailers.

These framing nails are suited for residential and light commercial wood-frame construction. Common applications include wall framing, floor joist nailing, roof sheathing, ledger board attachment, and structural panel fastening. The smooth shank profile is appropriate for permanent load-bearing connections where code requires a full round head fastener. Compatible nailer models are listed below in the Compatibility section.

Key Features

• 3-1/4 inch length with .120 inch smooth shank diameter for structural framing applications
• Full round head meets building code requirements where clipped or offset heads are not accepted
• 28-degree wire collation feeds consistently in stick-style pneumatic framing nailers
• Coated finish reduces friction during drive and improves embedment in wood fiber
• Diamond point tip aids nail tracking and reduces wood splitting
• 2,000 nails per package reduces reloading frequency on high-volume framing work

Compatibility

Compatible with BOSTITCH pneumatic framing nailers N79WW, N80SB, N86S, N88WWB, N100S, and F28WW.

Installation Notes

Installation is performed by framing carpenters using a compatible 28-degree stick framing nailer. Verify nailer air pressure is set within the tool manufacturer's recommended range before use. Disconnect the air supply before clearing jams or performing any maintenance on the nailer. Follow applicable local building codes and IRC or IBC fastener schedule requirements for the specific framing application.

Technical Specifications

• Length: 3-1/4 inches
• Shank Diameter: .120 inches
• Collation Angle: 28 degrees
• Collation Type: Wire collated stick
• Head Style: Full round head
• Shank Type: Smooth shank
• Point Type: Diamond point
• Finish: Coated
• Quantity per Package: 2,000

Standard Information

• Brand: BOSTITCH
• Manufacturer Part Number: s12d-fh
