Boshart TR30-CB2S-60/250 1/2 inches NPT 3 inches face temperature & pressure gauge short tridicator

Product Description

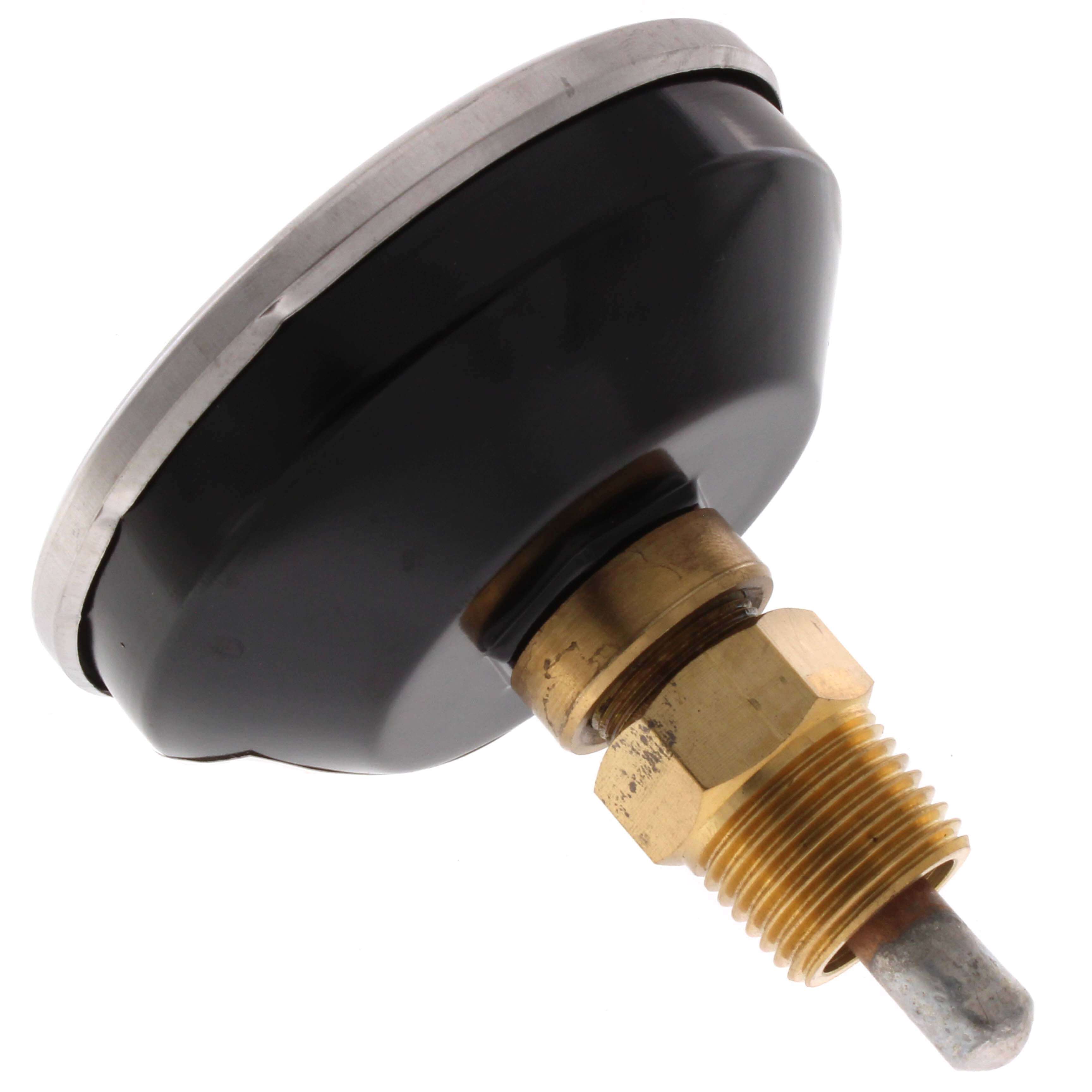

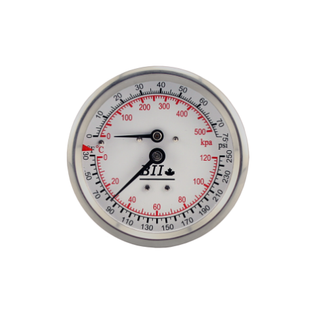

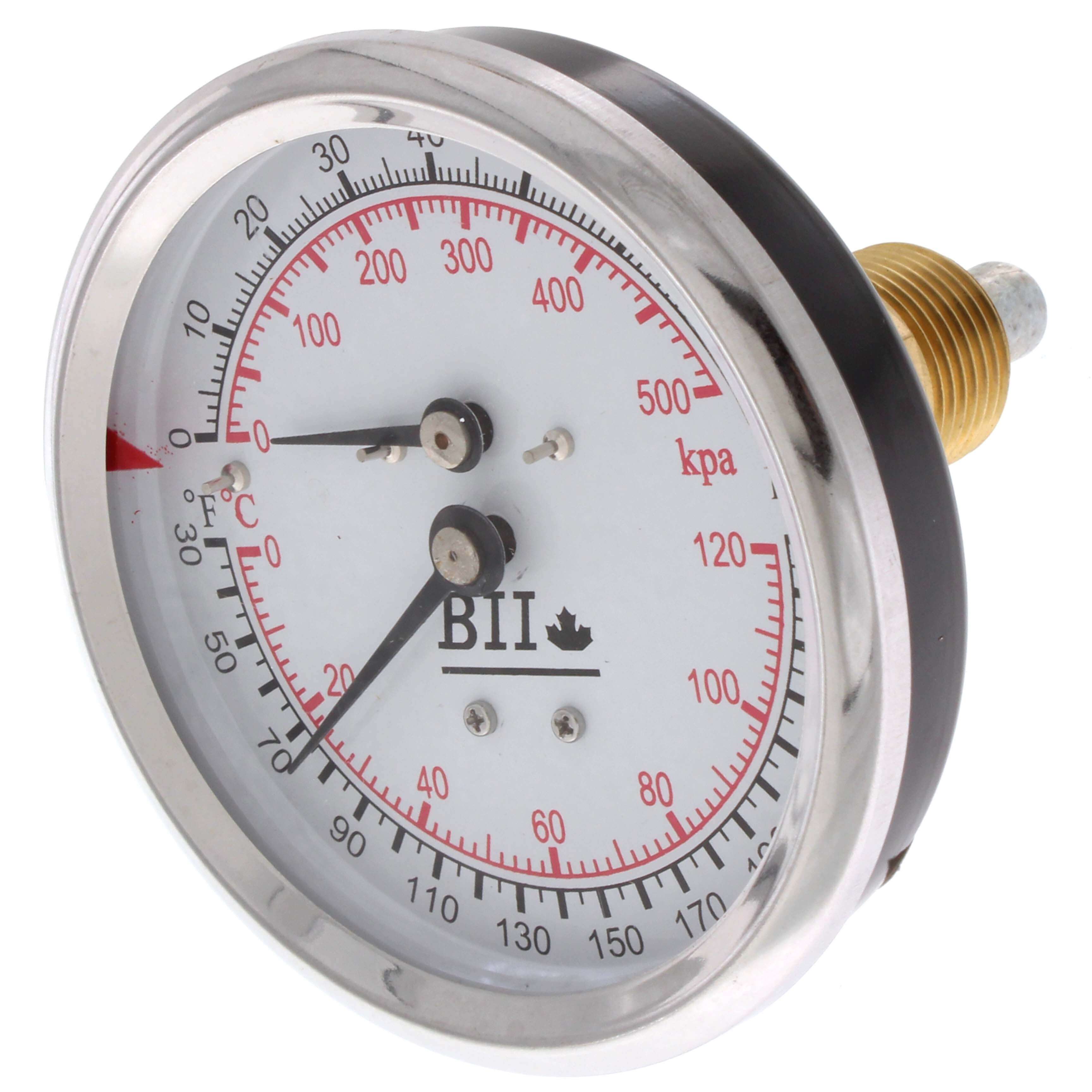

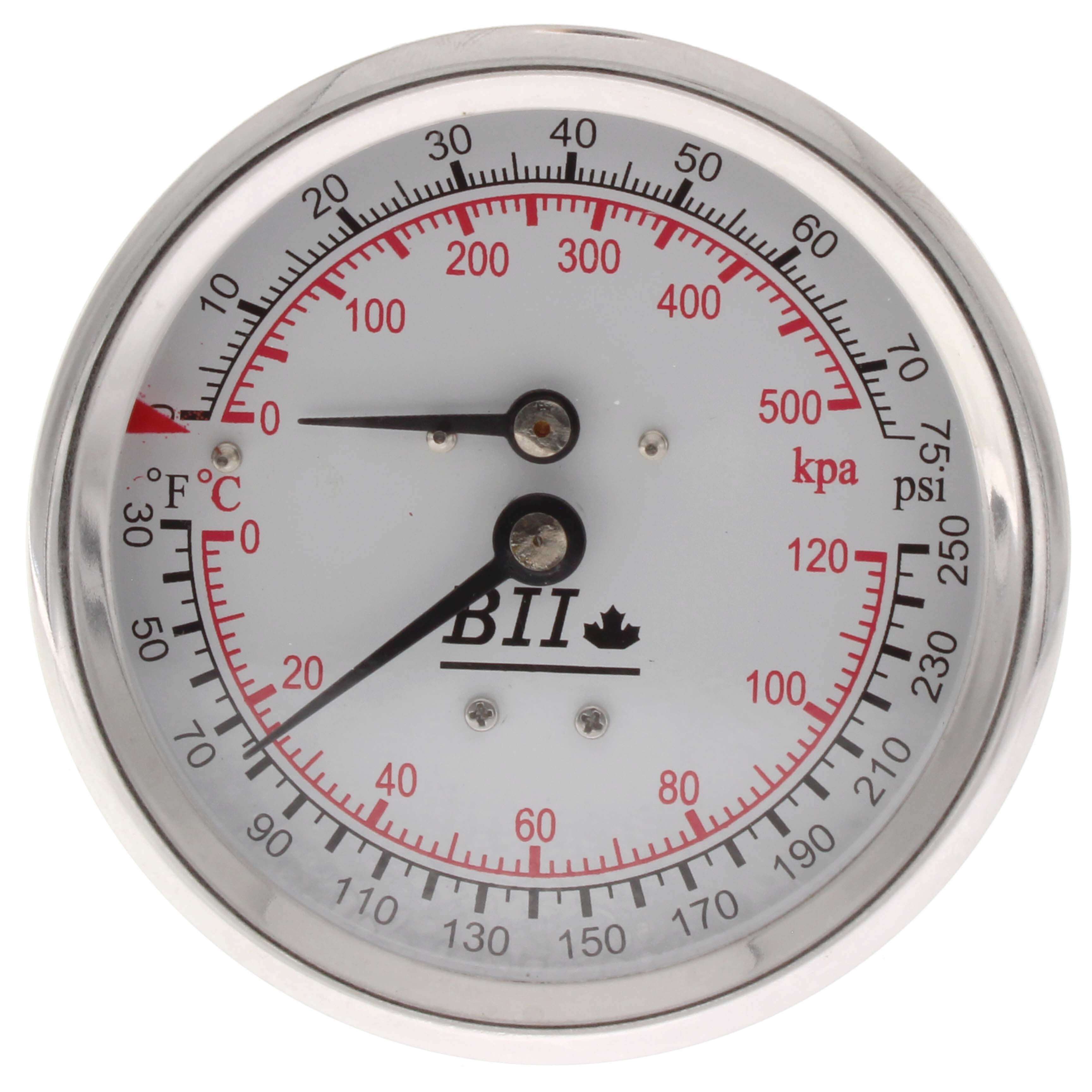

The BOSHART TR30-CB2S-60/250 is a 3-inch dial general purpose industrial combination pressure gauge and thermometer, also known as a tridicator. It features a black steel case with an acrylic window and a 1/2-inch NPT brass center back mount connection. This dry-type gauge utilizes a Bourdon tube and a coiled bi-metal element, providing dual scale readings for temperature (30-250°F / 0-120°C) and pressure (0-75 PSI / 0-500 kPa). It is designed for accurate temperature and pressure monitoring in various industrial applications.

• 3-inch dial industrial combination pressure gauge and thermometer.
• Features a 1/2-inch NPT brass center back mount connection and black steel case.
• Provides dual scale readings for temperature (30-250°F / 0-120°C) and pressure (0-75 PSI / 0-500 kPa).

Product Highlights

Industrial combination pressure gauge and thermometer with dual scale readings for temperature and pressure.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: TR30-CB2S-60/250

Technical Specifications

• Type: Dry
• Mount Type: Center Back Mount
• Measurement Units: Celsius, Fahrenheit, PSI, kPa
• Dial Size: 3"
• Pressure Range PSI: 0-75
• Pressure Range kPa: 0-500
• Temperature Range: 30°F to 250°F (0°C to 120°C)
• Shaft Length: 11/16"
• Connection Type: 1/2" NPT
• Gauge Type: Short
• Case Material: Black Steel
• Accuracy: Pressure +/- 3% - 2% - 3% Temperature +/- 2%
• Connection Material: Brass
