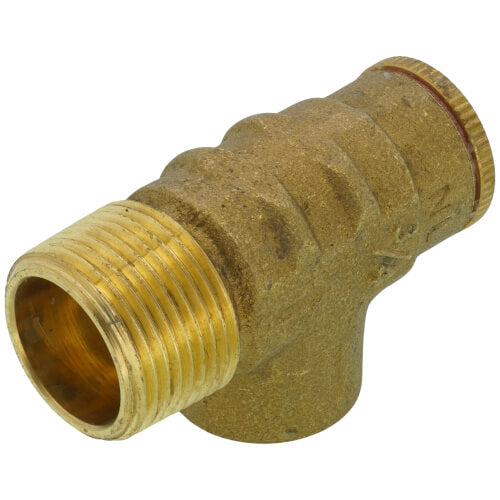

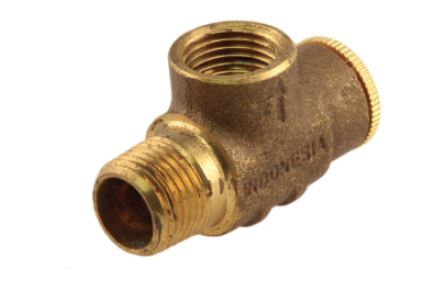

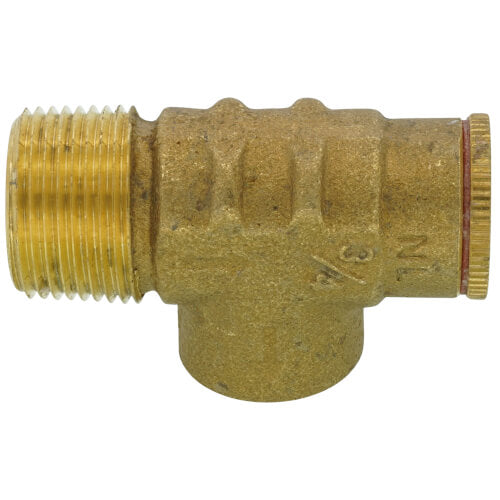

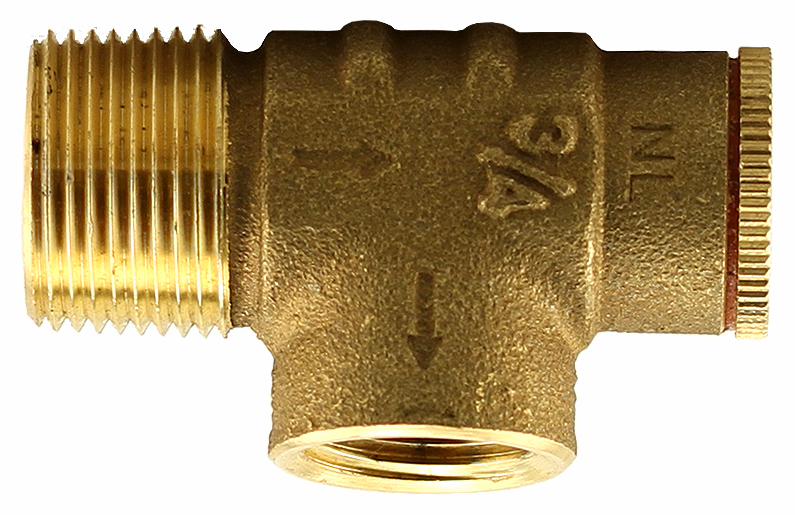

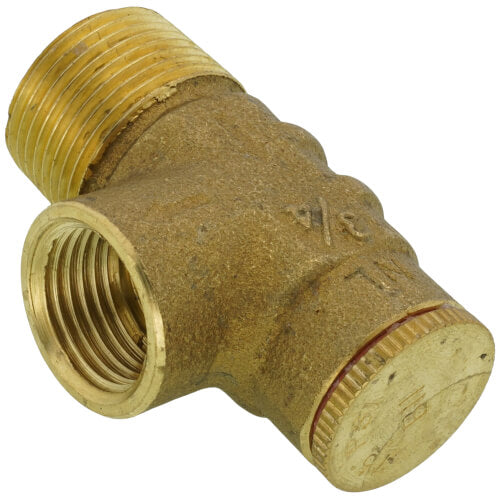

Boshart RVNB07-075NL 3/4 Inch Lead Free Brass Non-Adjustable Relief Valve

Product Description

The Boshart RVNB07-075NL is a pressure relief valve suitable for cold water systems. This valve safeguards piping and pressure tanks from potential damage. It operates with a preset pressure of seventy-five PSI with an accuracy range of plus or minus fifteen percent. The valve is not designed for field adjustments. It includes a brass body, a stainless steel spring, a retaining screw, and a Buna N sealing disc. This valve should not be used as a T and P valve with water heaters.

• Brass body for durability.
• Includes stainless steel spring and retaining screw for reliability.
• Buna N sealing disc provides effective sealing.

Product Highlights

This valve is essential for maintaining pressure in cold water systems.

Product Information

Standard Information

• Manufacturer Part Number: RVNB07-075NL
• Application: Well Tank

Technical Specifications

• Max Pressure: 75 psi
• Lead Free: Yes
• Size: 3/4 inches
• Connection Type: Male Threaded and Female Threaded
• Material: Brass
• Item Weight: 0.38 lb
• Item Dimensions: Length 2.45 inches x Width 1.45 inches x Height 1.05 inches
• Max Operating Temperature: 140 degrees F (60 degrees C)
