Boshart PG25-WTG200MP Test Gauge 200 PSI

Product Description

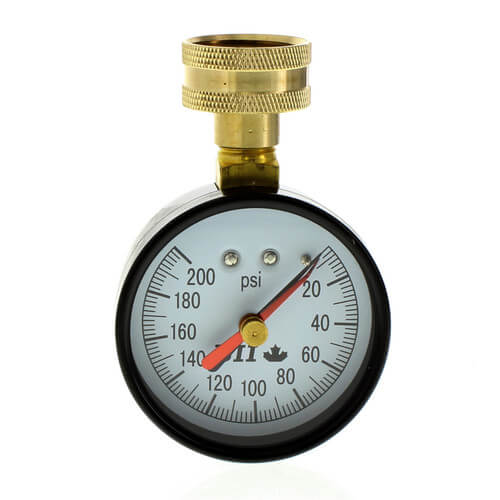

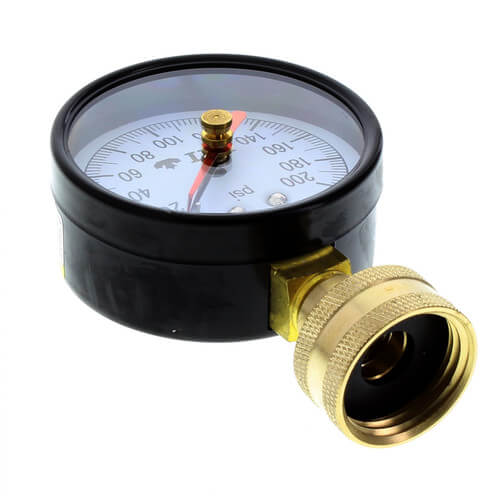

The BOSHART PG25-WTG200MP test gauge provides a quick and easy way to test a wide range of pressure systems for leakage. Designed to measure and register water system pressure within a system. The 3/4" hose connection allows for direct connection to a water heater drain valve or hose bibb. Part numbers with the MP suffix come with a maximum pressure indicator pointer.

• 3/4" brass female hose thread, swivel connection knurled for grip
• Black steel case w/ acrylic lens
• Copper alloy internals
• Maximum Pointer to record max. system pressure

Product Highlights

Ideal for recording the highest pressure reached to determine if a Pressure Reducing Valve (P.R.V.) is required. Often used in conjunction with rubber test caps.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: PG25-WTG200MP

Technical Specifications

• Dial Size: 2-1/2"
• Connection Type: Female Hose Thread
• Connection Size: 3/4"
• Thread Type: Female
• Max Pressure (PSI): 200
• Min Pressure (PSI): 0
• Increments (psi): 10
• Measures: Pressure
• Case: Black steel case w/ acrylic lens
• Internals: Copper alloy internals
• Application: Sewer, Drain, Waste Water System, Boiler Drain, Lawn Faucet
• Connection Location: Bottom
• Dial Color: White
• Display Type: Dial
• End Connection: 3/4 Inch Garden Hose
• Maximum Pressure: 200 PSI
• Minimum Pressure: 0 PSI
• Pointer Color: Black/Red
