Boshart PG25-100-GNL 304 Stainless Steel Brass Liquid 2-1/2 inches

Product Description

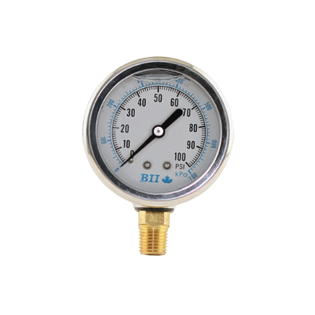

The BOSHART PG25-100-GNL pressure gauge is designed for general purpose use, but not for use with oxygen. The liquid-filled gauge is ideal for environments with vibration or pressure pulsation. It features a 2-1/2" dial, a 1/4" lower mount connection, and a 304 stainless steel case with brass connection.

• Ideal for use where vibration or pressure pulsation occurs.
• Lead Free
• Liquid Filled

Product Highlights

This Boshart pressure gauge provides accurate results in harsh environments. It features a stainless steel case and a polycarbonate lens.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: PG25-100-GNL

Technical Specifications

• Dial Size: 2-1/2"
• Fill: Glycerine
• Gauge Type: Liquid
• Mount Size: 1/4"
• Mount Type: LM
• Case Material: 304 Stainless Steel
• Dial Range kPa: 0-700
• Dial Range PSI: 0-100
• Accuracy: +/- 1.5% Full Scale Value
• Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Connection Material: Brass
• Product Model Short Description: 2-1/2" - Lower Mount Pressure Gauges
• Increments: 1.00 PSI
• Application: Pump and Motor
• Connection Location: Lower/Center Back
• Dial Color: White
• Display Type: Dial
• Enclosure Material: 304 Stainless Steel
• End Connection: 1/4 Inch Male Threaded
• Filler Material: Glycerine
• Full Scale Accuracy: +/- 1.5 Percent
• Maximum Pressure: 100 PSI
• Minimum Pressure: 0 PSI
• Pointer Color: Black
• Sensor Element: Bourdon Tube
• Temperature Rating: -4 to 140 Deg F
