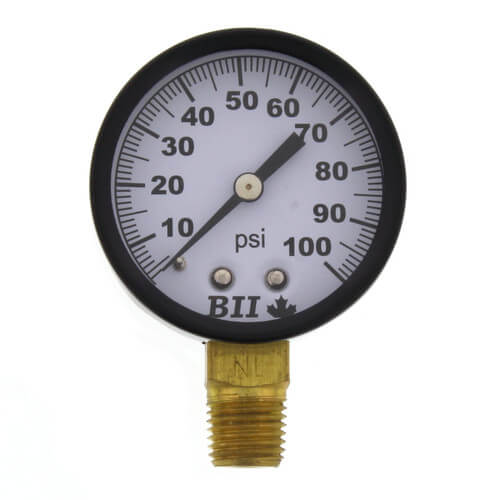

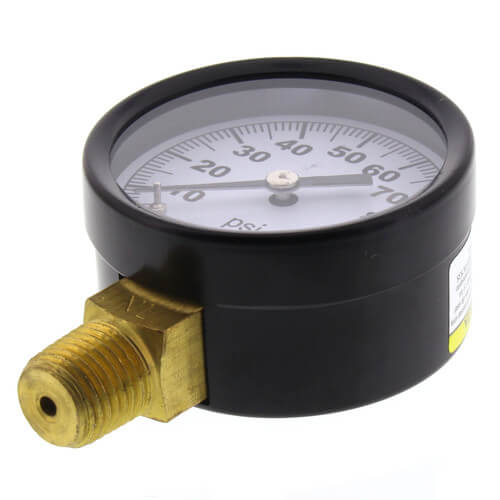

Boshart PG-100NL 1/4 inches NPT, 2 inches Dial, Lower Mount No Lead Pressure Gauge (0-100 PSI)

Product Description

The BOSHART PG-100NL is a general-purpose pressure gauge, not intended for use with oxygen. It features a lead-free brass connection and a steel case. Designed with a 2" dial and a 1/4" NPT connection, this gauge measures pressure from 0-100 PSI with increments of 1 PSI. It is suitable for ambient operating temperatures between 32 to 104°F.

• 1/4" NPT Connection
• 100 MAX PSI
• No Lead

Product Highlights

This pressure gauge is designed for basic hot/cold water and air pressure applications, including plumbing, heating, air conditioning, as well as pneumatic, hydraulic, water tanks and air compressors.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: PG-100NL

Technical Specifications

• Dial Size: 2"
• Connection Type: 1/4" NPT
• Max Pressure (PSI): 100
• Min Pressure (PSI): 0
• PSI Range: 0-100
• Measures: Pressure
• Mount: Bottom
• Increments (psi): 1
• Lead Free: Yes
• Gauge Type: Dry
• Case Material: Black Steel
• Dial Range PSI: 0-100
• Accuracy: 3%-2%-3% Grade B
• Connection Material: Brass
• Graduations: 1 psi
• Manufacturer: Boshart Industries
• Material: ABS/Steel
• Mounting Type: Lower
• Temperature Rating: 32 to 104 deg F
• Operating Temperature Range: -40 - 140°F
• Connection: 1/4" MPT
