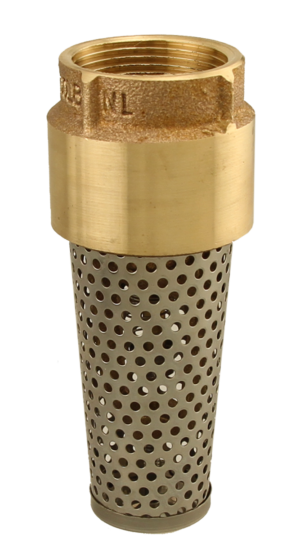

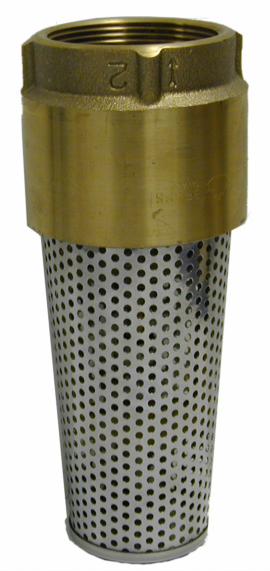

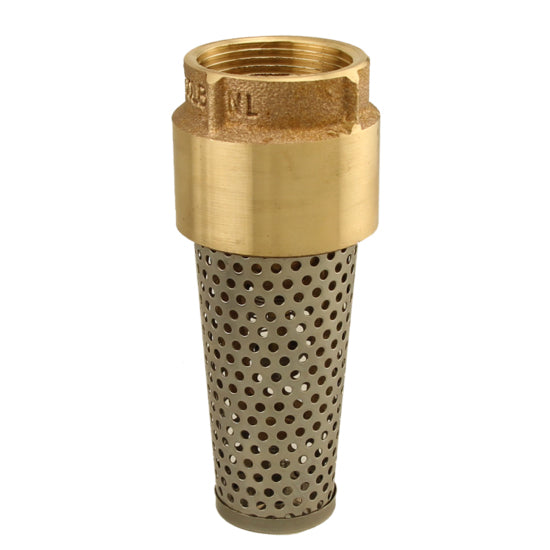

Boshart 17YBFV100NL Brass Foot Valve 1 inch

Product Description

The BOSHART 17YBFV100NL brass foot valve prevents water from back flowing into the water source. It features a cast brass body and poppet, along with a stainless steel screen. The valve is constructed with NBR O-Ring seal (Nitrile Buna-N). This foot valve is suitable for use in applications with a maximum pressure of 200 PSI and a maximum temperature of 180°F.

• No Lead
• Cast brass body and poppet
• Stainless steel screen

Product Highlights

Prevents backflow with durable brass construction and stainless steel screen.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 17YBFV100NL
• Country of Origin: Canada

Technical Specifications

• Seal Material: Nitrile Rubber
• Connection Type: FPT
• Poppet Material: Cast Brass
• Screen Material: Stainless Steel
• Primary Material: Brass
• Temperature Range: Up to 180°F (82°C)
• Maximum Pressure Rating: 200 PSI
• Temperature Max: 180°F
• Pressure Max: 200 PSI
• Trim Material: Stainless Steel
• Nominal Size: 1 in
• Series: 17YBFVNL
• Body Material: Brass
• Softgoods Material: NBR
• Temperature Rating: 180 deg F
• Pressure Rating: 200 psi
• End Style: FNPT
• Manufacturer Name: Boshart
