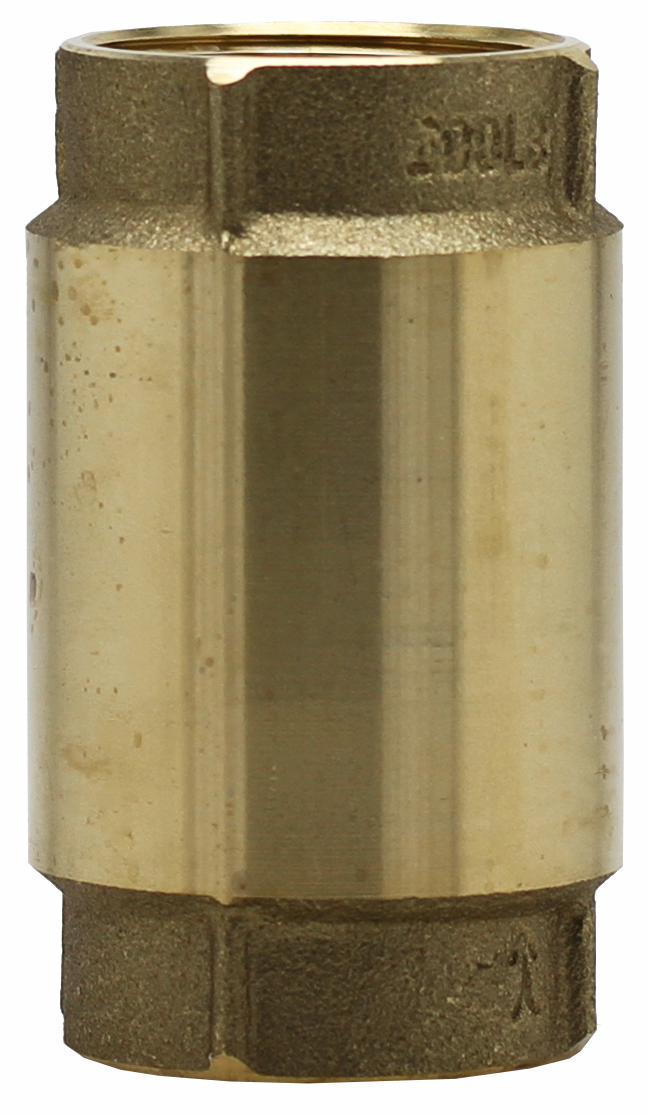

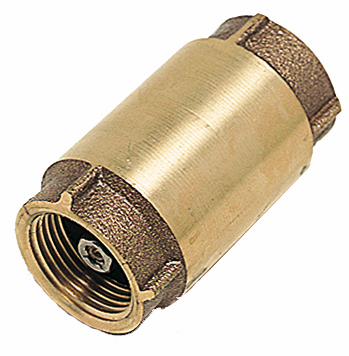

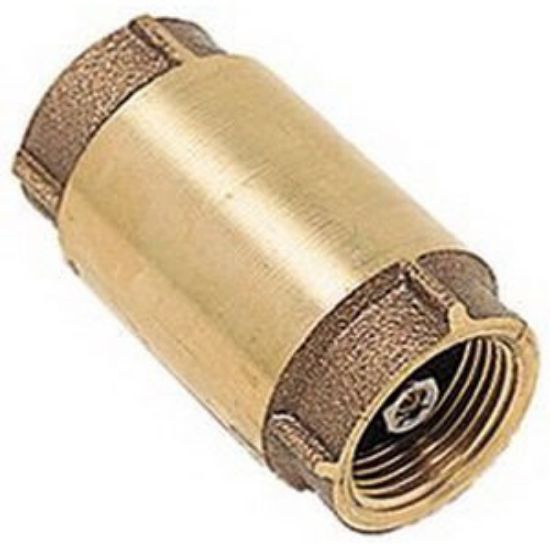

Boshart 17YBCV125NL Lead Free Cast Brass Check Valve, 1-1/4 in., Threaded

Product Description

The BOSHART 17YBCV125NL is a lead-free cast brass check valve with threaded end connections. Designed to allow fluid to flow in one direction. It has a maximum pressure of 200 psi and a maximum temperature of 180F. The valve is NSF 372 certified and features a Buna-N O-ring valve seal.

• Constructed from cast brass
• Features threaded end connections
• Compliant with lead-free regulations

Product Highlights

This Boshart check valve ensures unidirectional flow, made from durable cast brass and certified lead-free.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 17YBCV125NL
• Country of Origin: Taiwan

Technical Specifications

• End Connection: Threaded x Threaded
• End Connection 1: Threaded
• End Connection 2: Threaded
• Lead Law Compliant: Yes
• Material: Cast Brass
• Maximum Temperature: 180F
• Pressure - Maximum: 200 psi
• Size: 1-1/4 in.
• Specifications - NSF: NSF 372
• Specifications - NSF Certified: Yes
• Valve Size: 1-1/4 in.
• Product Type: Check Valves
• Body Material: Brass
• Connection Type: FPT
• Lead-Free/Contains Lead: Lead-Free
• Nominal Size: 1-1/4 in
• Pressure Rating: 200 psi
• Seal Material: Nitrile Rubber
• Series: 17YBCVNL Series
• Temperature Rating: 180 deg F
• Trim Material: 304 Stainless Steel
• End Style: FNPT
• Softgoods Material: NBR
• Pressure: 200 psi
• Temperature: 180 deg F
• Softgoods: NBR
• Length: 3.55 in
• Width: 2.05 in
• Height: 2.1 in
• Lead-Free: Yes
