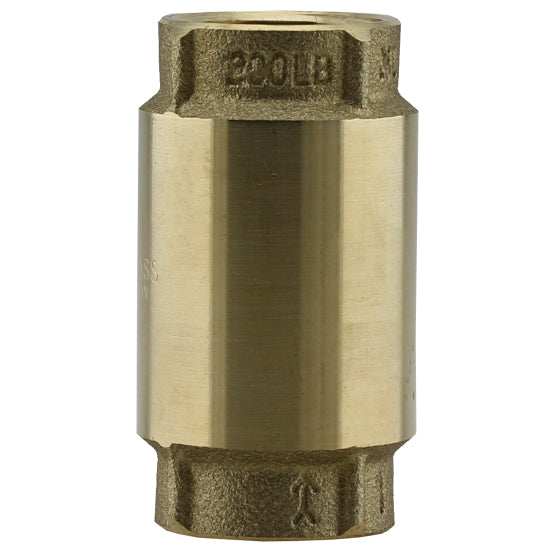

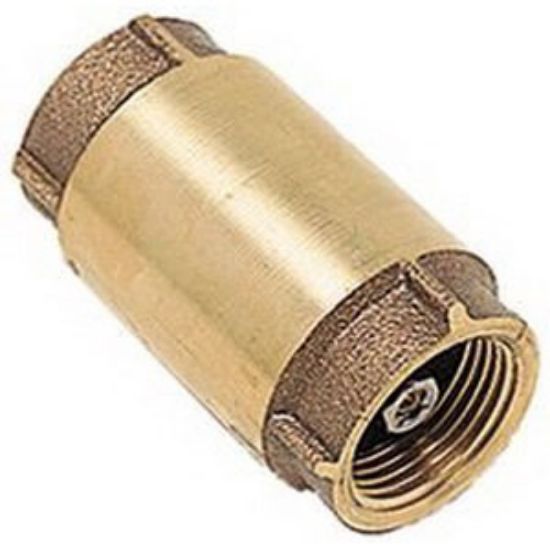

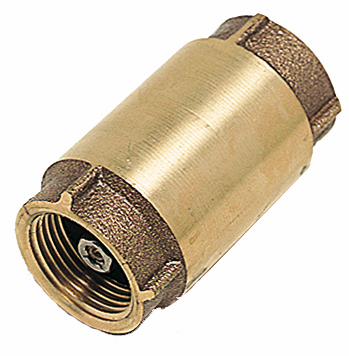

Boshart 17YBCV100NL 1 THRD BRASS SPRING CHECK VLV LEAD-FREE

Product Description

The BOSHART 17YBCV100NL is a 1-inch threaded brass spring check valve designed for lead-free applications. This valve ensures unidirectional fluid flow. It is constructed with a brass body and NBR softgoods, suitable for up to 200 psi pressure and 180 degrees F temperature.

• NSF ANSI 372 Certified
• NBR O-ring seal
• Lead-free, less than 0.25% third party

Product Highlights

Ensures fluid flows in one direction only. Constructed with brass body and NBR softgoods.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 17YBCV100NL
• Country of Origin: Taiwan

Technical Specifications

• Vendor: Boshart
• Product UPC: 777808395538
• Product Category: PVF
• Manufacturer Name: BOSHART
• Body Material: Brass
• End Style: FNPT
• Nominal Size: 1 in
• Pressure Rating: 200 psi
• Series: 17YBCVNL
• Softgoods Material: NBR
• Temperature Rating: 180 deg F
• End Connection: Threaded x Threaded
• Lead Law Compliant: Yes
• Material: Cast Brass
• Maximum Temperature: 180F
• Pressure - Maximum: 200 psi
• Size: 1 in.
• Specifications - NSF: NSF 372
• Specifications - NSF Certified: Yes
• Valve Size: 1 in.
• Product Type: Check Valves
• Low Lead Compliance: Yes
• Media: Gas/Oil/Water
• End Connection 1: Threaded
• End Connection 2: Threaded
