Boshart 14FHK-SC-1007SS 10 inches Clear Housing Kit, 3/4 inches Stainless Steel NPT

Product Description

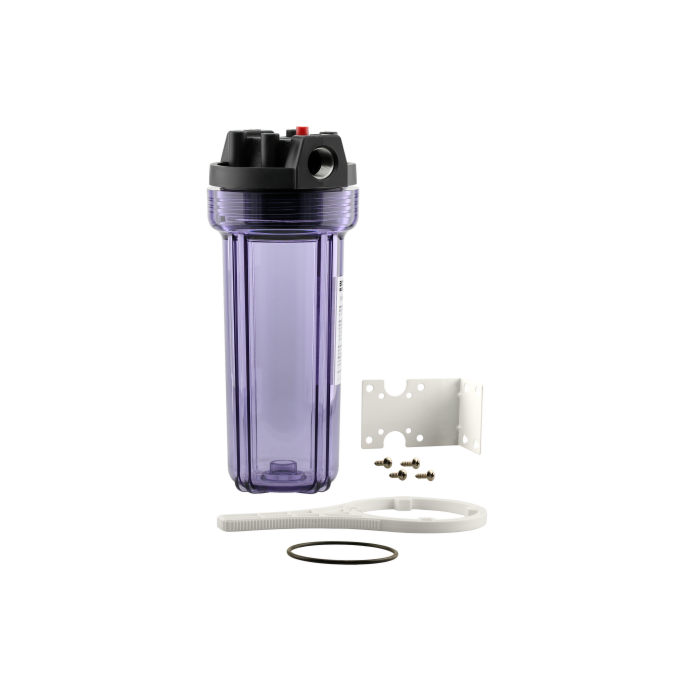

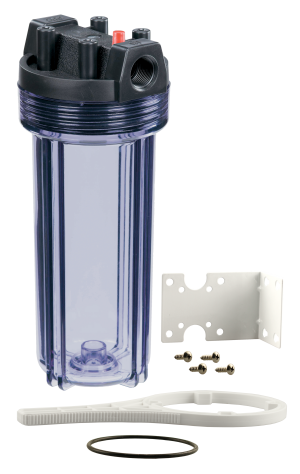

The BOSHART 14FHK-SC-1007SS 10" Clear Housing Kit features a 3/4" stainless steel NPT connection. This filter housing kit comes complete with the filter housing, O-rings, mounting bracket and hardware, and a filter bowl wrench. It accepts standard 10" filter cartridges (not included). The filter head includes a pressure relief button on the inlet side.

• Threads conform to ANSI/ASME B1.20.1
• Maximum pressure rating of 60 PSI
• Temperature rating: 39-125°F (4-52°C)

Product Highlights

This kit is ideal for whole house and point of entry filtration applications. Mounting bosses are molded in the head for easy installation.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 14FHK-SC-1007SS

Technical Specifications

• Threads: Conform to ANSI/ASME B1.20.1
• Max Pressure Rating: 60 PSI
• Temperature Rating: 39-125°F (4-52°C)
• Product Type: Filter Housing
• Application: Point of Entry
• Type: Whole House
• Max Pressure (PSI): 60
• Max Water Temp (°F): 125°F
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection Type: NPT
• Height: 10"
• Diameter (Inches): 4-3/5"
• Housing Color: Clear
• Bowl Color: Clear
• Bowl Length: 10"
• Temperature Range: 39°F to 125°F (4°C to 52°C)
• Filter Housing Type: Standard with Stainless Steel Inserts
• Product Model Short Description: Filter Housing Kits
• Brand: Boshart Industries
• UPC: 777808504404
• Package Length (in): 6.00"
• Package Width (in): 5.20"
• Package Height (in): 13.20"
• Manufacturer Part Number: 14FHKSC1007SS

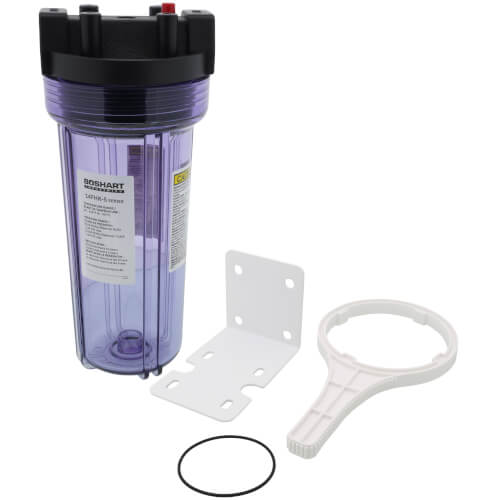

• Includes: O-Rings, Filter Bowl Wrench and Mounting Bracket with Hardware
• Fitting Size: 3/4" FNPT
• Inlet/Outlet Connection: 3/4 Inch Threaded
