Product Description

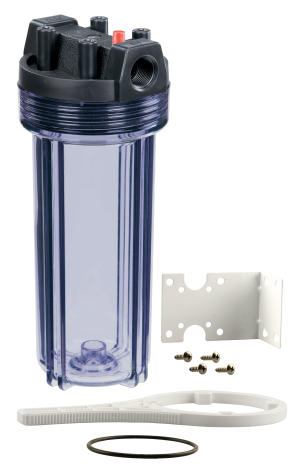

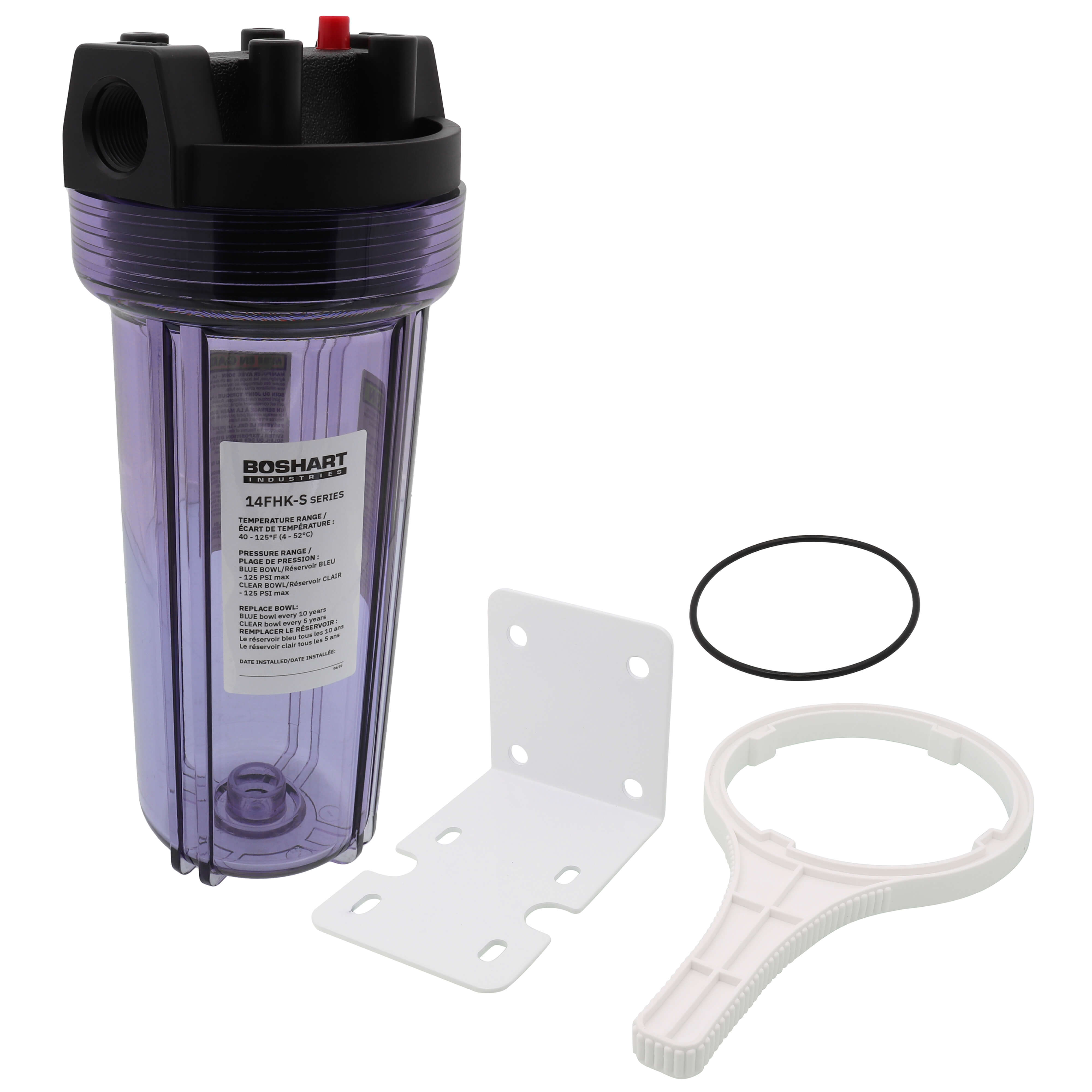

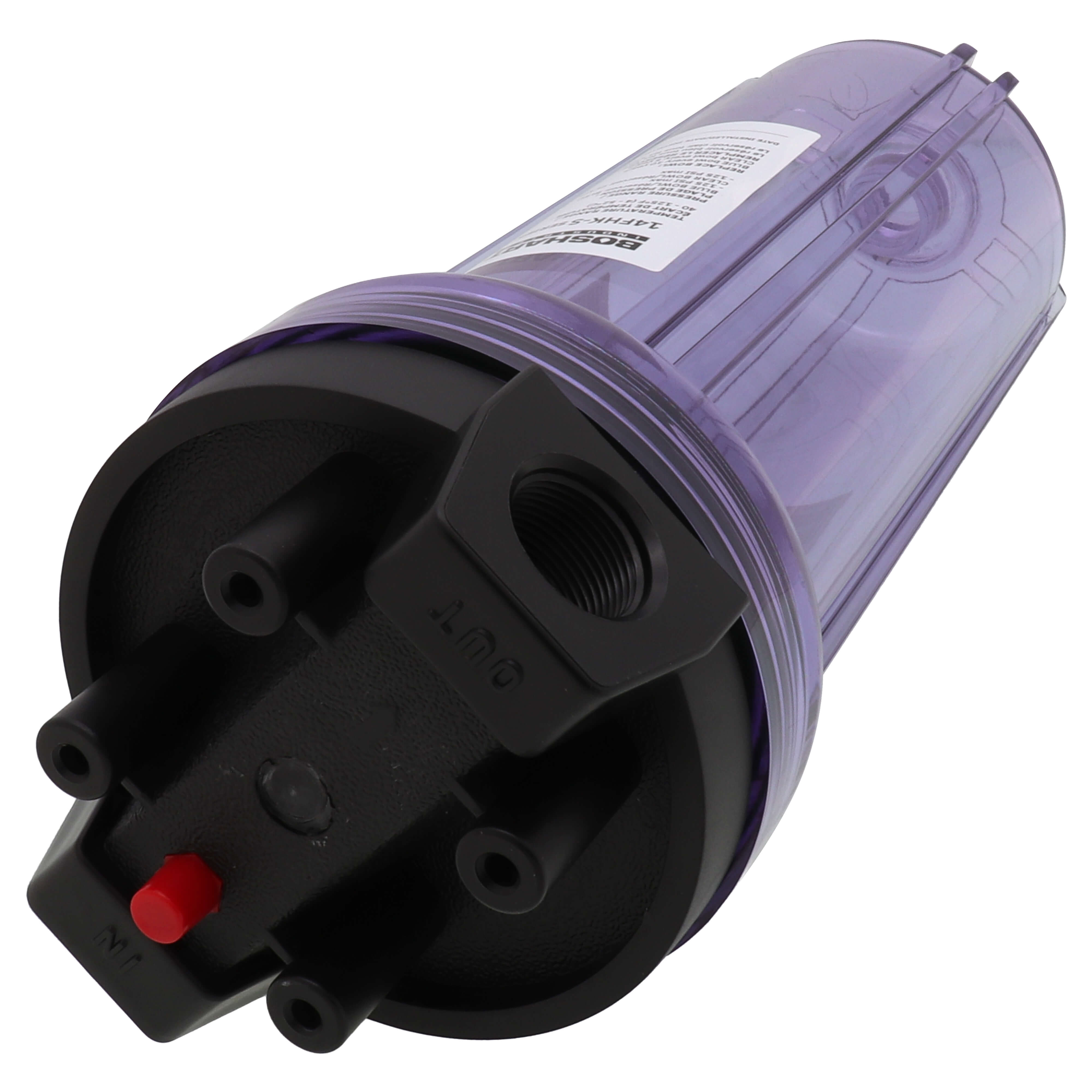

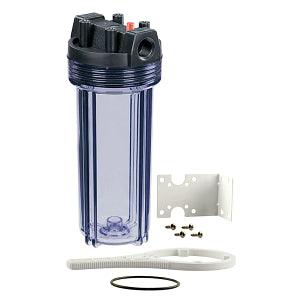

The BOSHART 14FHK-SC-1007 is a 10" standard clear housing kit with a 3/4" NPT connection. Threads conform to ANSI/ASME B1.20.1. The filter head includes a pressure relief button on the inlet side and mounting bosses for bracket installation. This housing kit comes complete with the filter housing, O-rings, mounting bracket, hardware, and filter bowl wrench. Accepts standard model 10" cartridges (not included).
- Designed for whole house and point of entry applications.
- Maximum pressure rating of 60 PSI.
- Temperature rating of 39-125°F (4-52°C).
Product Highlights
This filter housing kit is ideal for agriculture, water well, greenhouse/drip irrigation, whole house residential, and recreational vehicle applications.
Product Information
Standard Information
-
Brand: BOSHART
-
Manufacturer Part Number: 14FHK-SC-1007
Technical Specifications
-
Threads: Conform to ANSI/ASME B1.20.1
-
Max Pressure Rating: 60 PSI
-
Temperature Rating: 39-125°F (4-52°C)
-
Accepts: Standard model 10" cartridges (not included)
-
Product Type: Filter Housing
-
Application: Point of Entry
-
Type: Whole House
-
Max Pressure (PSI): 60
-
Max Water Temp (°F): 125°F
-
Inlet Size: 3/4"
-
Outlet Size: 3/4"
-
Connection Type: NPT
-
Height: 10"
-
Diameter (Inches): 5-1/5"
-
Housing Color: Clear
-
Bowl Color: Clear
-
Bowl Length: 10"
-
Temperature Range: 39°F to 125°F (4°C to 52°C)
-
Filter Housing Type: Standard
-
Product Model Short Description: Filter Housing Kits
-
Brand: Boshart Industries
-
Domestic/Import: Import
-
Flow Rate: 11 gpm
-
Material: Polypropylene
-
Port Size: 3/4 in FNPT
-
Series: 14FHK-SC Series
