Boshart 14fhk-sb-1007 10 inches Standard Blue Housing Kit, 3/4 inches NPT

Product Description

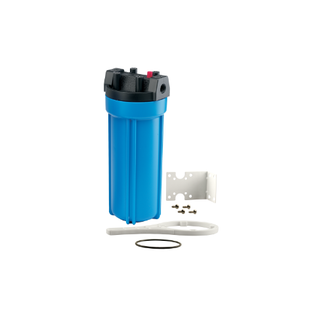

The BOSHART 14FHK-SB-1007 10" Standard Blue Housing Kit features 3/4" NPT connections. Threads conform to ANSI/ASME B1.20.1. The filter head includes a pressure relief button on the inlet side and mounting bosses for bracket installation. The kit includes the filter housing, an installed O-ring plus a spare, mounting bracket & hardware, and a filter bowl wrench. Accepts standard model 10" cartridges (not included).

• Threads conform to ANSI/ASME B1.20.1
• Maximum pressure rating of 100 PSI
• Temperature rating: 39-125°F (4-52°C)

Product Highlights

This housing kit is ideal for whole house and point of entry filtration systems. It includes all necessary hardware for installation.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 14FHK-SB-1007
• Country of Origin: Canada

Technical Specifications

• Threads: Conform to ANSI/ASME B1.20.1
• Max Pressure Rating: 100 PSI
• Temperature Rating: 39-125°F (4-52°C)
• Accepts Cartridge Size: Standard model 10"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection Type: NPT
• Max Pressure (PSI): 100
• Max Water Temp (°F): 125°F
• Product Type: Filter Housing
• Application: Point of Entry
• Type: Whole House
• Height: 10"
• Diameter (Inches): 5-1/5"
• Housing Color: Blue
• Bowl Color: Blue
• Bowl Length: 10"
• Temperature Range: 39°F to 125°F (4°C to 52°C)
• Filter Housing Type: Standard
• Product Model Short Description New: Filter Housing Kits
• Manufacturer: Boshart Industries
• Manufacturer's Part Number: 14FHK-SB-1007
• Former Part Number: 14HK-D10-B07
• Housing Inlet Port: 3/4" Female Thread
• Housing Outlet Port: 3/4" Female Thread
• Filter Length: 9 7/8" (10")
• Filter Width: 2 7/8"
• Total Length: 11.81"
• Total Width: 5.14"
• Pressure Relief Valve: Yes
• O-Ring: 2 Included (One as a Spare)
• Wrench: Standard Filter Wrench Included
• Mounting Bracket: L Style with Screws Included
• Filter Housing Colour: Blue
• Color: Blue
• Flow Rate: 20 GPM
• Inlet/Outlet Connection: 1 Inch Threaded
• Item: Water Filtration Kit
• Length: 10 Inch
• Pressure Rating: 100 PSI
