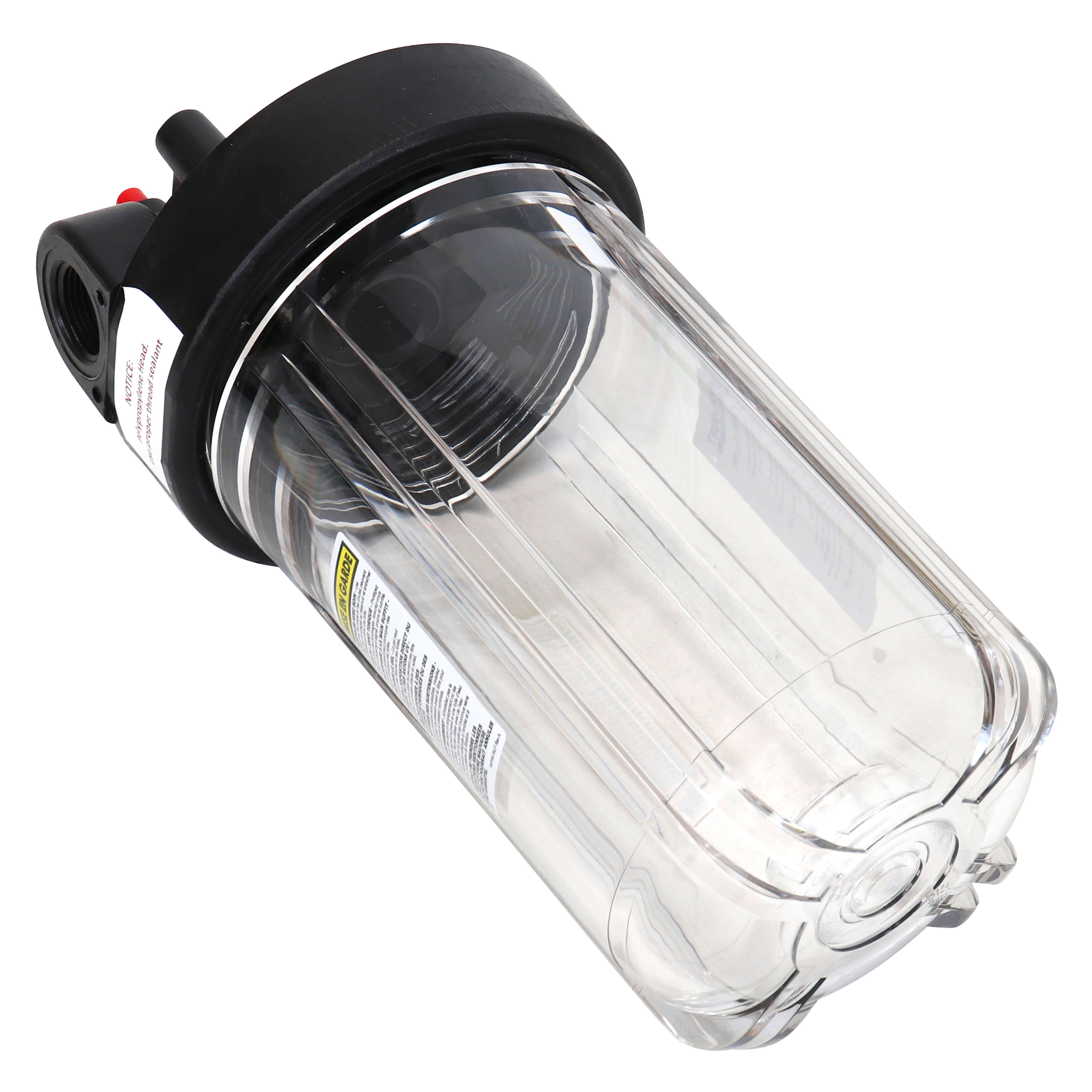

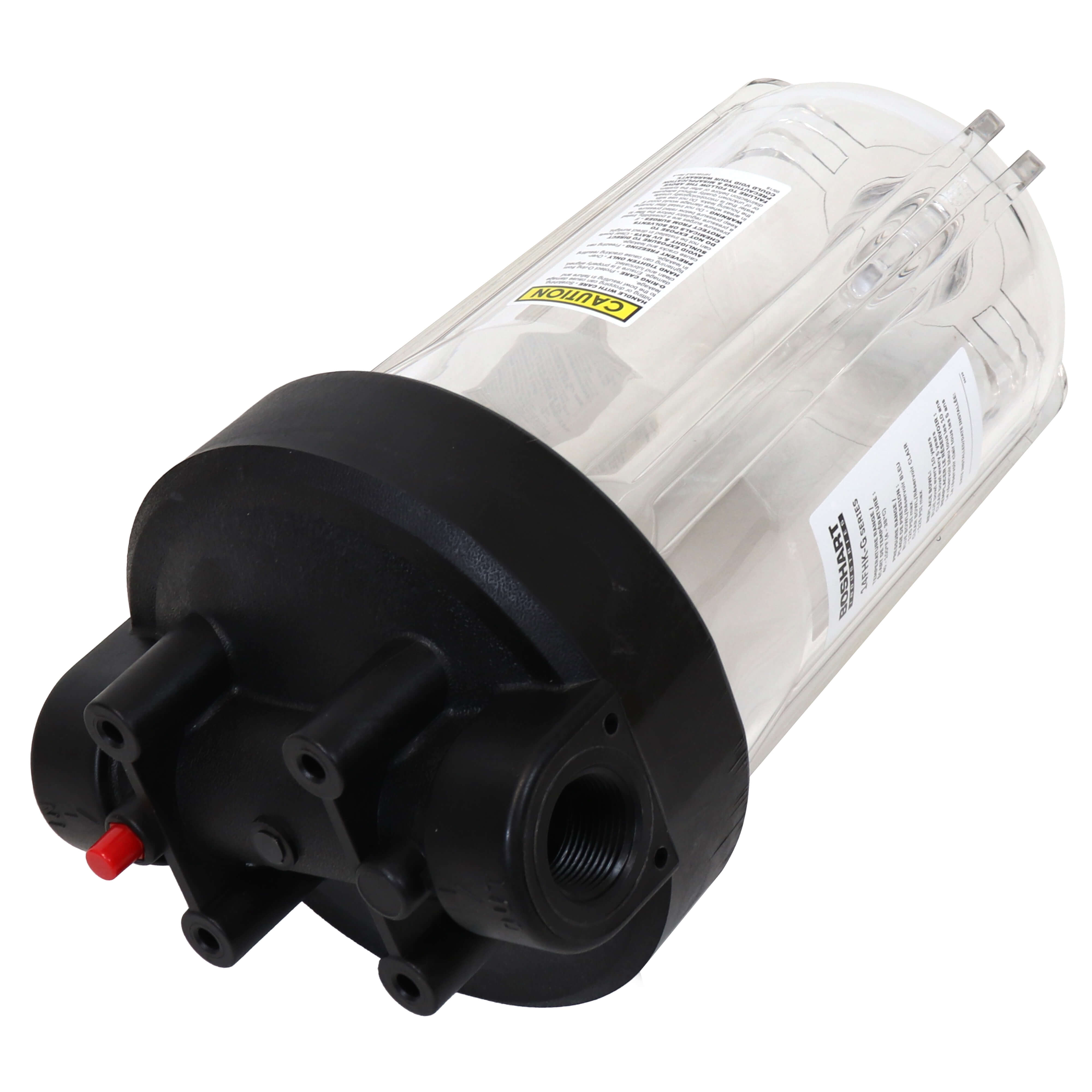

Boshart 14FHK-GC-1010 10in Giant Clear Housing Kit

Product Description

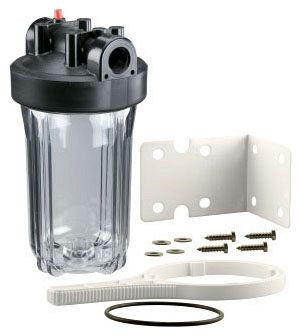

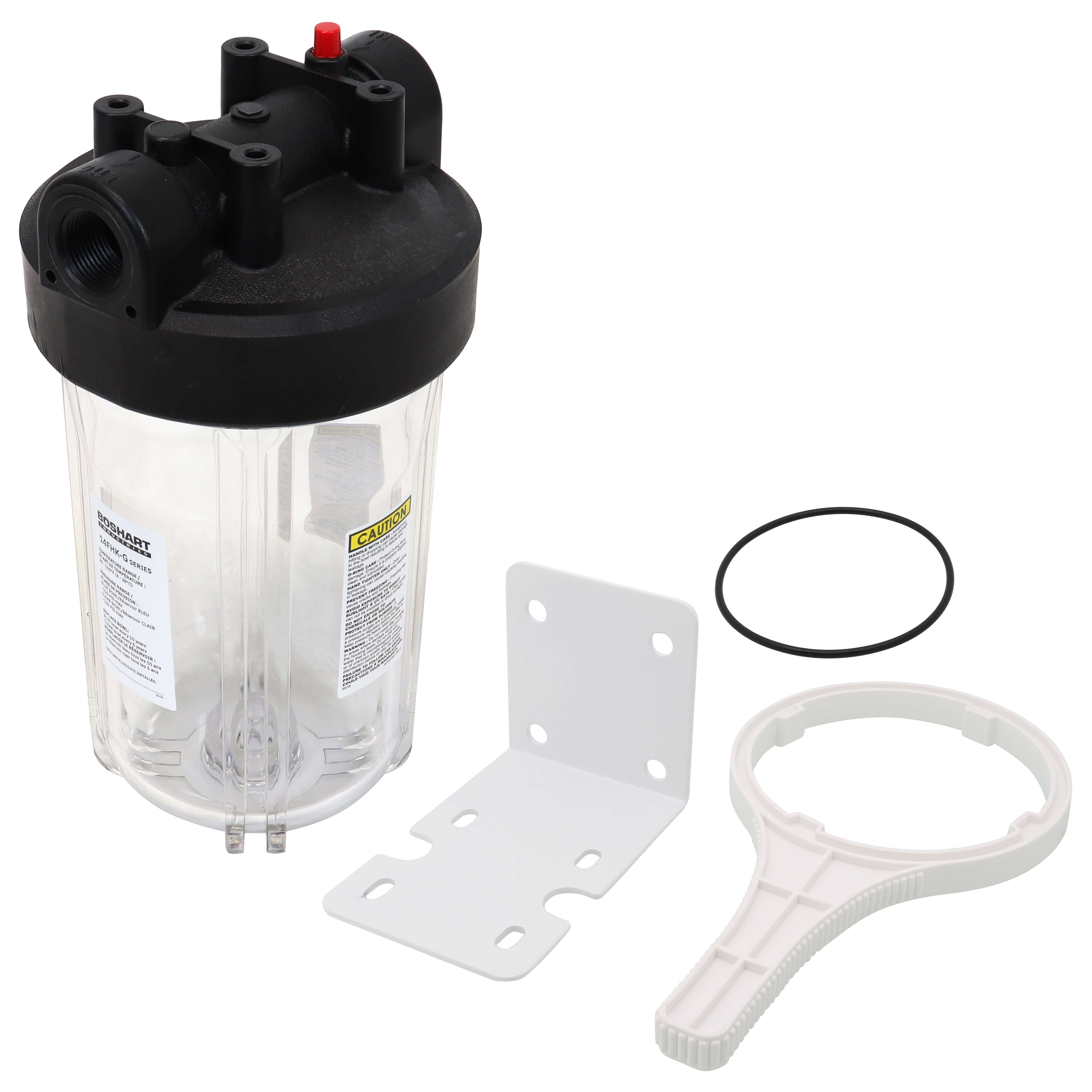

The BOSHART 14FHK-GC-1010 is a 10in giant clear housing kit suitable for agriculture, water well, point of use, greenhouse/drip irrigation, whole house residential and recreational vehicle applications. It features a threaded inlet and outlet with a pressure relief button. The housing kit comes complete with filter housing, O-rings, mounting bracket & hardware, and filter bowl wrench. Accepts "G" model 10" cartridges (not included).

• Whole House
• Heavy-Duty
• 10" Height

Product Highlights

This filter housing has a max pressure rating of 90 PSI and a temperature rating of 39-100°F (4-38°C). It is designed for high flow applications and conforms to ANSI/ASME B1.20.1 standards.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 14FHK-GC-1010

Technical Specifications

• Threads: Conform to ANSI/ASME B1.20.1
• Max Pressure Rating: 90 PSI
• Temperature Rating: 39 to 100 deg F
• Accepts: "G" model 10" cartridges (not included)
• Application: Point of Entry
• Product Type: Filter Housing
• Connection Type: NPT
• Max Pressure (PSI): 90
• Max Water Temp (°F): 100°F
• Inlet Size: 1"
• Outlet Size: 1"
• Diameter (Inches): 7.4"
• Type: Whole House
• Height: 13.51 in
• Used With: FG15B-KS, FC15B, FM15B, FP15B
• Brand: Boshart Industries
• Domestic/Import: Import
• Flow Rate: 13 gpm
• Material: Polypropylene
• Port Size: 1 in FNPT
• Series: 14FHK-GC Series
• Working Pressure: 90 psi
• Master UPC: 77780848315
