Boshart 14FHK-GC-1007 10 inches Giant Clear Housing Kit, 3/4 inches NPT

Product Description

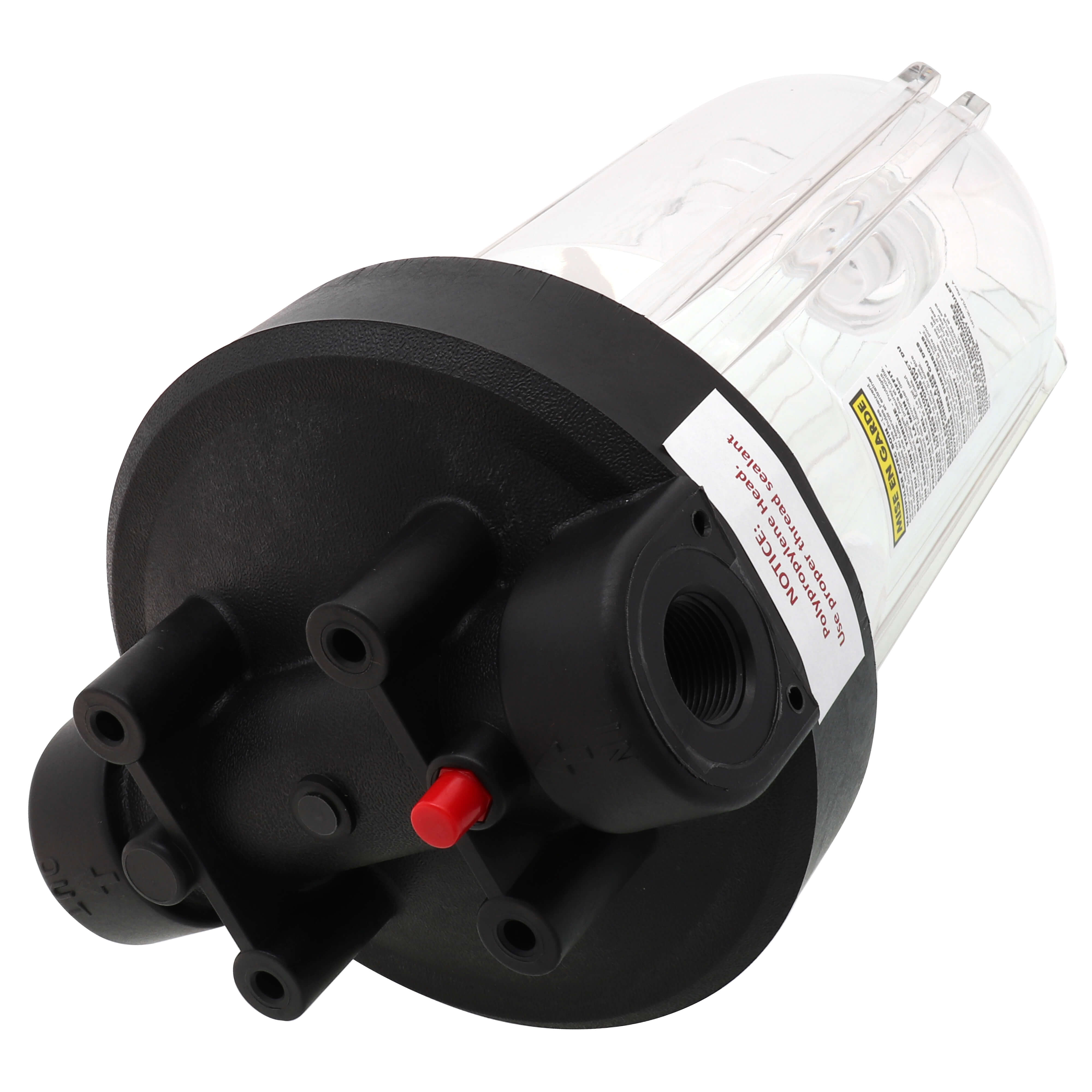

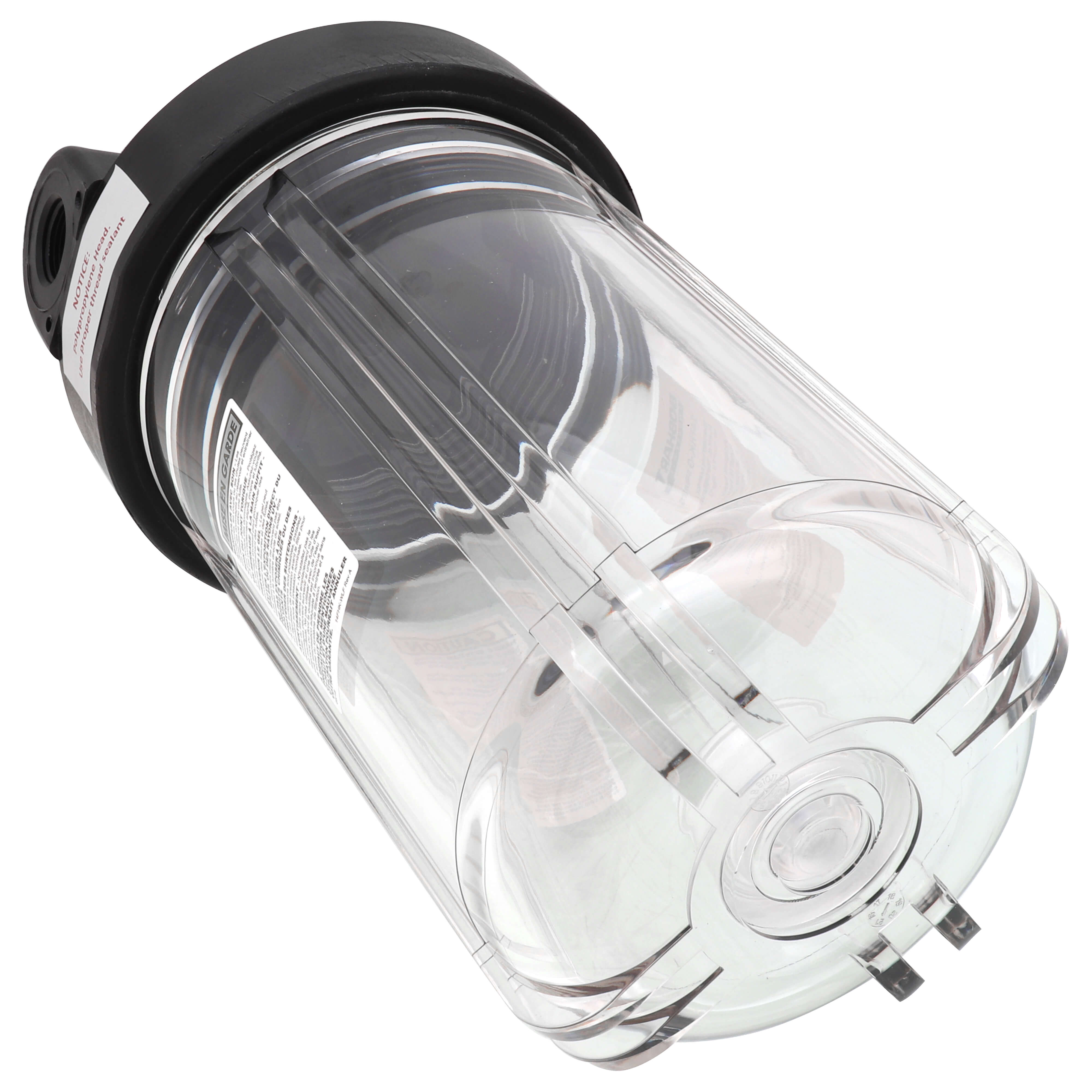

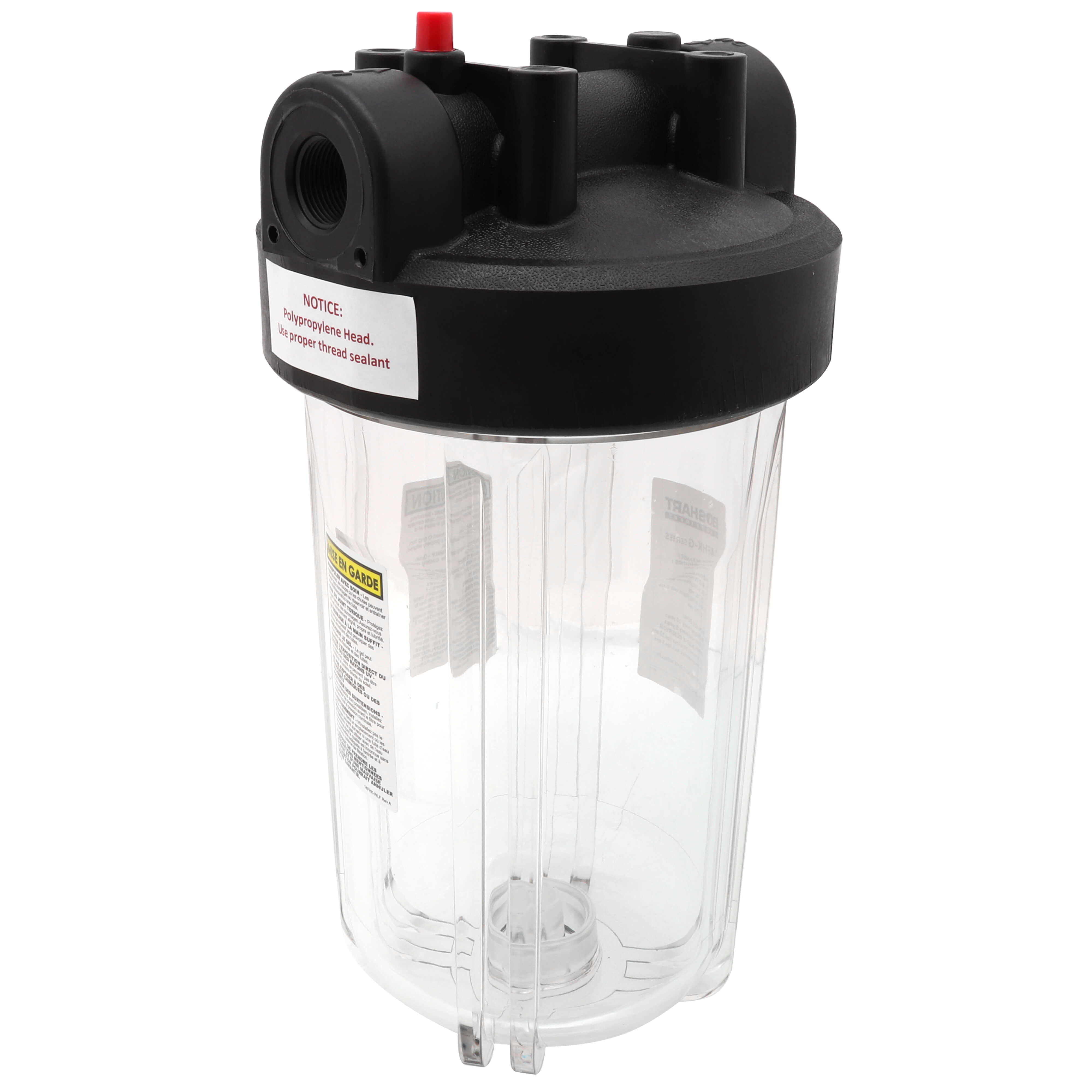

The BOSHART 14FHK-GC-1007 is a filter housing kit with threads conforming to ANSI/ASME B1.20.1. It has a large capacity suitable for high flow applications. The filter head includes a pressure relief button on the inlet side and mounting bosses molded in the head for bracket installation. Accepts "G" model 10" cartridges (not included).

• Threads conform to ANSI/ASME B1.20.1
• Max Pressure Rating: 90 PSI
• Temperature Rating: 39-100°F (4-38°C)

Product Highlights

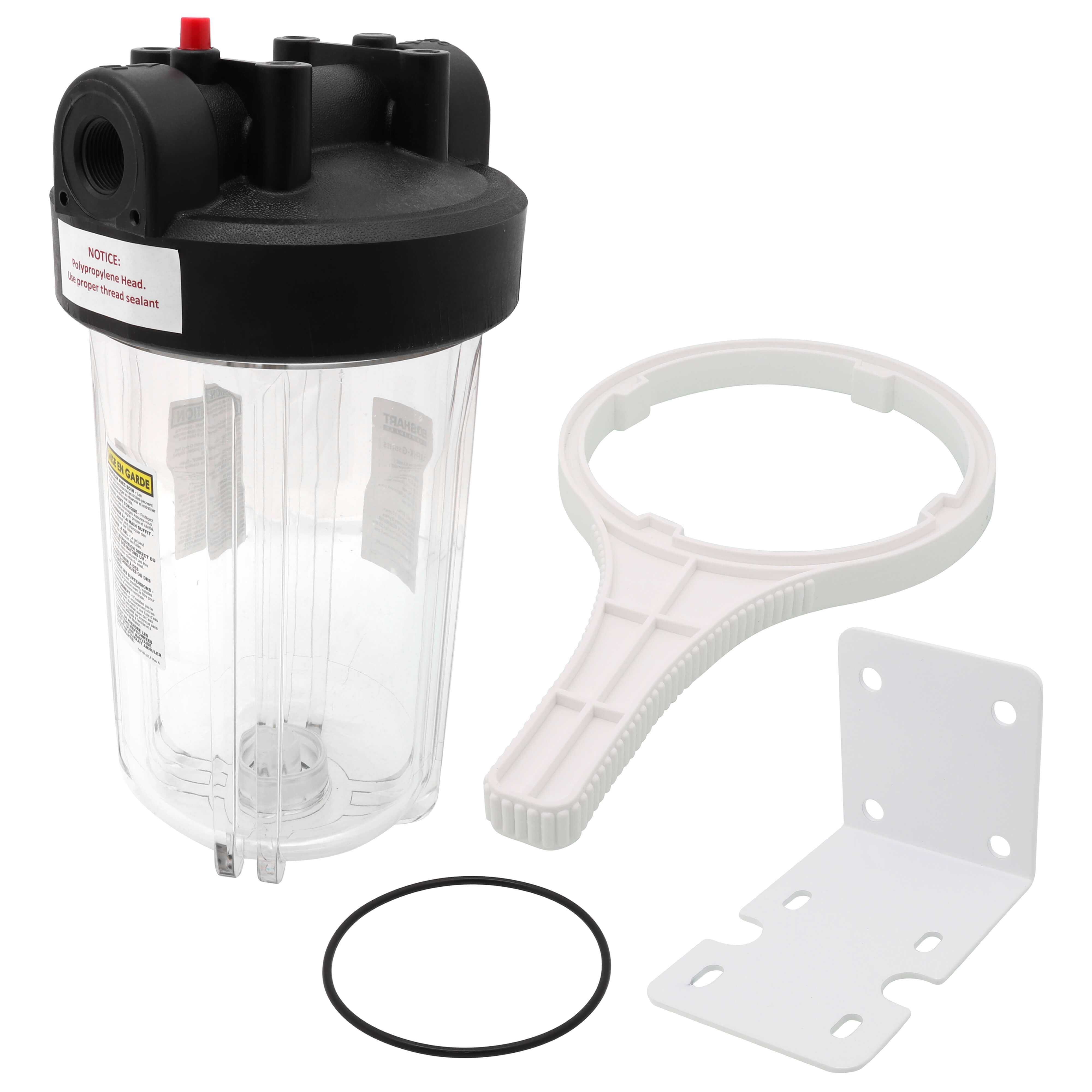

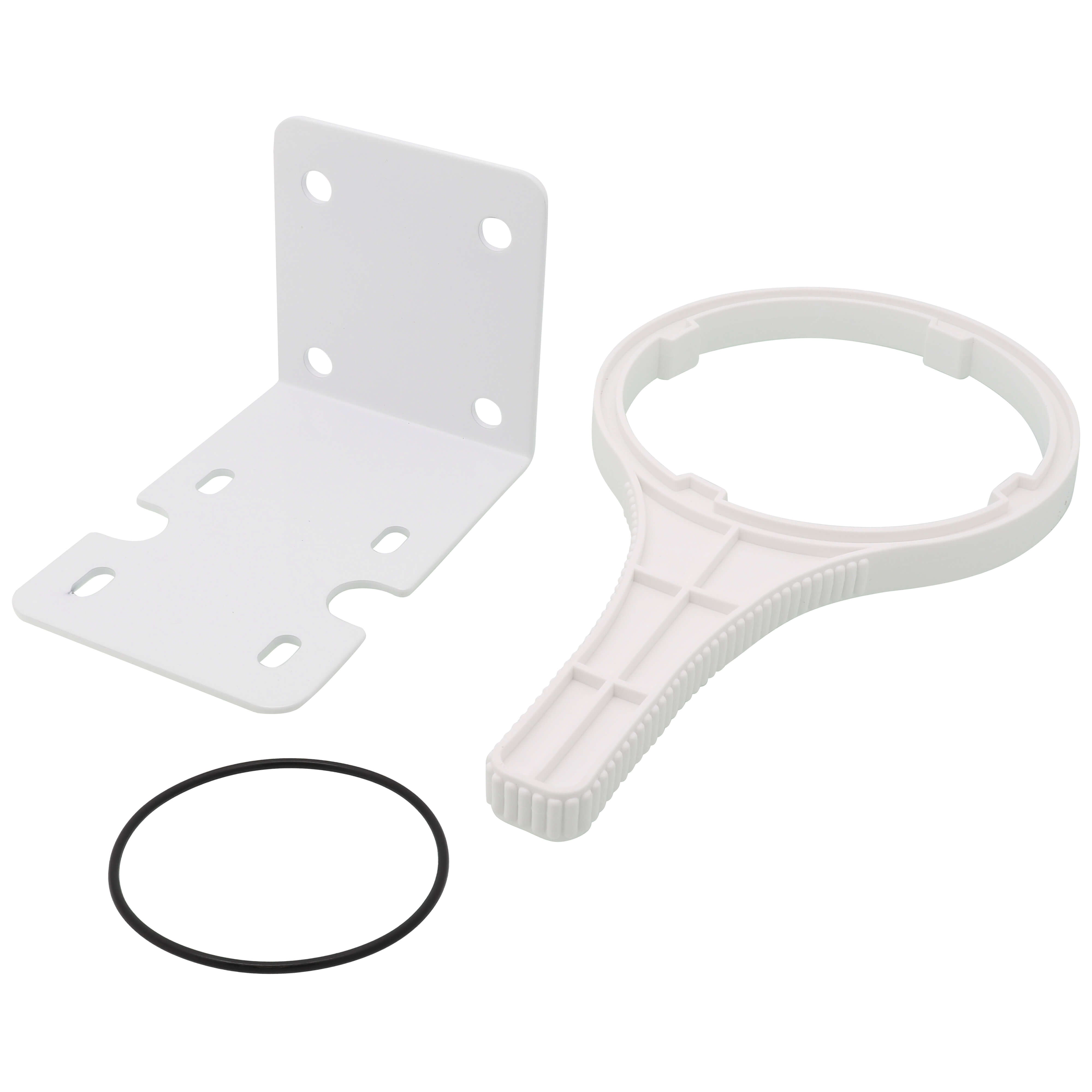

This filter housing kit comes complete with filter housing, one installed O-ring plus one replacement O-ring, mounting bracket & hardware, and filter bowl wrench.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 14FHK-GC-1007

Technical Specifications

• Threads: Conform to ANSI/ASME B1.20.1
• Max Pressure Rating: 90 PSI
• Temperature Rating: 39-100°F (4-38°C)
• Accepts: "G" model 10" cartridges (not included)
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection Type: NPT
• Max Pressure (PSI): 90
• Max Water Temp (°F): 100°F
• Diameter (Inches): 7.4
• Housing Color: Clear
• Product Type: Filter Housing
• Application: Point of Entry
• Height: 10"
• Type: Whole House, Heavy-Duty
