Boshart 14FHK-GB-2010 20 inches Giant Blue Housing Kit 1 inches NPT

Product Description

The BOSHART 14FHK-GB-2010 is a heavy-duty, whole house filter housing kit designed for point of entry applications. This 20-inch giant blue housing kit features 1-inch NPT inlet and outlet connections, conforming to ANSI/ASME B1.20.1 thread standards. It can withstand a maximum pressure of 90 PSI and operates within a temperature range of 39-100°F (4-38°C), making it suitable for high flow applications in residential or agricultural settings.

• Designed for Point of Entry applications
• Filter head includes pressure relief button on inlet side
• Molded mounting bosses for easy installation with mounting bracket

Product Highlights

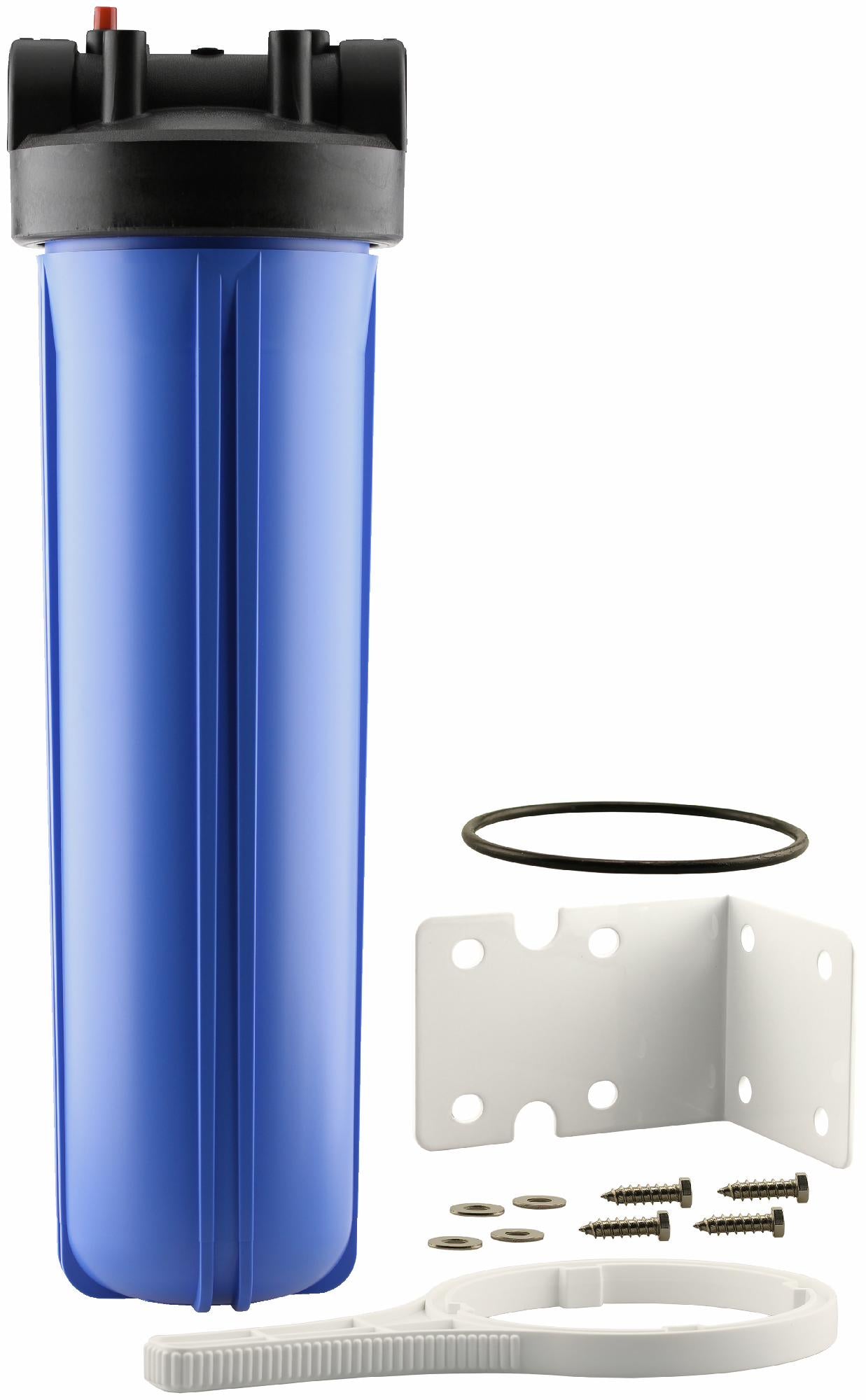

Complete kit with filter housing, O-rings, mounting bracket, hardware, and filter bowl wrench, accepting "G" model 20" cartridges.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 14FHK-GB-2010

Technical Specifications

• Type: Heavy-Duty, Whole House
• Height: 20"
• Inlet Size: 1"
• Application: Point of Entry
• Outlet Size: 1"
• Product Type: Filter Housing
• Housing Color: Blue
• Connection Type: NPT
• Diameter: 7-2/5"
• Max Pressure: 90 PSI
• Temperature Rating: 39-100°F (4-38°C)
• Thread Standard: ANSI/ASME B1.20.1
• Head Material: polypropylene
• Bowl Material: polypropylene
