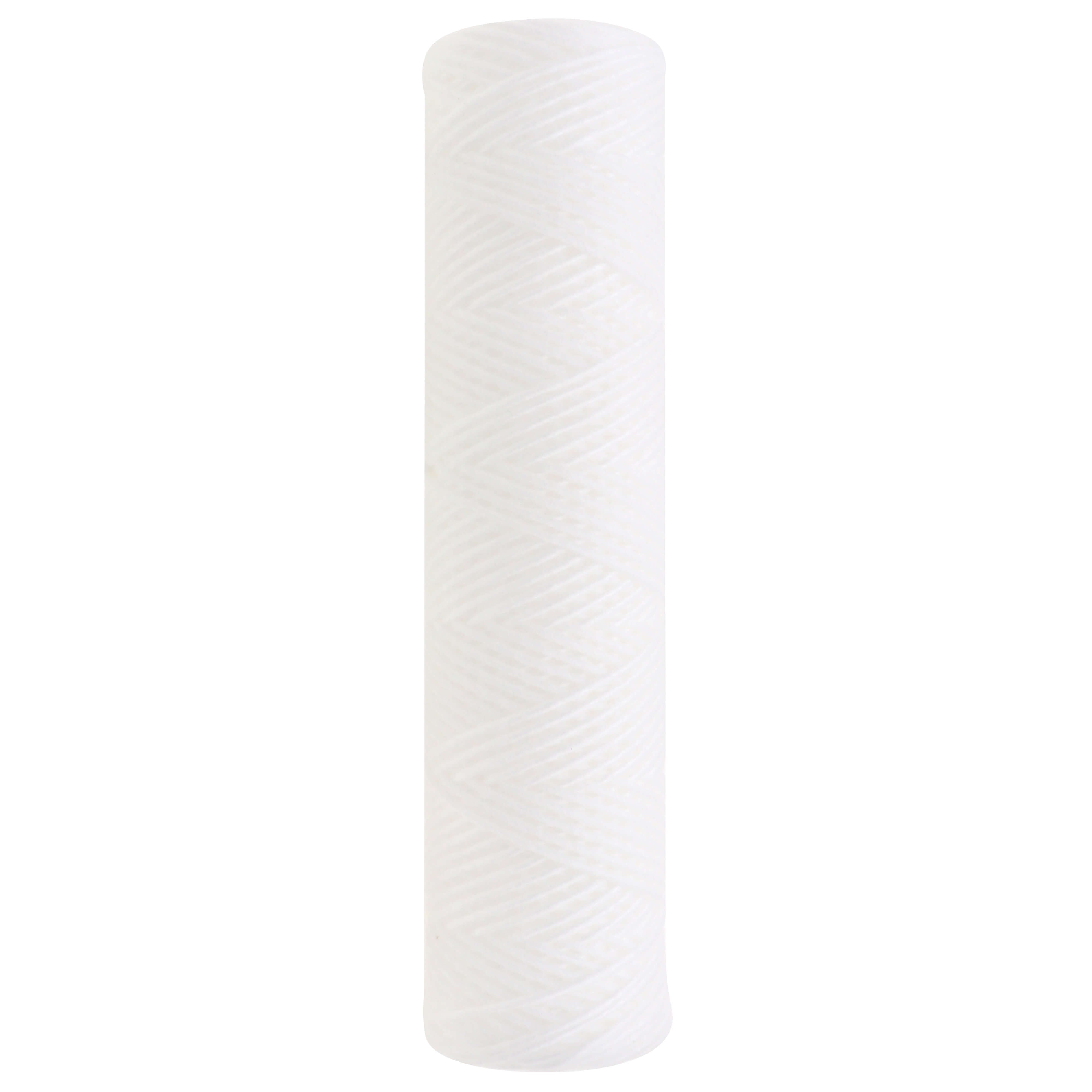

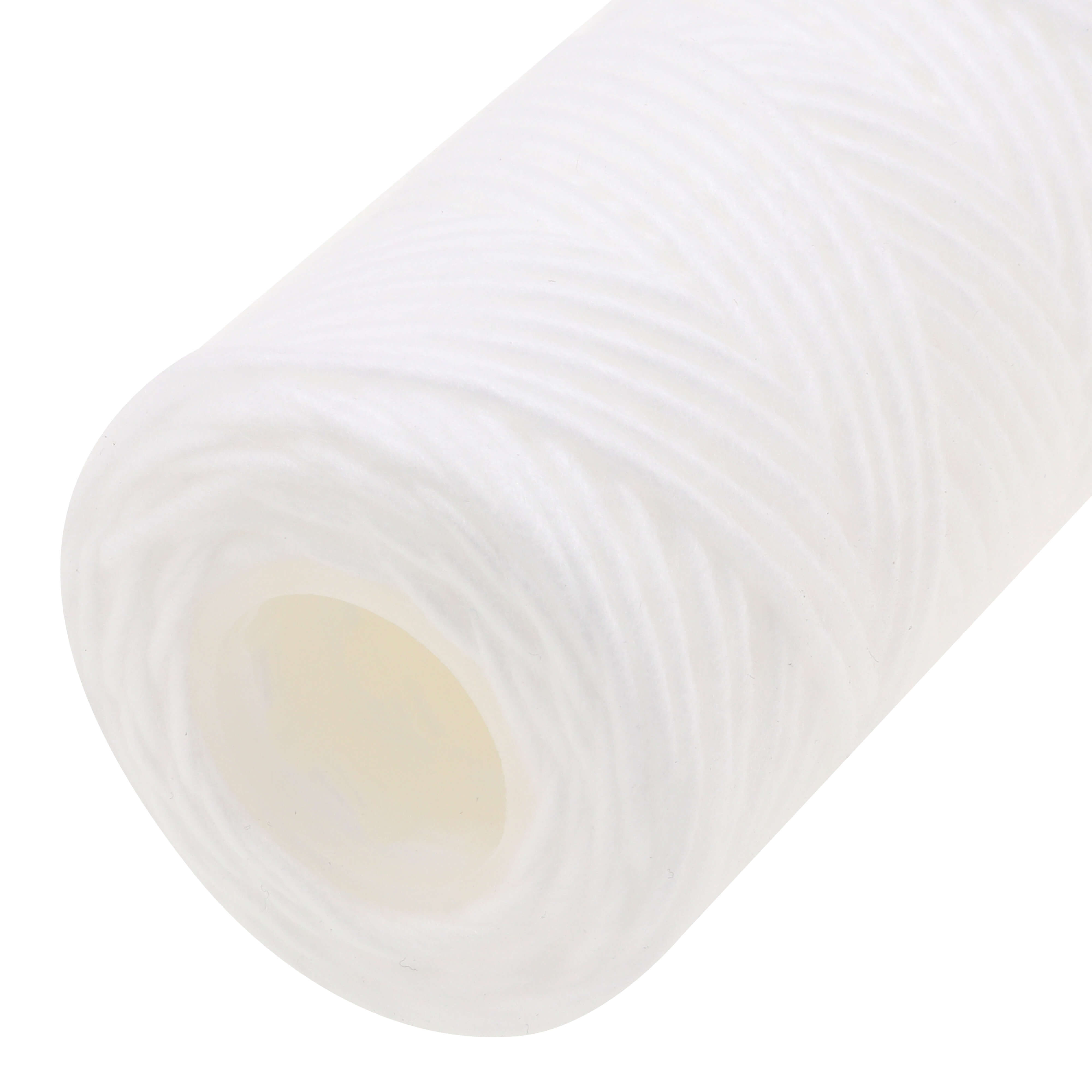

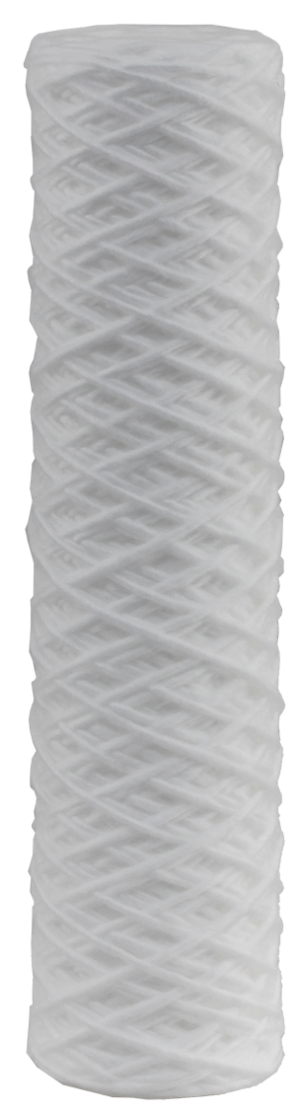

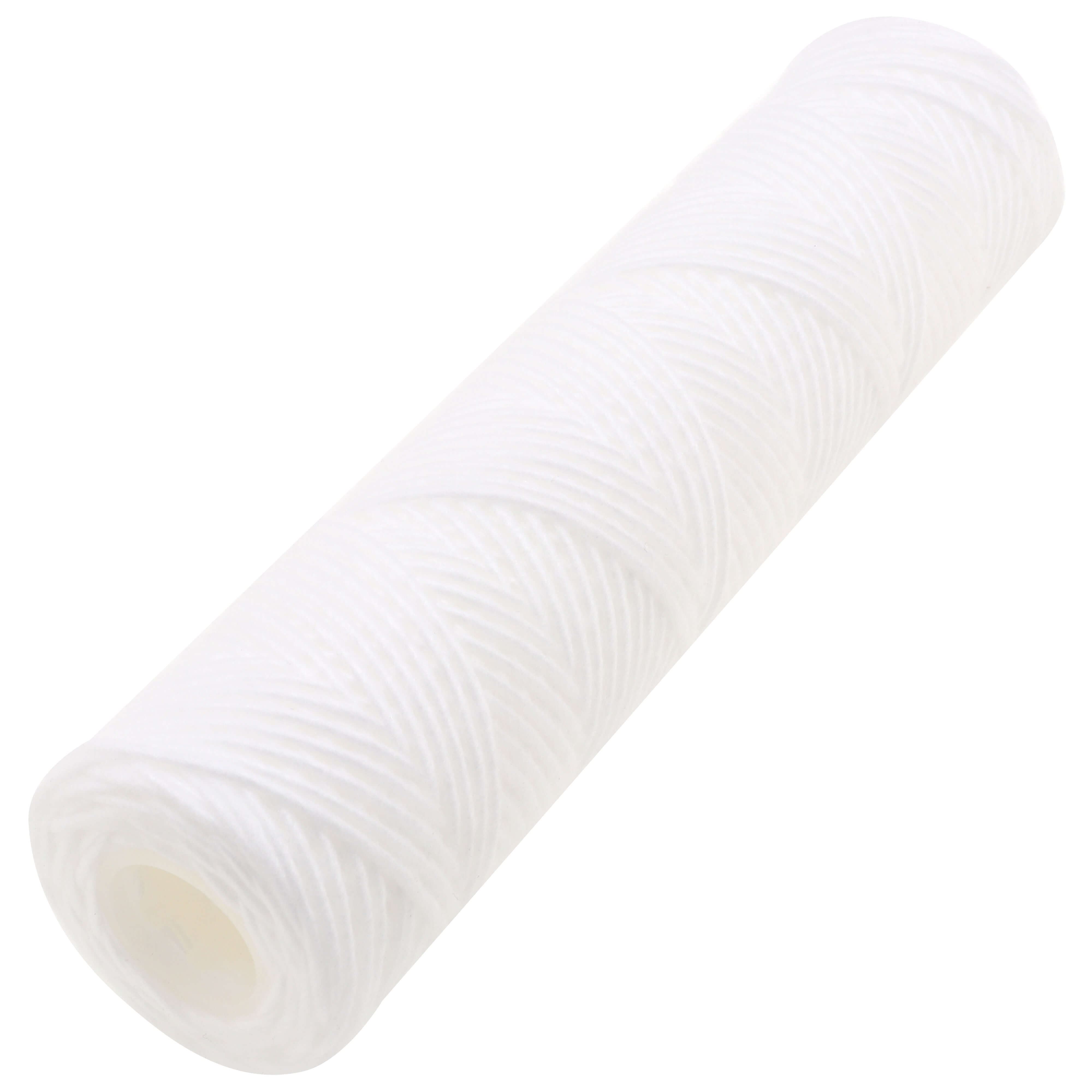

Boshart 14-SWP1-10 10 Micron 10 inches Standard String Wound

Product Description

The BOSHART 14-SWP1-10 is a 10 micron string wound filter cartridge manufactured from FDA grade polypropylene, suitable for potable water filtration. Ideal for removing fine to coarse sediment at ambient temperatures. The cartridge is made by diagonally winding fibers on a center core, creating tapered passageways for efficient filtration throughout the cartridge, not just on the surface.

• Manufactured from FDA grade polypropylene
• Suitable for potable water filtration
• 10 Micron Rating

Product Highlights

Effectively filters sediment with its string wound design, ensuring clean water for various applications.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 14-SWP1-10
• Country of Origin: Canada

Technical Specifications

• Materials of construction: 100% melt-blown micron-denier polypropylene fiber
• Filter structure: Gradient four (4) layer (outside-in), varied micron rate filter structure
• Purity: 100% high purity polypropylene which is surfactant free, binder free and adhesive free
• Chemical resistance: Good chemical resistance and is not prone to bacterial attack
• NSF/ANSI Standard: 42
• Size: 2-1/2" x 9-7/8"
• Filter Media: Polypropylene
• Core Material: Polypropylene
• Micron Rating: 10.00
• Temperature Range: Up to 120°F (49°C)
• Pressure Drop @ Flow Rate: 1 PSI @ 3 GPM
• Construction: Diagonal Winding
• Total Length: 9 7/8" (10")
• Total Width: 2 1/2"
• Temperature Rating: 140°F (60°C)
