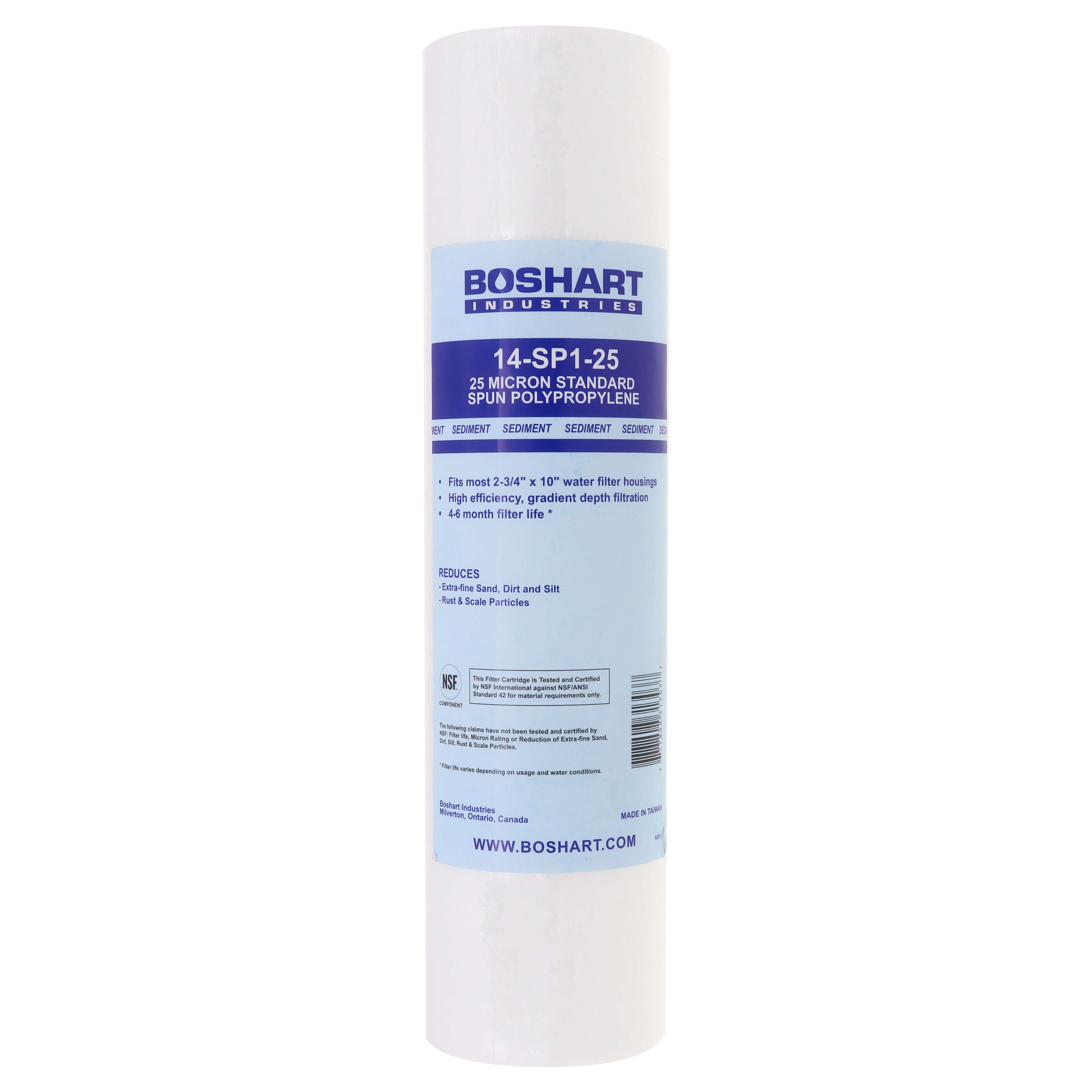

Boshart 14-SP1-25 25 Micron 10 inches Standard Spun Poly Sediment Cartridge

Product Description

The BOSHART 14-SP1-25 is a 25 Micron 10" Standard Spun Poly Sediment Cartridge suited for residential, commercial, and industrial applications. The non-woven polyester filter media is pleated around a polypropylene core for added strength and stability. The pleated surface area provides greater sediment and dirt holding capacity while maintaining flow rate and reducing initial pressure drop.

• Greater sediment and dirt holding capacity.
• Maintains flow rate and reducing initial pressure drop.
• Suitable for residential, commercial and industrial applications.

Product Highlights

This filter cartridge is manufactured with melt blown technology into a multi-layer structure to provide superior filter efficiency, pressure drop and cartridge life.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 14-SP1-25

Technical Specifications

• Filter Media: Non-woven polyester
• End Caps: Polypropylene with TPR Gasket
• Core: Polypropylene
• Temperature rating: 40°F to 125°F (4.4°C to 51.7°C)
• NSF/ANSI Standard: 42
• Product Type: Filter Cartridge
• Application: Point of Entry
• Type: Sediment
• Filter Type: Spun Fibers
• Material: Polypropylene
• Flow Rate (GPM): 12
• Micron Rating: 25
• Height: 10"
• Diameter (Inches): 2-1/2"
• Reduction Claim: Sediment
• Max Water Temp (°F): 125°F
• Pack Type: Individual
• Size: 2-1/2" x 9-7/8"
• Temperature Range: Up to 125°F (52°C)
• Pressure Drop @ Flow Rate: 1 PSI @ 12 GPM
• Maximum operating temperature rating: 140°F (60°C)
