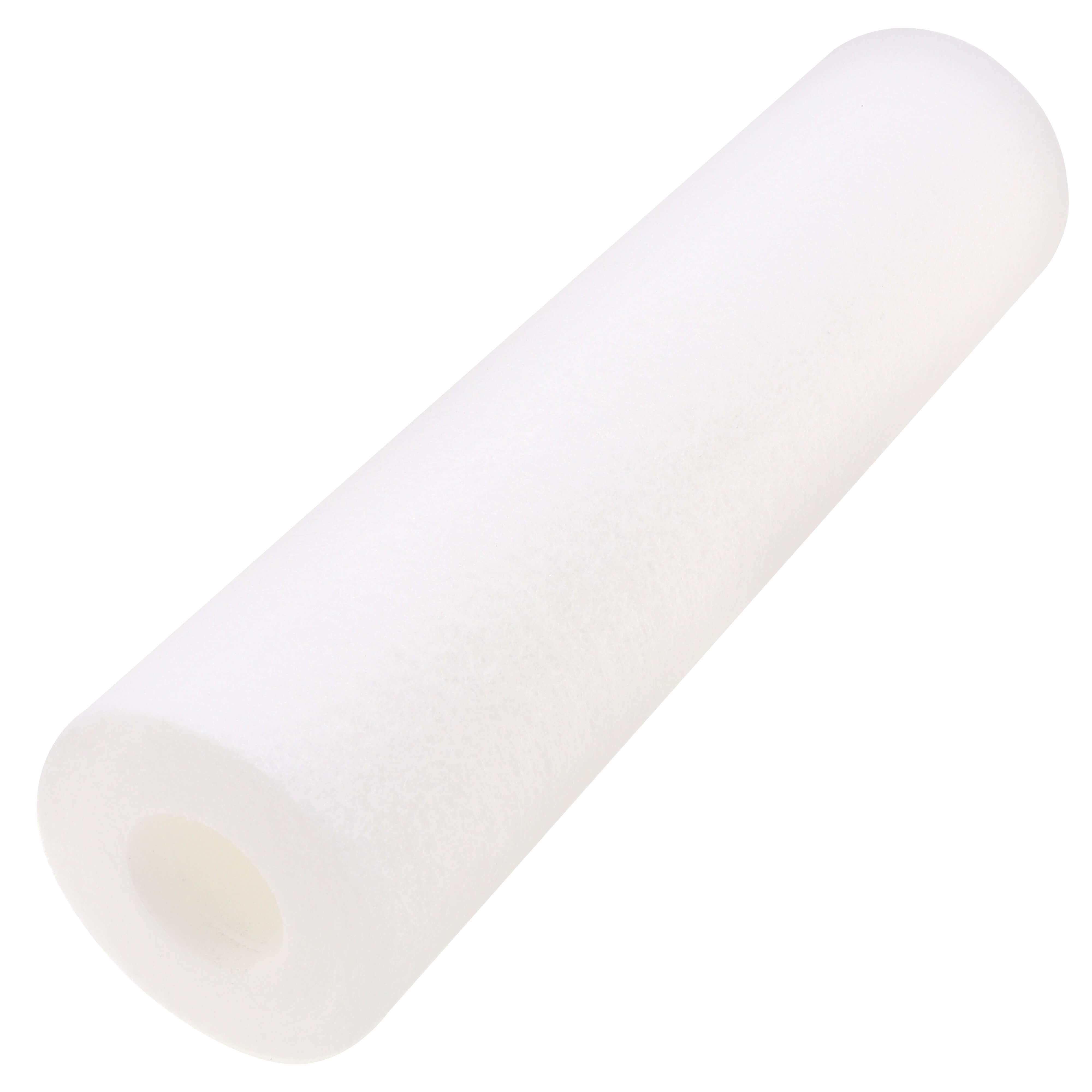

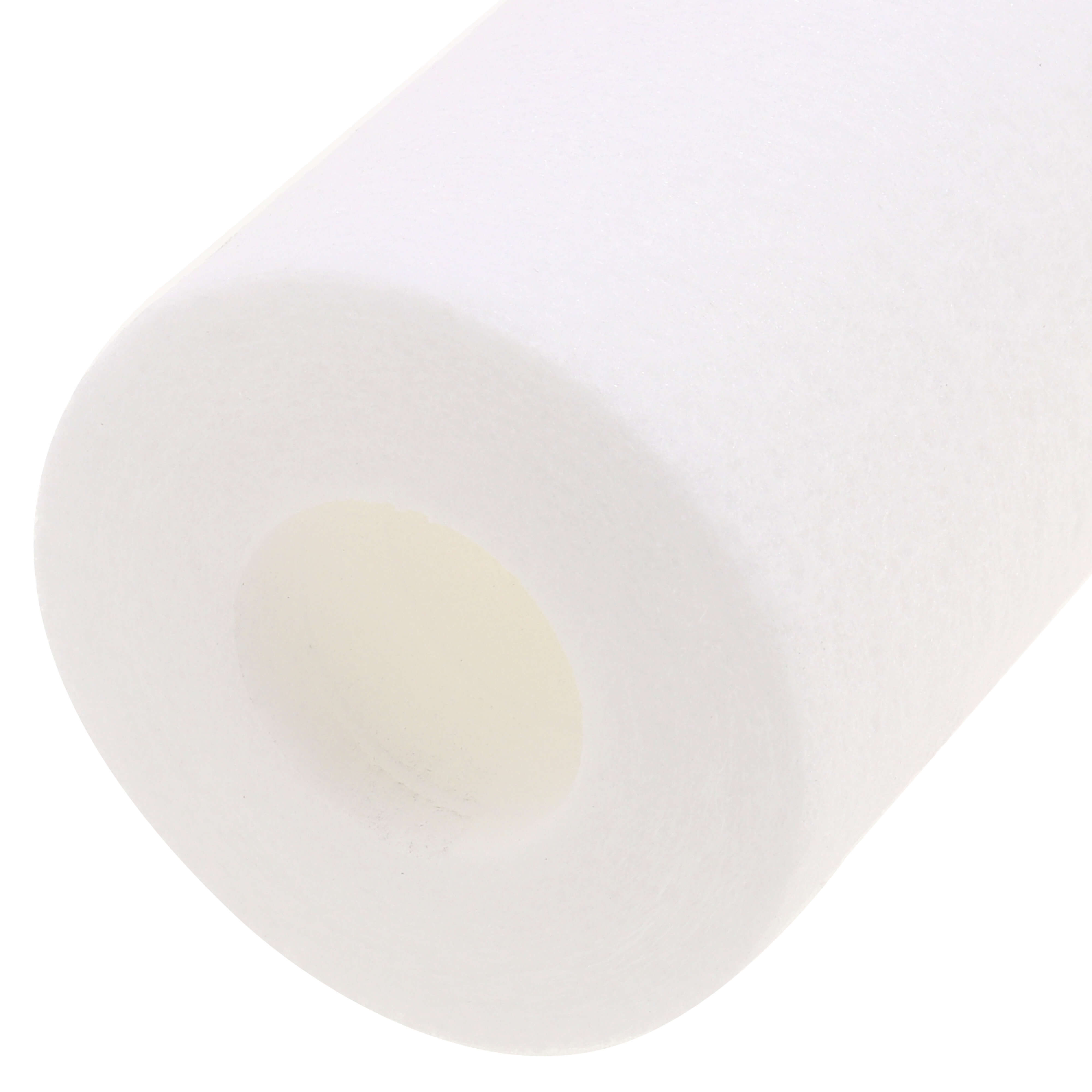

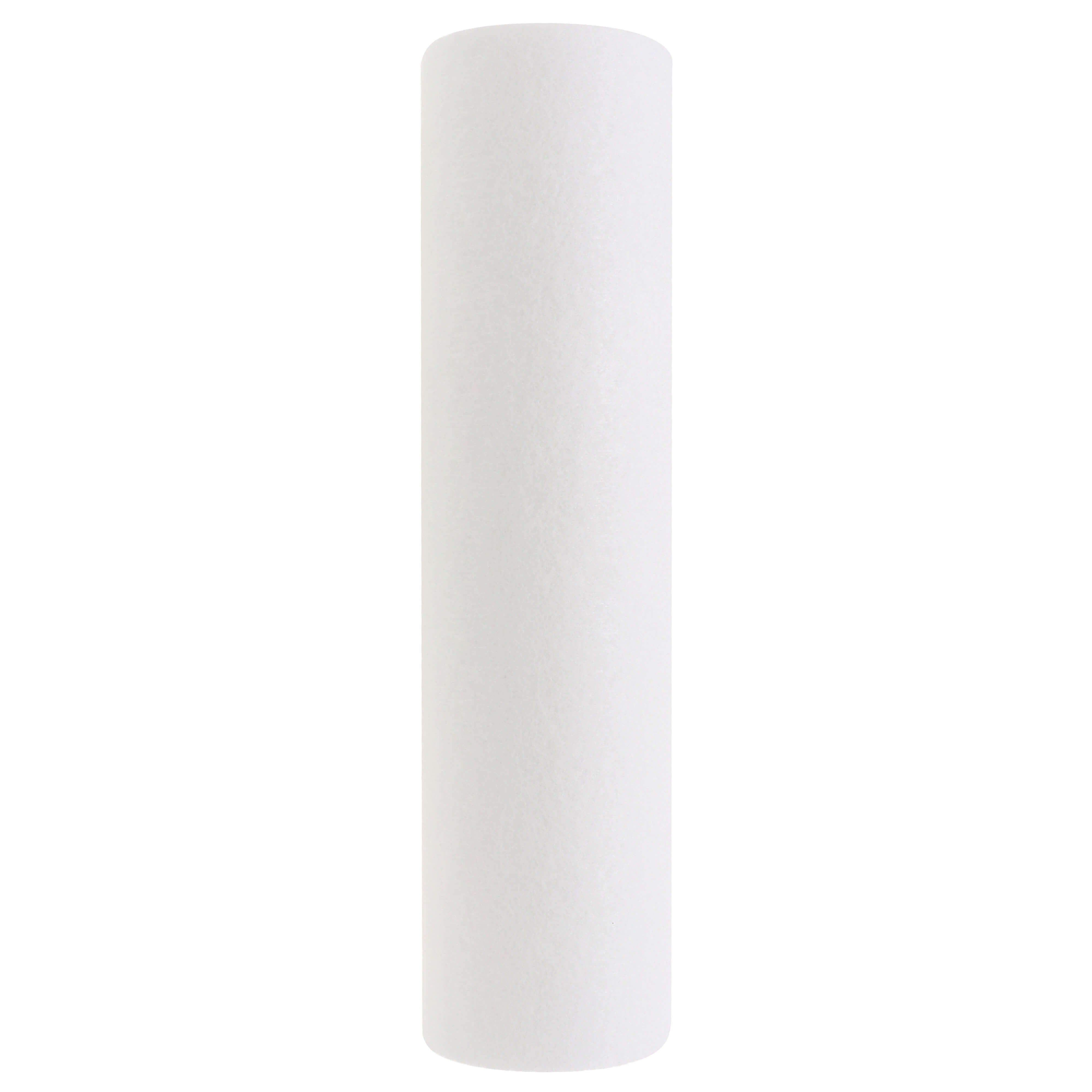

Boshart 14-SP1-05 5 Micron 10 inches Standard Spun Poly Sediment Cartridge

Product Description

The BOSHART 14-SP1-05 polyester pleated filters are suited for residential, commercial and industrial applications. The non-woven polyester filter media is pleated around a polypropylene core for added strength and stability. The pleated surface area provides greater sediment and dirt holding capacity while maintaining flow rate and reducing initial pressure drop.

• Sediment filtration
• 10" length
• Made with polypropylene

Product Highlights

This filter cartridge is ideal for point-of-entry sediment filtration with a 5 micron rating and a maximum temperature of 125°F.

Product Information

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 14-SP1-05

Technical Specifications

• Filter Media: Non-woven polyester
• End Caps: Polypropylene with TPR Gasket
• Core: Polypropylene
• Temperature rating: 40°F to 125°F (4.4°C to 51.7°C)
• NSF/ANSI Standard: 42
• Product Type: Filter Cartridge
• Application: Point of Entry
• Type: Sediment
• Filter Type: Spun Fibers
• Material: Polypropylene
• Flow Rate (GPM): 5
• Micron Rating: 5
• Height: 10"
• Diameter (Inches): 2-1/2"
• Reduction Claim: Sediment
• Max Water Temp (°F): 125°F
