Boshart 07st-25sfh-2 Ss Tank Tee Short 1 Inch Fpt

Product Description

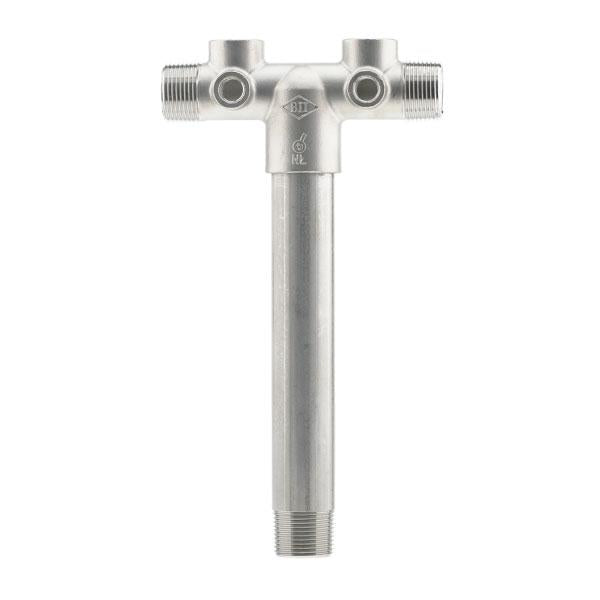

The BOSHART 07st-25sfh-2 is a short-pattern stainless steel tank tee fitting designed to connect a pressure tank to a water supply system. Built with a heavy-duty 304 stainless steel head casting and a 304 stainless steel Schedule 40 pipe nipple leg, this fitting is engineered for durability in potable water and well system applications. It features 1-inch female pipe thread (FPT) connections on all ports. The pipe nipple dimensions conform to ASTM A733, and the base materials conform to ASTM A312 for welded pipe. Threads are cut to ANSI/ASME B1.20.1 standards, ensuring reliable, leak-free engagement with standard NPT fittings.

This tank tee is suited for residential and light commercial water system installations where a pressure tank must be integrated into the supply line. It serves as a multi-port connection point, allowing the tank, pressure switch, gauge, and supply line to tie into a single fitting. Plumbers and well system installers typically use this fitting when setting up or replacing bladder-type or diaphragm pressure tanks in well water systems. The short-body design suits applications where clearance between the tank and the plumbing assembly is limited.

Key Features

• Heavy-duty 304 stainless steel head casting for corrosion resistance in water system environments
• 304 stainless steel Schedule 40 pipe nipple leg conforming to ASTM A733
• Materials conform to ASTM A312 for welded pipe construction
• Threads machined to ANSI/ASME B1.20.1 for standard NPT compatibility
• Short-pattern body for installations with limited vertical clearance
• Rated for ambient working temperatures from -20 to 100 degrees F (-29 to 38 degrees C)

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial pressure tank plumbing assemblies using 1-inch FPT connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve all system pressure before removing or installing tank tee fittings. Apply thread sealant or PTFE tape rated for potable water systems to all threaded connections. Do not over-torque stainless steel fittings, as galling can occur on threaded joints.

Technical Specifications

• Material: 304 Stainless Steel
• Connection Type: Female Pipe Thread (FPT)
• Thread Size: 1 inch
• Pipe Nipple Standard: ASTM A733
• Base Material Standard: ASTM A312 Welded Pipe
• Thread Standard: ANSI/ASME B1.20.1
• Working Temperature Range: -20 to 100 degrees F (-29 to 38 degrees C)

Standard Information

• Brand: BOSHART
• Manufacturer Part Number: 07st-25sfh-2
