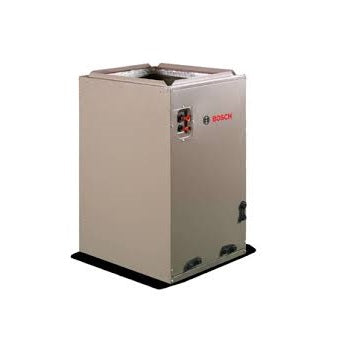

Bosch Thermotechnology 8733947952 BMAC3036CNTD A-Coil 3 Ton

Product Description

The Bosch Thermotechnology 8733947952 BMAC3036CNTD A-Coil has approval for both upflow and downflow installations, as well as vertical and horizontal configurations. This coil is designed to be installed downstream of the furnace in the air outlet for optimal performance. It pairs seamlessly with Bosch ASHP Condensing Section (BOVA2.0), Bosch 96% AFUE Furnace (BGH96), or Bosch WSHP Condensing Section (SM Split).

• Approved for various installation orientations: upflow, downflow, vertical, and horizontal.
• Constructed from all aluminum for enhanced corrosion resistance.
• Compatible with multiple Bosch systems.

Product Highlights

This A-Coil supports efficient operation in various applications and is built to last.

Product Information

Standard Information

• Manufacturer Name: Bosch Thermotechnology
• Model: BMAC3036CNTD

Technical Specifications

• Capacity: 3 Ton
• Width: 21 inches
• Unit Height: 20 inches
• Supply Duct: 19-1/2 inches
• Liquid/Vapor Line: 3/8 inches / 3/4 inches
• Cooling Capacity: 32,400 BTU/hr
• Nominal Capacity: 36,000 BTU/hr
• Refrigerant Type: R-410A
• Air Flow Type: Multi-Position
• Liquid Line Size: 3/8 inches
• Mounting Type: Horizontal / Vertical
• Suction Line Size: 3/4 inches
• Tubing Material: Aluminum
• Construction: Standard
