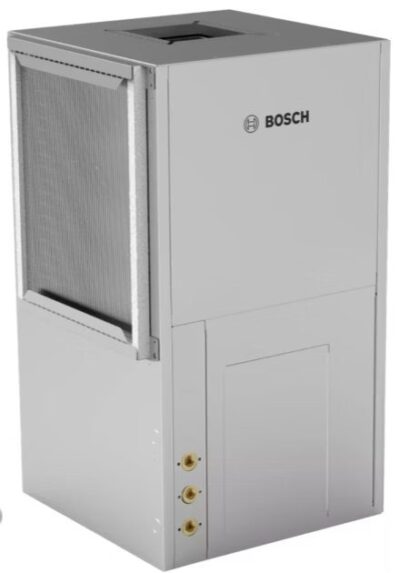

Bosch RL030-1VTN-LLTPDA water source heat pump 2 1/2 ton vertical left return top discharge

Product Description

The Bosch RL030-1VTN-LLTPDA is a 2 1/2 Ton Vertical Water Source Heat Pump designed for efficient heating and cooling in retrofits and new construction. This unit features a cupro-nickel coil, left return, and top discharge configuration, operating on 208-230/1/60 electrical supply. It utilizes R-454B refrigerant, an A2L refrigerant with a low global warming potential (GWP) of 466, meeting environmental requirements for water source heat pump systems.

• Easier serviceability with a swinging electrical box for access to the compressor and other internal components.
• Vertical units include better air coil serviceability and a slide out blower.
• Unique floating base compressor mounted on a heavy steel plate with high-density rubber isolation pad and rubber grommets for exceptionally quiet operation.

Product Highlights

Equipped with R-454B refrigerant for low global warming potential and designed for quiet, efficient operation in vertical configurations.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: RL030-1VTN-LLTPDA
• Country of Origin: USA

Technical Specifications

• Product Type: Water Source Heat Pump
• Tonnage: 2 1/2 Ton
• Orientation: Vertical
• Coil Material: Cupro-Nickel
• Return Air Configuration: Left Return
• Discharge: Top Discharge
• Input Voltage: 208-230V
• Phase: Single Phase
• Frequency: 60Hz
• Airflow Direction: Upflow
• Compressor Type: Rotary
• Return Air Filter Size: 18" x 22"
• Refrigerant Type: R-454B
• Refrigerant GWP: 466
• Cooling Capacity: 27,350 BTU/h
• Heating Capacity: 34,400 BTU/h
• EER: 13.77
• COP: 4.48
• Nominal Airflow: 950 CFM
• Recommended Loop Flow: 7.5 GPM
• Water Connection Type: 3/4 inch FPT
• Motor Type: PSC 0.25 HP
• Minimum Circuit Amps: 13.7A
• Maximum Fuse Size: 25A
• Compressor RLA: 11.9A
• Compressor LRA: 58.0A
• Metering Device: TXV
• Series: RL Series
• Stages: Single Stage
• Operating Voltage Range: 197V min / 253V max
• Control Board: UPM
• Transformer: 75VA factory installed
• Filter Type: 1 inch throwaway filter with 2-sided rack
