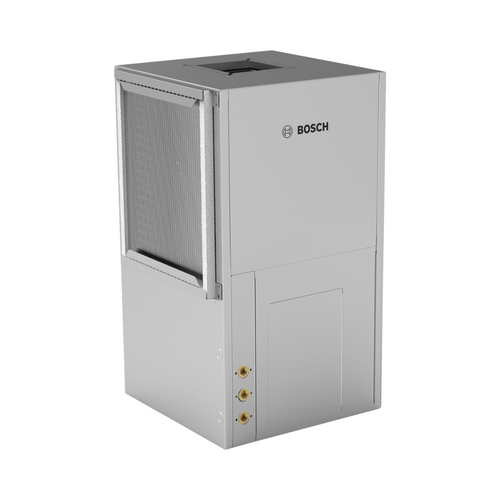

Bosch RL024-1VTN-LLTPDA 2 ton 14 EER water source heat pump cupro-nickel R454B refrigerant left return

Product Description

The BOSCH RL024-1VTN-LLTPDA is a 2 Ton 14 EER water source heat pump designed for efficient heating and cooling in residential, light commercial, and multi-family applications. Utilizing a stable water loop, this unit provides consistent year-round comfort with a Left Return air configuration. It operates on 1-phase, 60Hz electrical power with an input voltage range of 197/253V and uses R454B refrigerant. This ducted system is suitable for closed-loop, geothermal, and boiler/tower setups, offering improved energy efficiency and reduced operating costs.

• Water-to-Air Heat Exchange for stable performance.
• Flexible System Compatibility with modern controls.
• Quiet Indoor Operation due to insulated cabinet design.

Product Highlights

High-efficiency 2 Ton water source heat pump with 14 EER, R454B refrigerant, and left return for consistent heating and cooling.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: RL024-1VTN-LLTPDA

Technical Specifications

• Condition: New
• Operation: Heating & Cooling
• Low GWP: A2L Compatible
• EER: 14
• Mount Type: Ducted
• Fuel Type: Electric
• Heating BTU (Ground Water): 22,650
• EER (Water Loop): 14
• Maximum Overcurrent Protection: 20
• Heating BTU (Water Loop): 28,300
• Heating BTU (Ground Loop): 18,500
• Flow Rate (GPM): 6
• Electrical Phase: 1ph
• Loop Connection Size: .75”
• Electrical Frequency: 60hz
• Minimum Circuit Amps (MCA): 13.8
• Input Voltage: 197/253
• Product Category: Water Source Heat Pump
• Product Line: RL
• Refrigerant Type: R454B
• Return Air Location: Left
• Air Flow (CFM): 800
• Blower Motor Type: PSC
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Connection Type: MPT
• Capacity (Tons): 2
• Cooling BTU: 24,000
• Configuration: Vertical
• EER (Ground Water): 19.5
• Breaker Size (Amps): 20
• EER (Ground Loop): 14.7
