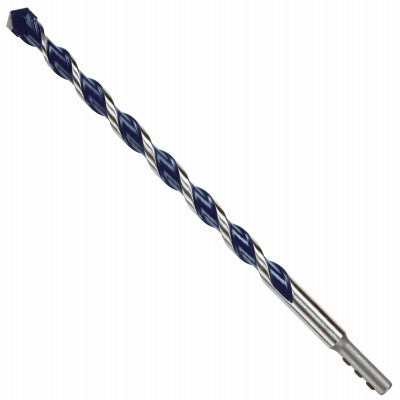

Bosch HCBG10T Blugranite Turbo Carbide Hammer Drill Bit 5pk

Product Description

The ROBERT BOSCH TOOL GROUP HCBG10T is a carbide hammer drill bit designed for drilling into brick, masonry, concrete, and similar hard materials. Part of the BluGranite Turbo series, it measures 5/16 inches in diameter with a 10 inch overall length and 7.5 inch flute length. The hex shank is impact rated, allowing use in both impact drivers and hammer drill/drivers. The 4-grind head adds two additional cutting angles compared to standard masonry bits, contributing to longer service life and faster drilling speeds. This package contains 5 bits. Licensed HVAC, plumbing, and electrical professionals working with masonry substrates, as well as specialty tradespeople, will find this bit suited to production-rate drilling tasks.

The HCBG10T is suited for residential and commercial applications where drilling into brick, block, or masonry is required. The impact-rated hex shank expands tool compatibility, making it viable for use with standard hammer drills and impact driver platforms. The milled U-flute geometry with deep cut spirals promotes rapid dust and debris evacuation from the hole, which is especially useful in overhead or deep-bore scenarios common in mechanical system rough-in work. The multi-grind carbide centering tip supports accurate bit placement on irregular or textured masonry surfaces.

Key Features

• 4-grind head provides additional cutting angles for faster penetration and extended bit life
• Multi-grind carbide centering tip enables accurate starts in brick and masonry
• Impact-rated hex shank compatible with impact drivers and hammer drill/drivers
• Milled U-flutes with deep cut spirals deliver fast dust removal during drilling
• Bosch-made carbide construction for durability under heavy load conditions
• Package includes 5 bits for production use or jobsite backup supply

Compatibility

Designed for use in standard hex-shank impact drivers and hammer drill/drivers. The impact-rated hex shank format fits tools accepting 1/4 inch or standard hex chuck adapters commonly found on hammer drill/driver platforms.

Installation Notes

Installation of this bit should be performed by qualified tradespeople familiar with rotary and hammer drilling techniques. Ensure the tool is powered off and the chuck is fully secured before inserting or removing the bit. Eye protection and dust mitigation measures are recommended when drilling masonry, in accordance with applicable jobsite safety requirements. Do not use in rotary-only mode on materials requiring hammer action, as this may reduce bit life and drilling efficiency.
