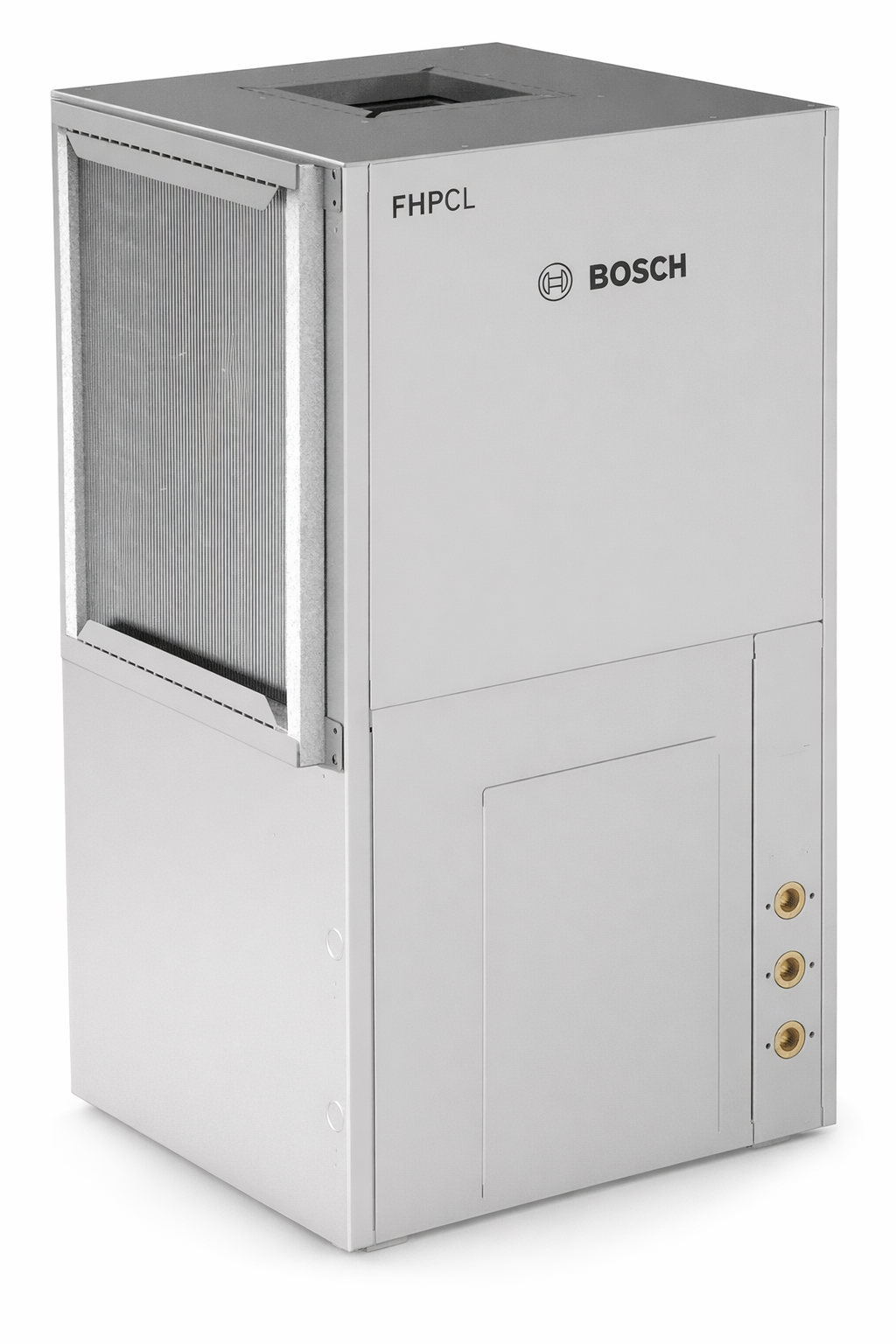

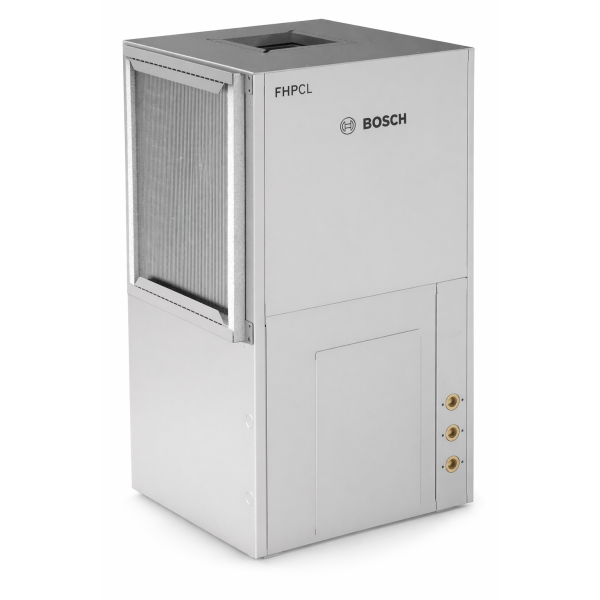

Bosch CL060-1VTC-LRT-PUA vertical water source heat pump 5 ton (right return)

Product Description

The Bosch CL060-1VTC-LRT-PUA is a commercial 5 ton vertical water source heat pump designed for water-loop and geothermal-style HVAC systems. The unit features right-hand return airflow, a compact vertical cabinet for mechanical room installation, and service access enhancements including a swinging electrical box and a slide-out blower. It is engineered for low-GWP R-454B (A2L) refrigerant and operates on 208/230 V single-phase power with a factory sound package.

• 5 ton (≈60,000 BTU class) vertical water source heat pump with right-hand return airflow
• Designed for R-454B (A2L) low-GWP refrigerant; electrical rating 208/230 V, 1-phase
• Service-friendly features: swinging electrical box and slide-out blower; factory sound package

Product Highlights

5 ton vertical WSHP, right return configuration, R-454B refrigerant, 208/230 V single-phase, service-access design

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: CL060-1VTC-LRT-PUA

Technical Specifications

• Brand: Bosch
• Model Number: CL060-1VTC-LRT-PUA
• Series: CL Series
• System Type: Water source heat pump (WSHP)
• Capacity: 5 Ton (≈60,000 BTU class)
• Configuration: Vertical
• Return Air: Right return
• Refrigerant: R-454B (A2L, low-GWP)
• Input Voltage: 208/230 V, 1-Phase
• Cabinet Type: Compact vertical cabinet
• Service Features: Swinging electrical box; slide-out blower
• Sound Attenuation: Factory sound package
• Typical Applications: Multifamily, office, light commercial
