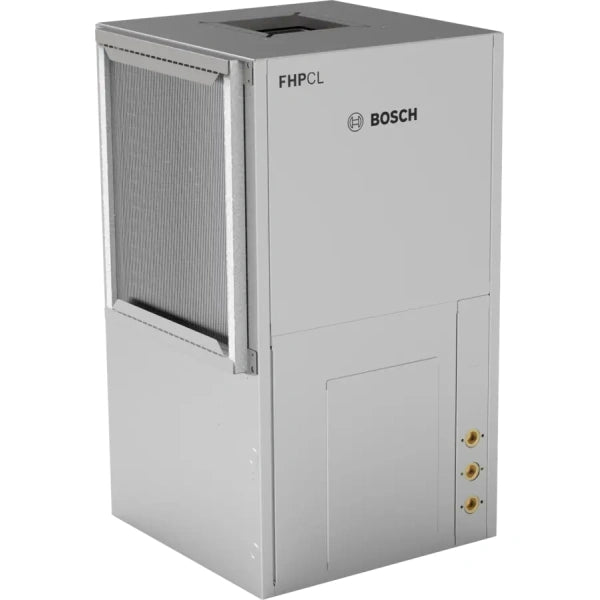

Bosch CL042-1VTC-LRT-PUA Water Source Heat Pump 3.5 Ton (Right Return)

Product Description

The Bosch CL042-1VTC-LRT-PUA is a 3.5 ton vertical water-source heat pump designed for heating and cooling in residential and light commercial settings. It uses R-410A refrigerant and a single-stage scroll compressor, and features a right-hand return air configuration and a slide-out blower assembly for servicing. The heavy-gauge galvanized steel cabinet supports installations in mechanical rooms, closets, and compact indoor spaces and is compatible with closed-loop geothermal, boiler/tower, and ground water systems.

• 3.5 ton capacity (approx. 42,000 BTU/h) with R-410A refrigerant and single-stage scroll compressor.
• Vertical design with right-hand return airflow and slide-out blower assembly for service access.
• Heavy-gauge galvanized steel cabinet; compatible with closed-loop geothermal, boiler/tower water loops, and ground water applications.

Product Highlights

3.5 Ton capacity, R-410A refrigerant, right-hand return, slide-out blower

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: CL042-1VTC-LRT-PUA

Technical Specifications

• Brand: Bosch
• Model Number: CL042-1VTC-LRT-PUA
• Series: CL Series
• Capacity: 3.5 Ton (approx. 42,000 BTU/h)
• Refrigerant: R-410A
• Compressor: Single-stage scroll
• Configuration: Vertical, right-hand return
• Application: Residential and light commercial
• Cabinet: Heavy-gauge galvanized steel
• Service Feature: Slide-out blower assembly
• Compatibility: Closed-loop geothermal systems; boiler/tower water loops; ground water applications
