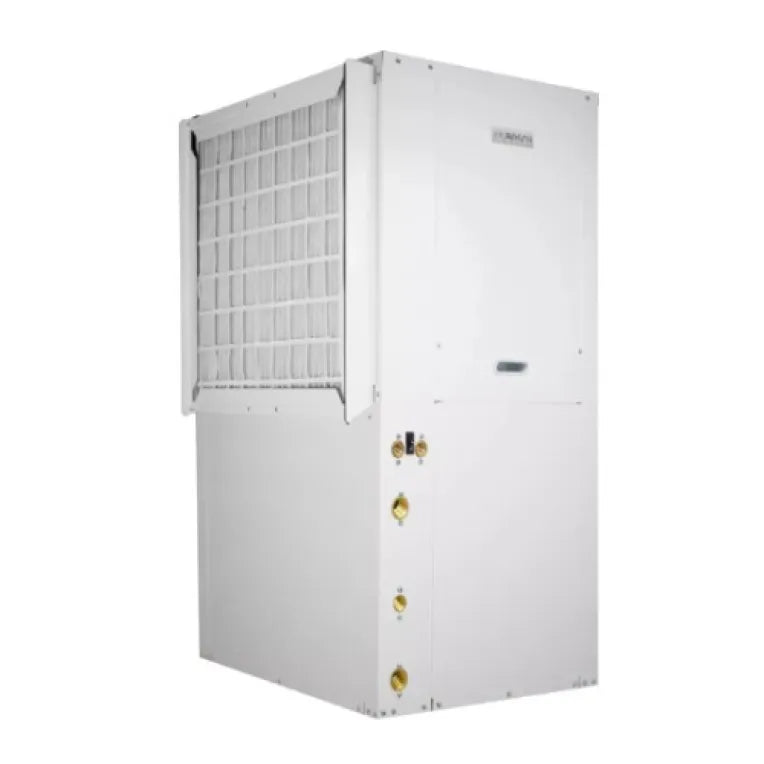

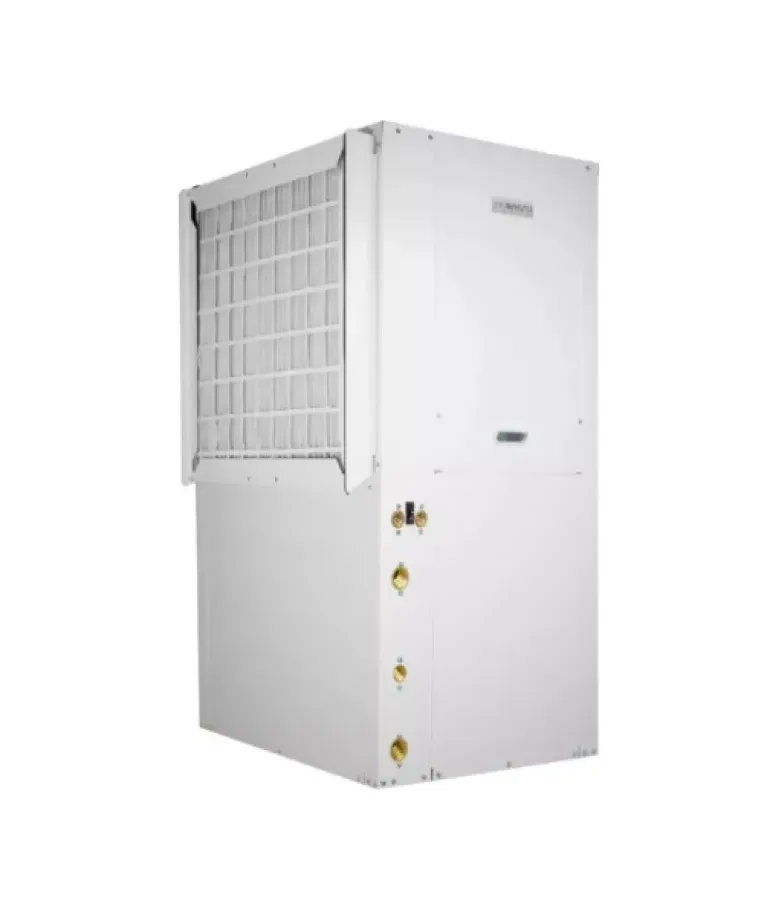

BOSCH CE025-1VTC-FLT WSHP 2T UPFLOW LH CU NO DESUP 208/1

Product Description

The BOSCH CE025-1VTC-FLT is a two-ton water source heat pump designed for upflow configurations. This efficient unit, part of the Greensource Si Series, is suitable for new installations or replacing older systems. It operates at 208/1 voltage and features a two-stage compressor for reliable performance.

• Two-ton capacity water source heat pump
• Configured for upflow installation
• Operates efficiently at 208/1 voltage

Product Highlights

This model is built for energy efficiency and quiet operation.

Product Information

Standard Information

• Country of Origin: USA
• UPC:

Technical Specifications

• Model: CE025-1VTC-FLT
• Type: Water Source Heat Pump
• Capacity: 2 Ton
• Configuration: Upflow
• Voltage: 208/1
• Compressor: Two-stage
• Refrigerant: R410-A
• Motor Type: ECM Constant Speed CFM
• Electrical Voltage: 208-230/60/1
• Fuse: 25A
• Horsepower: 0.33
• Locked Rotor Amperes (LRA): 58.3
• Rated Load Amperes (RLA): 11.7
• COP Rating: 4.1
• Energy Efficiency (EER): 24.8
