Bosch BVA-60WN1-M20 Vs Ahu 2.0 Air Handler

Product Description

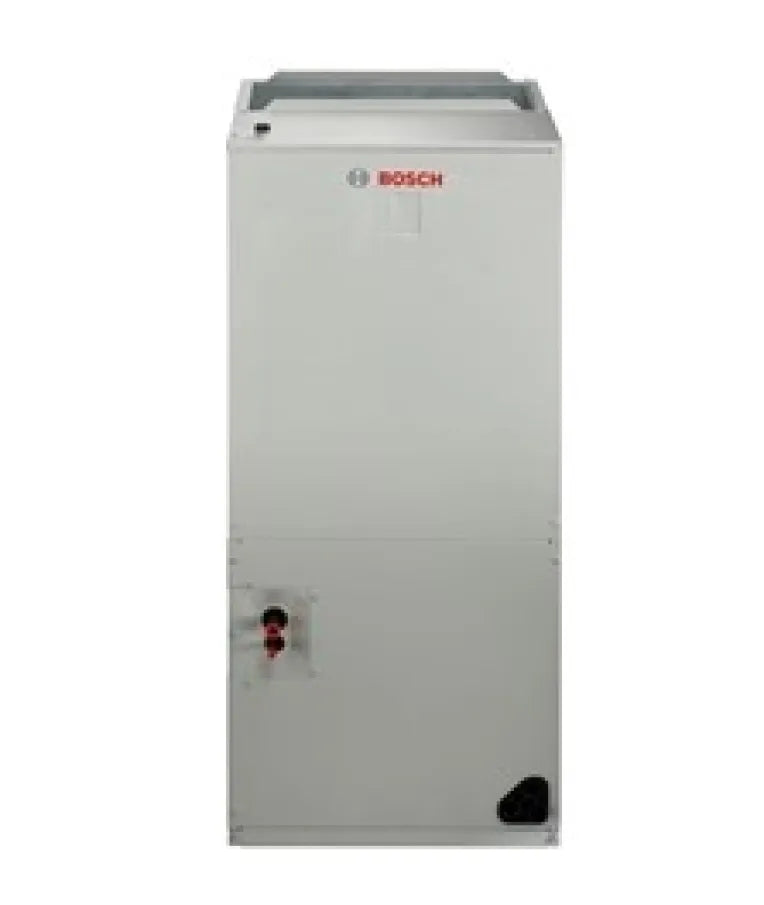

The BOSCH BVA-60WN1-M20 VS AHU 2.0 is an air handler designed for use with the Inverter Ducted Split System (IDS) 2.0. It features foil-faced insulation to decrease energy loss and a galvanized steel cabinet for improved durability. The unit also includes a two-stage ECM motor for enhanced comfort and humidity control.

• Foil Faced Insulation decreases energy loss and eliminates condensation.
• Galvanized Steel Cabinet improves durability and corrosion-resistance.
• Two-Stage ECM Motor enhances comfort, energy savings, and humidity control.

Product Highlights

This air handler maximizes comfort and minimizes energy usage. It is compatible with most standard 24 VAC heat pump thermostats and the Bosch Connected Control (BCC) Thermostat family.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BVA-60WN1-M20
• Country of Origin: CHINA

Technical Specifications

• Model: BVA-60WN1-M20
• Cooling Capacity: 60,400 / 64,800 / 62,900 BTU/hr
• Manufacturer: Bosch Thermotechnology Corp.
• Manufacturer #: 8733952442
• Motor HP: 3/4 HP
• Mounting Type: Horizontal / Vertical
• Series: A Series
• Speeds: 5
• Voltage Rating: 208 / 230 V
• Air Handler Type: Single Piece
• CFM @ 0.5" ESP: 1,700
• CFM High @ 0.3 ESP: 1,700
• Configuration: Multi-Position
• Depth: 24"
• Height: 54-1/2"
• Liquid Conn.: 3/8"
• Max. Fuse Size: 15
• Min. Circuit Amps: 7.5
• Motor Type: ECM
• Nom. CFM: 1,700
• Nom. Tons: 5
• Refrigerant: R-410A
• Suction Fitting: 7/8"
• TXV Included: Yes
• Width: 22"
• Air Flow Direction: Upflow~Downflow~Horizontal~Multi-Position
• BTU Cooling Rating: 60,000 BTU/h
• CFM Airflow: 1,000 CFM~1,100 CFM~1,200 CFM~1,300 CFM~1,400 CFM~1,500 CFM~1,600 CFM~1,700 CFM~1,800 CFM
• Drain Pan Material: Composite / Polymer
• Liquid Line Size: 3/8 in
• Max Breaker Size: 15 A
• Number of Speeds: 5
• Packaged Depth: 27.688 in
• Packaged Height: 60.625 in
• Packaged Width: 24.688 in
• Phase: 1 ph
• Product Family: BVA Series
• Shipping Weight: 194 lbs
• Sound Level: 68 dB(A)
• Suction Line Size: 7/8 in
