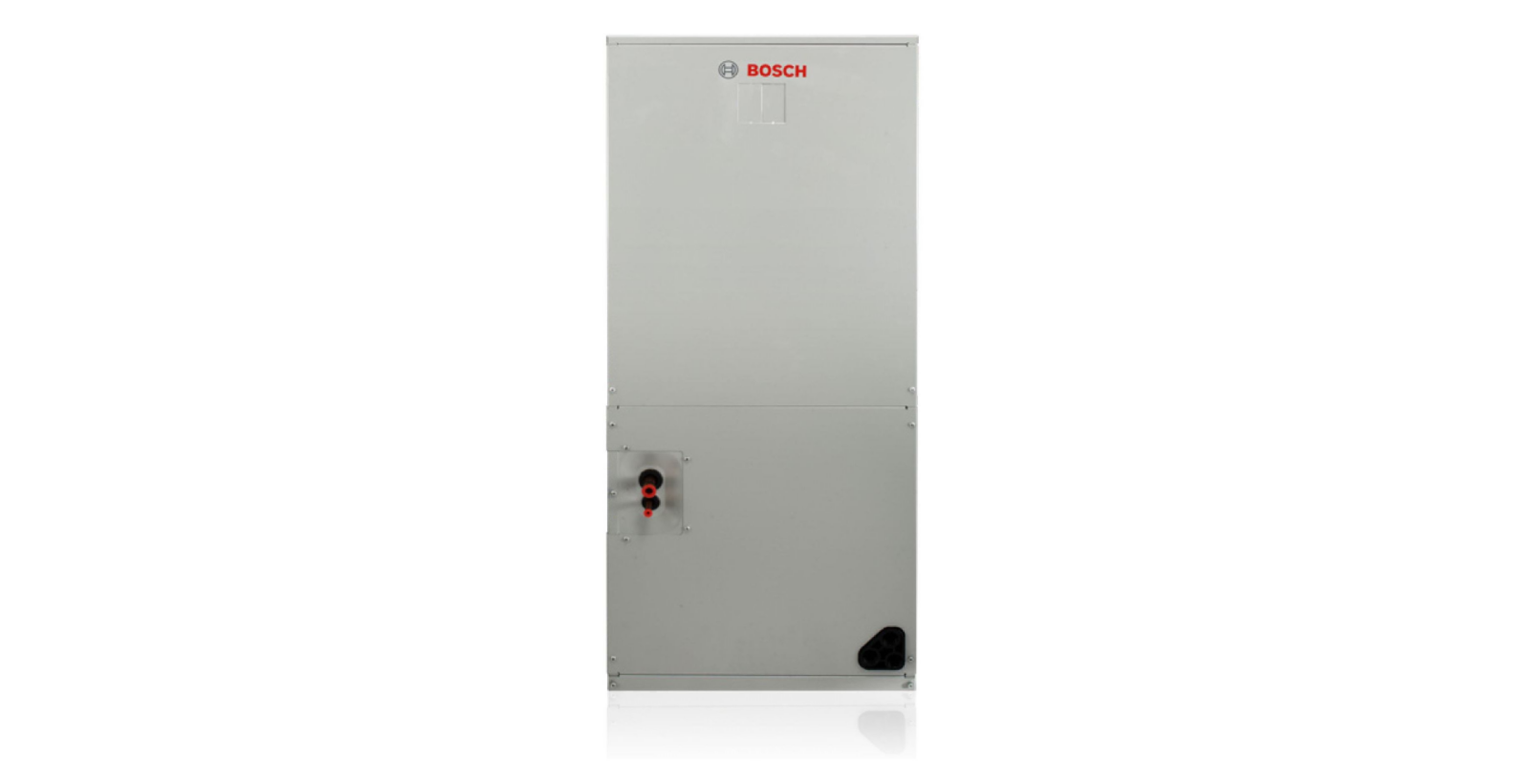

Bosch BVA-60WN1-M15 BVA Series 5 Ton - Vertical - Multispeed - Air Handler

Product Description

The Bosch BVA-60WN1-M15 is a 5-ton vertical multispeed air handler. It is designed for efficient heating and cooling in residential applications. The unit offers premium efficiency with a rating of up to 16 SEER and 9 HSPF, providing significant energy savings.

• All aluminum evaporator coil for corrosion resistance.
• Multi-position installation options for versatile setup.
• Compatible with standard 24 VAC heat pump thermostats.

Product Highlights

This air handler features a factory-installed TXV metering device to optimize performance. It includes options for supplemental electric heat, accommodating up to twenty kW units. The unit's design allows for dual front panel access for easy maintenance.

Product Information

Standard Information

• Brand: Bosch Thermotechnology
• Part Number: BBVA60WN1M15

Technical Specifications

• Cooling Capacity: 5 tons
• Refrigerant: R410A
• Voltage: 208/230VAC
• Phase: 1PH
• Horsepower: 1/2HP
• Frequency: 60HZ
• Mounting: Vertical
• Dimensions: 22 inches (Length) x 24 inches (Width) x 54.5 inches (Height)
• Shipping Weight: 198 lbs
