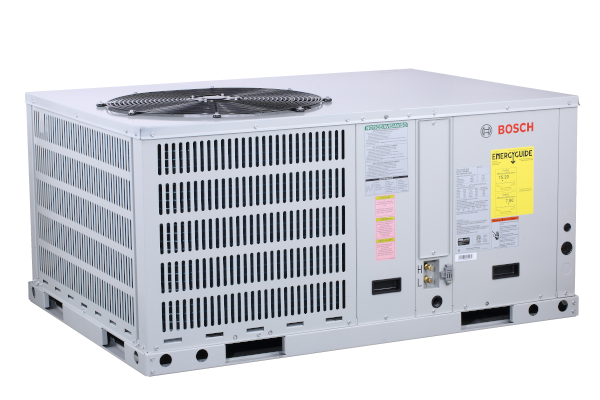

Bosch brca-60hwd1n1-m15-cl Heat Pump 5 Ton 15.2 Seer

Product Description

The BOSCH brca-60hwd1n1-m15-cl is a 5-ton inverter ducted packaged heat pump condensing unit designed for whole-home or light-commercial ducted HVAC systems requiring both cooling and heating from a single outdoor unit. Rated at 57,000 BTU cooling capacity with a 15.2 SEER efficiency rating, it uses inverter-driven compressor technology to modulate output and maintain comfort without the constant on-off cycling of fixed-speed systems. Operating on single-phase 208-230 volt AC power at 60 Hz, this unit is intended for installation by a licensed HVAC contractor in split or packaged ducted system configurations.

This unit is suited for residential or light-commercial applications where a self-contained packaged heat pump is preferred over a split-system installation. It provides both cooling and heating modes from one outdoor cabinet, reducing the need for separate heating equipment. The liquid line connection is sized at 3/8 inch, which determines the refrigerant line sizing required during installation planning. With a depth of 59.25 inches, site clearance and pad placement must account for the unit footprint before installation begins.

Key Features

• Inverter-driven compressor for variable-capacity operation in both cooling and heating modes
• 57,000 BTU nominal cooling capacity at 5-ton rating
• 15.2 SEER efficiency rating for energy-conscious system design
• Single-phase 208-230V AC, 60 Hz electrical compatibility for standard residential and light-commercial service
• Integrated cooling and heating operation eliminates need for a separate furnace or air handler heat source
• 3/8-inch liquid line connection for refrigerant circuit sizing reference

Compatibility

Designed as an OEM packaged heat pump unit for ducted residential or light-commercial HVAC systems requiring single-phase 208-230V power and 5-ton nominal capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Always disconnect and lock out electrical power before any service or wiring work on the unit. The refrigerant circuit must be handled by an EPA Section 608 certified technician. Verify pad dimensions and service clearances against the unit depth of 59.25 inches before setting the cabinet.

Technical Specifications

• Nominal Capacity: 5 ton
• Cooling Capacity: 57,000 BTU/h
• SEER: 15.2
• Voltage: 208-230V AC
• Amperage: 60 amps
• Phase: Single-phase
• Frequency: 60 Hz
• Operation Mode: Cooling and Heating
• Liquid Line Size: 3/8 inch
• Depth: 59.25 inches

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: brca-60hwd1n1-m15-cl
